• Grasp left side of ice damper and apply
pressure against the right-hand ice damper
mounting bracket.
• Pull forward on the ice damper until the left-
hand mounting pin disengages.
Installation
• Grasp the right side of ice damper and place
left hand pin in the mounting bracket.
• While applying pressure against the left-hand
mounting bracket push the damper until the
right-hand mounting pin engages.

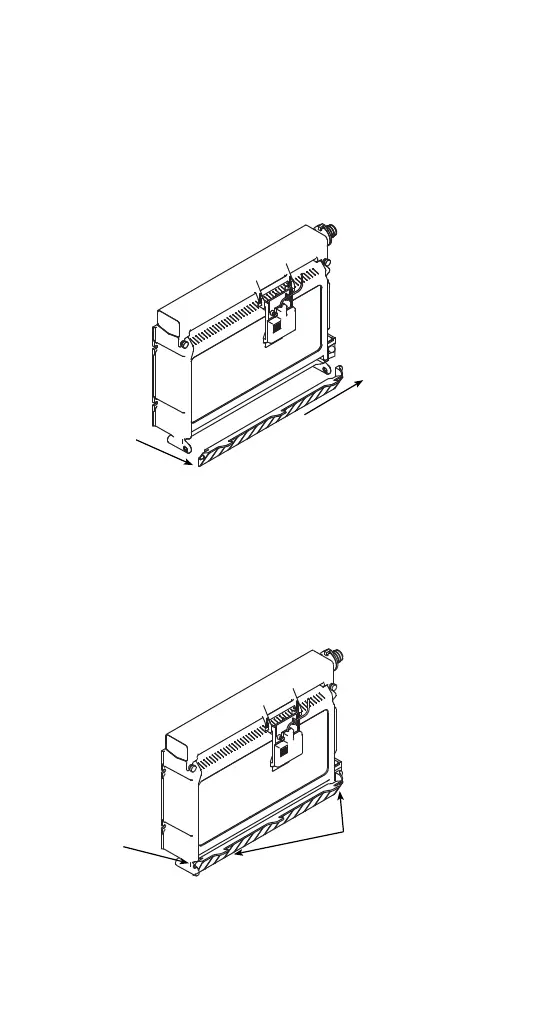

SV1731F
STEP 1
STEP 2
SV1731G
STEP 2
STEP 1
