Assembly (Continued)
• Your Mantis tiller will look like
this when lower handle assembly
and kickstand is complete.
KICKSTAND ASSEMBLY (MODEL 7924 ONLY)
2 3
IMPORTANT NOTE:
Be sure you have proper throttle movements and that
the throttle cable is not wrapped or twisted around the
handle bar. Hold down the lockout lever, fully squeeze
the throttle trigger and let go. The throttle triangle must
click in both directions. If there is any doubt, remove
air lter and visually check that the throttle triangle hits
both the idle screw and the full open stop. THIS MUST
BE DONE BEFORE STARTING THE ENGINE.
IMPORTANT NOTE:
Before you use your MANTIS Tiller, read the
Safety Rules & Warnings on pages 3-5
IMPORTANT NOTE:
Make sure you have installed the handles properly.
When you stand behind your tiller, holding the handles,
the fender warning label should face you.
Improper Throttle installation can cause tines to rotate unexpectedly.
79247920

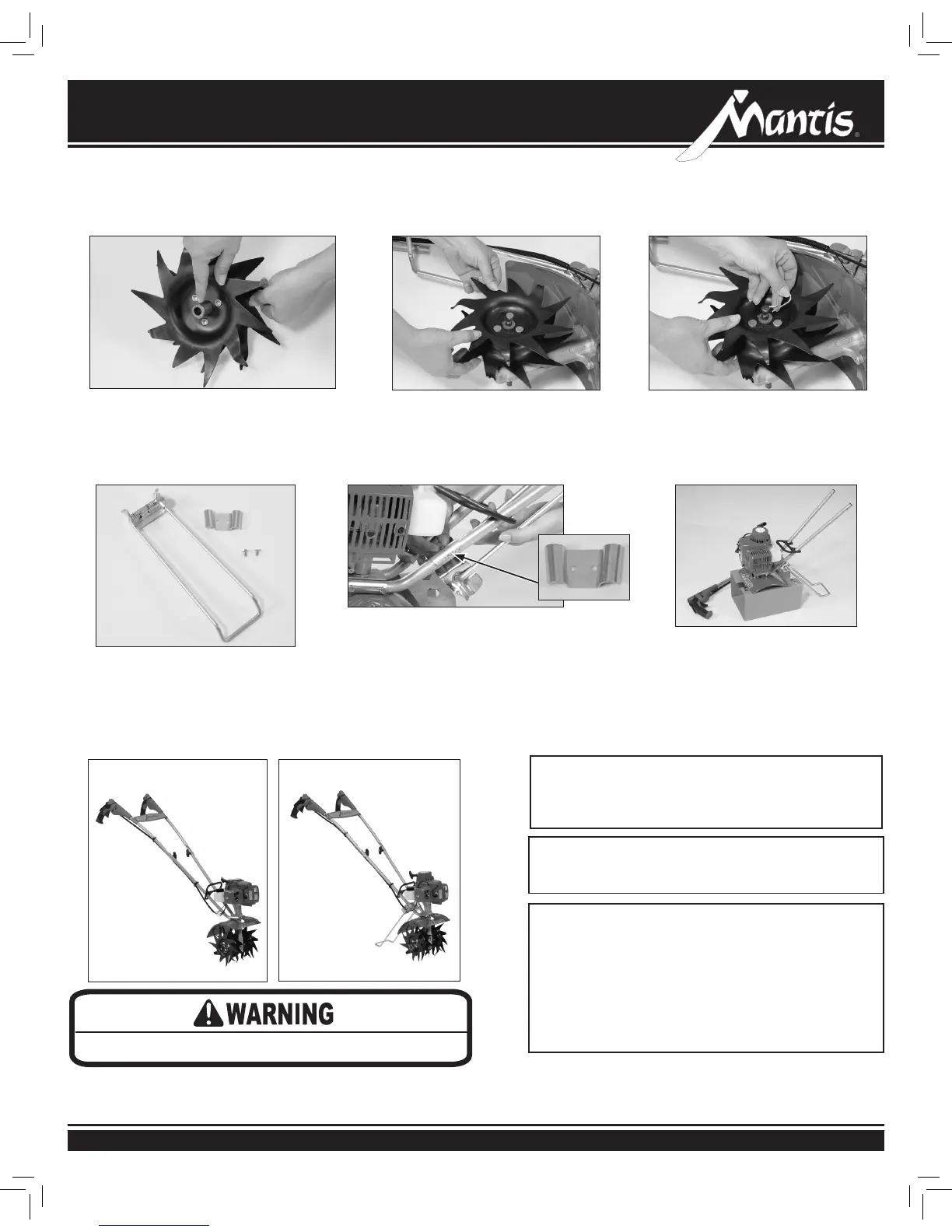

TINE ASSEMBLY (Continued)
• Attach the Tine so that the circular hole
slides onto the axle rst.
• When the axle protrudes from the
other side it will line up perfectly
with the “D” shaped hole.
• Slide a retaining pin (T41) through
the hole in the axle to secure the
Tine.
• Repeat steps for the other side.
4 5 6
• Position the kickstand brace just above the
bend of the lower handles.
• Position the kickstand under the lower
handles, line up the holes and thread the
kickstand brace bolts into the kickstand.
•Tighten with the 3/8” wrench.
1
430088 Mantis 2-Cycle Tiller Color Cover.indd 9 7/10/14 7:49 AM
