Mantis 7920 User Manual

24
Operator’s Manual
99922200869 - 16 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Fuel System S/N: E14112098001 - E14112999999
G14
G3
G2
G6
G5
G4
G9
G10
G11
G8
G7
G12
G13
G15
G1
G16
99922200682 - 8 - REVISED 11/19/13
Table of Contents Part Number Index
SV-5Ci/2 Engine Fuel System S/N: E14912023521 - E14912999999
H14
H3
H2
H6
H5
H4
H9
H10
H11
H8
H7
H12
H13
H1
Gasket Kit
H17
Key Part No. Qty. Description
G1 P021034480 1 Cap Asy - Black Includes Item 2-3
G2 V107000150 1 Gasket, Cap
G3 13105156030 1 Connector, Cap
G4 A356000031 1 Vent, Fuel Tank
G5 V471001200 1 Pipe - 3 X 5 X 70 -- Black
1
G6 13201006460 1 Pipe - 3 X 6 X 110 -- Clear
2
G7 V471003720 1 Pipe - 3 X 5 X 70 -- Black
3
G8 V490001240 2 Clip - 6
G9 V186000520 1 Connector, Fuel Pipe
G10 13120507320 1 Filter, Fuel
G11 V471003730 1 Pipe - 3X5x140 -- Black
1
G12 13211546730 1 Grommet
G13 90027505015 2 Screw - 5X16 -- Tapping
G14 A350000300 1 Fuel tank Asy Includes Item 15
G15 13104528230 21 Sleeve
G16 P021009110 1 Gasket Kit
Key Part No. Qty. Description
H1 P021034480 1 Cap Asy - Black Includes Items 2-3
H2 V107000150 1 Gasket, Cap
H3 13105156030 1 Connector, Cap
H4 13011100530 2 Clip - 5.5
H5 13130056431 1 Vent, Fuel Tank
H6 V471001200 1 Pipe - 3 X 5 X 70 -- Black
1
H7 13201049030 1 Pipe - 3 X 6 X 50 -- Clear
2
H8 V471003720 1 Pipe - 3 X 5 X 70 -- Black
3
H9 V490001240 2 Clip - 6
H10 V186000520 1 Connector, Fuel Pipe
H11 13120507320 1 Filter, Fuel
H12 V471003730 1 Pipe - 3 X 5 X 140 -- Black
1
H13 13211546730 1 Grommet
H14 90027505015 2 Screw - 5 X 16 -- Tapping
H15 A350001630 1 Fuel Tank Asy Includes Item 16
H16 13104528230 2 Sleeve
H17 P021009110 1 Gasket Kit

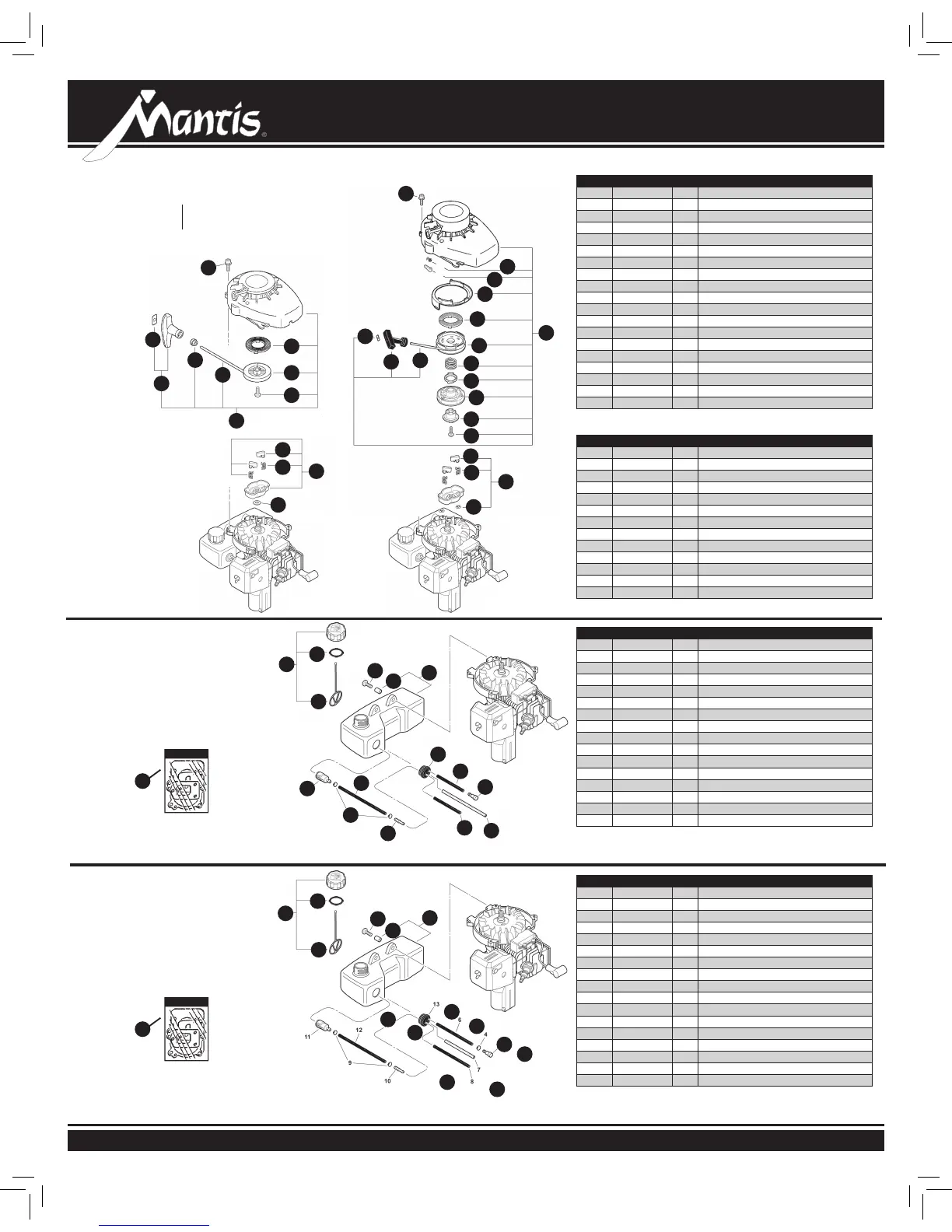

Fuel System Model 7920
Explosion G
Fuel System Model 7924
Explosion H
1
RePower Bulk Option: 90014
2
RePower Bulk Option: 90017
3
RePower Bulk Option: N/A
1
RePower Bulk Option: 90014
2
RePower Bulk Option: 90017
3
RePower Bulk Option: N/A
Gasket Kit
Key Part No. Qty. Description
F20 A051000950 4 Starter Asy Includes Items 2-8
F21 17722042030 1 Spring, Rewind
F22 17721544430 1 Reel, Rope
F23 17723644330 1 Screw
F24 17722605530 1 Rope, Starter - 3 X 890
1
F25 17722742030 1 Guide, Rope
F26 17722811120 1 Starter Grip Asy Includes Item 8
F27 17724611120 1 Retainer, Rope
F28 90023804016 4 Screw - 4 X 16
F29 17720212220 1 Starter Pawl Assy Includes Items 11-12
F30 17721844330 2 Pawl, Starter
F31 17723412220 2 Spring, Return
F32 90060500008 1 Lockwasher - 8
Model 7920
Key Part No. Qty. Description
F1 A051000640 1 Starter Asy Includes Items 2-8
F2 P022004610 2 Spring, Pawl Return
F3 P022004620 2 Pawl, Starter
F4 P022006500 1 Case, Starter
F5 P022004680 1 Spring, Rewind
F6 P022004690 1 Reel, Rope
F7 17724611120 1 Retainer, Rope
F8 P022004990 1 Grip, Starter
F9 P022004600 1 Rope, Starter - 3 X 800
1
F10 P022004660 1 Spring, Return
F11 P022004670 1 Pawl
F12 P022004700 1 Spring Asy
F13 P022004640 1 Plate, Cam
F14 P022004630 1 Screw
F15 A052000150 1 Starter Pawl Asy Includes Items 16-18
F16 P022004740 2 Pawl, Starter
F17 17723412220 2 Spring, Return
F18 P022002100 2 Ring, Retaining - 4
F19 90016304016 4 Screw - 4 X 16
Model 7924
99922200869 - 8 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Engine Cover, Fancase, Starter
F29
F32
F30
F31
99922200869 - 8 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Engine Cover, Fancase, Starter
F28
F27
F25
F26
F24
F23
F22
F21
F20
99922200869 - 8 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Engine Cover, Fancase, Starter
Model 7920
99922200869 - 8 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Engine Cover, Fancase, Starter
F9
F8
F6
F7
F5
F10
F13
F14
F16
F17
F18
F15
F11
F12
F2
F19
F1
F3
F4
Model 7924
Engine Starter
Explosion F
Parts Assemblies
Model 7924
SV-5CI/2 Engine
Model 7920
SV-5C/2 Engine
1
RePower BULK OPTION: 99944440000
430088 Mantis 2-Cycle Tiller Color Cover.indd 24 7/10/14 7:49 AM
