Mantis 7920 User Manual

22
Operator’s Manual
99922200869 - 4 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Carburetor -- C1U-K82
23
A34
A2
A3
A4
A35
A36
A24
A25
A22
A26
A27
A28
A29
A30
A6
A5
A8
A7
A9
A10
A12
A13
A11
A37
A38
A32
A33
A18
A21
A20
A19
A17
A16
A15
A23
A31
A14
A1

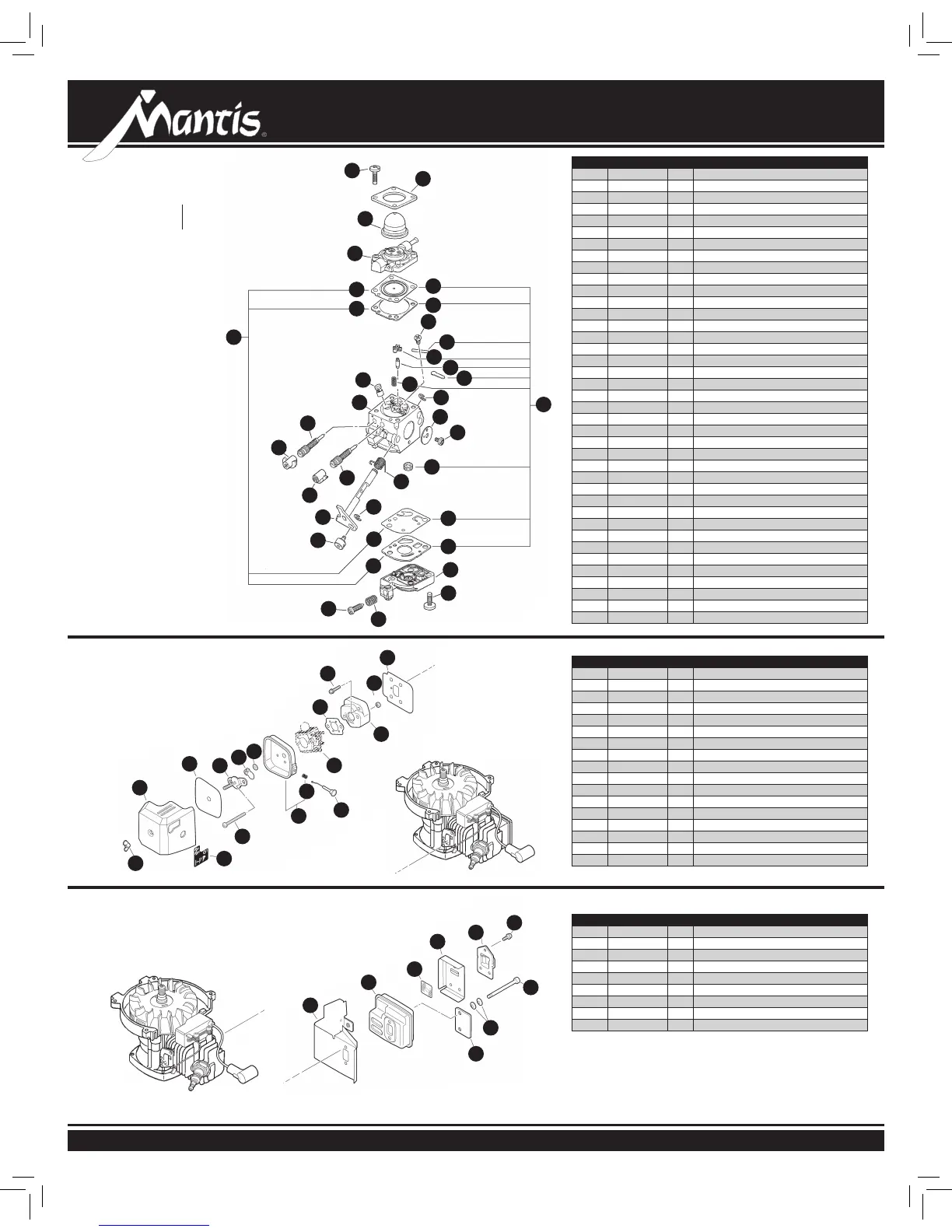

Carburetor - C1U-K82
Explosion A
99922200869 - 20 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Intake
99922200869 - 20 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Intake
B1
B3
B5
B2
B4
B6
B7
B8
B9
B11
B10
B12
B13
B16
B14
B15
B17
Key Part No. Qty. Description
A021001090 1 Carburetor - C1U-K82
A1 P005000980 4 Screw, Purge Bulb Retainer
A2 P005000620 1 Retainer, Purge Bulb
A3 12538108660 1 Bulb, Purge
A4 P005000970 1 Base, Purge
A5 ------------------ 1 Body, Carburetor / Not Available Separately
A6 12537613120 1 Nozzle, Check Valve
A7 12532939030 1 Cap, Limiter
A8 12532013310 1 Needle - High Speed
A9 12532909860 1 Cap, Limiter
A10 12531813120 1 Needle - Low Speed
A11 12537242030 1 Swivel
A12 P005001070 1 Shaft, Throttle
A13 12532713930 1 Ring, Retaining
A14 12531342030 1 Spring, Return
A15 12531413930 1 Screw,Valve
A16 12531649030 1 Valve, Throttle
A17 12532715130 1 Ring, Retaining
A18 12532412820 1 Base, Purge
A19 12533406960 1 Screw, Idle Adjust
A20 12533306960 1 Spring, Idle Adjust
A21 12531012820 2 Screw, Pump Cover
A22 12533942030 1 Screw, Metering Lever Pin
A23 12530013120 1 Repair Kit / Includes Items 24-33
A24 ------------------- 1 Diaphragm, Metering
A25 ------------------- 1 Gasket, Metering Diaphragm
A26 ------------------- 1 Pin, Metering Lever
A27 ------------------- 1 Lever, Metering
A28 ------------------- 1 Valve, Inlet Needle
A29 ------------------- 1 Plug, Welch
A30 ------------------- 1 Spring, Metering Lever
A31 ------------------- 1 Strainer
A32 ------------------- 1 Diaphragm, Pump
A33 ------------------- 1 Gasket, Pump
A34 12530313120 1
Diaphragm/Gasket Kit / Includes Items 35-38
A35 ------------------- 1 Diaphragm, Metering
A36 ------------------- 1 Gasket, Metering
A37 ------------------- 1 Diaphragm, Pump
A38 ------------------- 1 Gasket, Pump
Key Part No. Qty. Description
B1 90052800005 1 Wingnut - 6
B2 13032611522 1 Cover, Air Filter
B3 89012147530 1 Label - Choke
B4 13031004560 1 Filter, Air
B5 90024205057 2 Screw - 5X57
B6 13041005360 1 Plate, Prevent
B7 17851504560 1 Shutter, Choke
B8 17851600830 1 Washer - 5
B9 13030104560 1 Case, Air Filter Includes Item 10
B10 17881005230 1 Grommet
B11 17851004560 1 Rod, Choke
B12 ------------------ 1 Carburetor
1
B13 13001642031 1 Gasket, Intake
B14 90023805020 2 Screw - 5X20
B15 90050000005 2 Nut - 5
B16 13001742031 1 Insulator, Intake
B17 V103000490 1 Shield, Intake
Key Part No. Qty. Description
C1 9136704012 3 Screw - 4X12
C2 A313000700 1 Guide, Exhaust
C3 V104000072 1 Gasket, Exhaust/Included In Gasket Kit
C4 14586240630 1 Screen, Spark Arrester
C5 90010505055 2 Screw - 5X55
C6 V347000000 1 Washer - Conical
C7 V150000371 1 Plate
C8 A300000521 1 Mufer
C9 V104000590 1 Shield Exhaust/Included In Gasket Kit
Air Cleaner
Explosion B
Muffler
Explosion C
99922200869 - 12 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Exhaust
99922200869 - 12 - REVISED 10/16/13
Table of Contents Part Number Index
SV-5C/2 Engine Exhaust
C9
C8
C4
C3
C2
C1
C5
C6
C7
1
See Carburetor Diagram For Details
Parts Assemblies
Model 7924
SV-5CI/2 Engine
Model 7920
SV-5C/2 Engine
430088 Mantis 2-Cycle Tiller Color Cover.indd 22 7/10/14 7:49 AM
