Manusa Visio C2H - Page 34

DMJOIC201EN - v2
VISIO C2H OPERATOR - INSTALLATION MANUAL
34
Tools
Drill bit no. 10,5
Fig.
11.5
Fig.
11.4
i

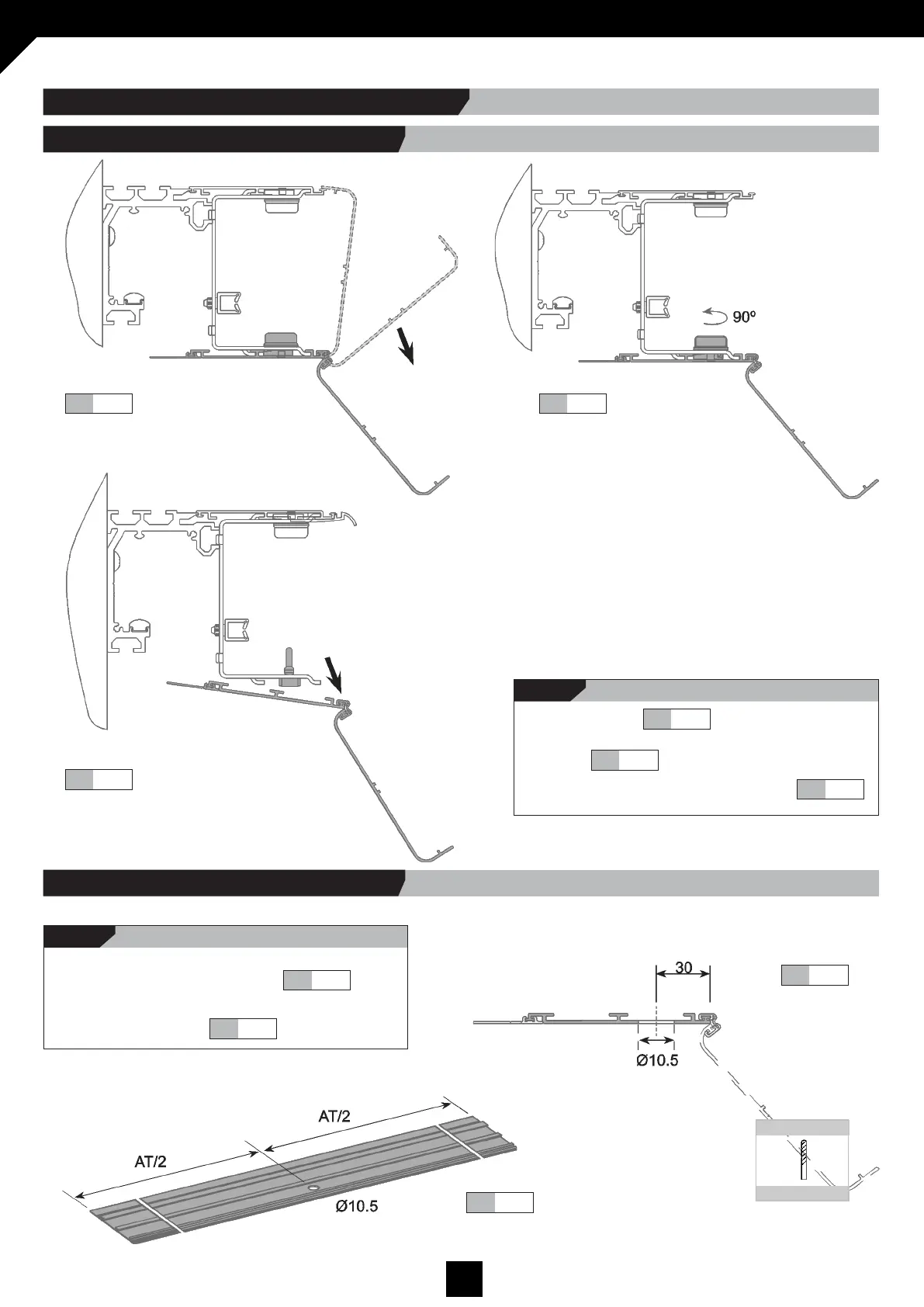

Drill a hole size Ø10.5 at a distance 30mm from the end of the
bottom cover as shown in the diagram.
Make the hole in the centre of the bottom cover AT/2
as shown in the diagram.
Fig.
11.5
Fig.
11.4
11.2 DRILL THE BOTTOM COVER.
Fig.
11.3
i
Open front cover.
Release the bracket attachments for the bottom cover.
Remove the bottom cover and the front cover.
Fig.
11.3
Fig.
11.2
Fig.
11.1
Fig.
11.2
Fig.
11.1
11.1 REMOVE FRONT AND BOTTOM COVER
11. MANUAL UNLOCK ASSEMBLY
