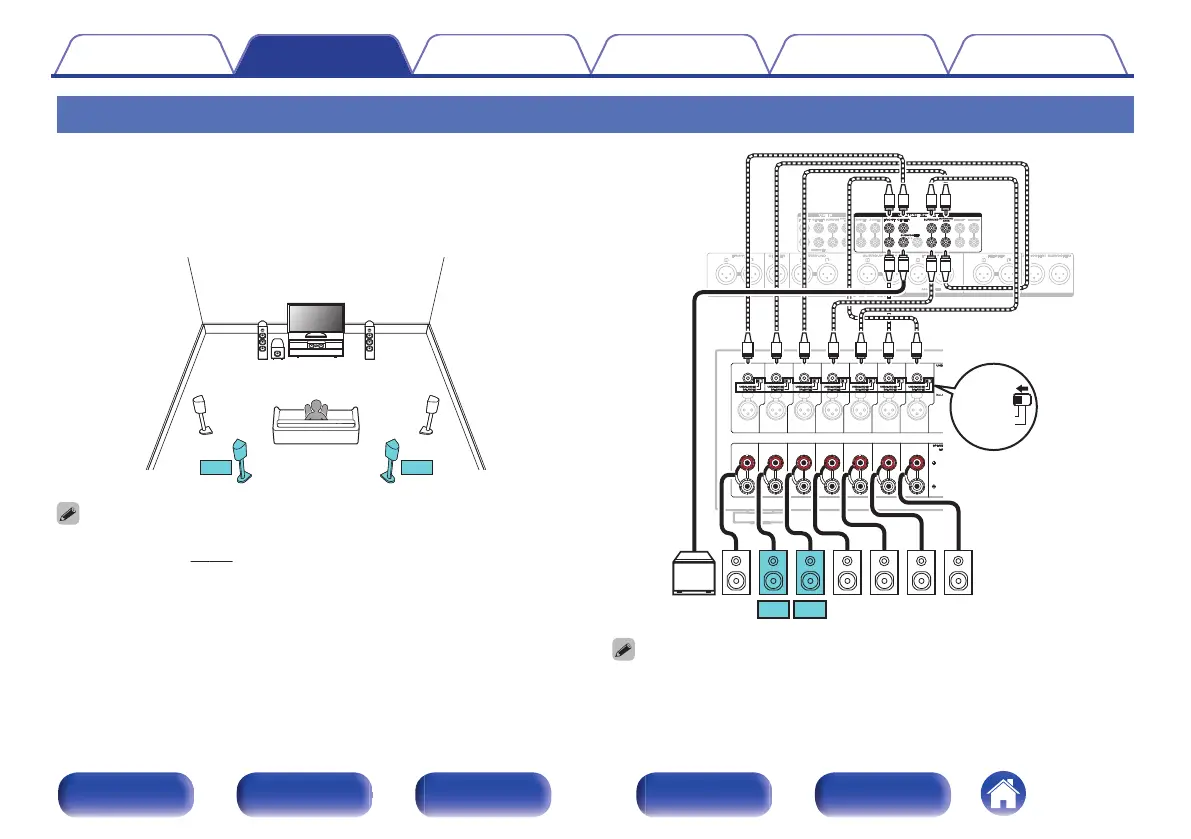

Connecting 7.1-channel speakers
o
Example connections when using surround
back speakers
This 7.1-channel surround system is the same as a basic 5.1-channel
system but with surround back speakers.
.
FL
SW
C
SL
FR
SR
SBL SBR
0
Set “Floor” - “Layout” to “5ch & SB” in the menu when connecting in this
configuration. (v p. 218)
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
SW SR SL FR FLC
SBLSBR
【
MM8077
】
BALANCED
BALANCED
UNBALANCED
UNBALANCED
0
When using a single surround back speaker, connect it to the SURROUND BACK
L terminal.
