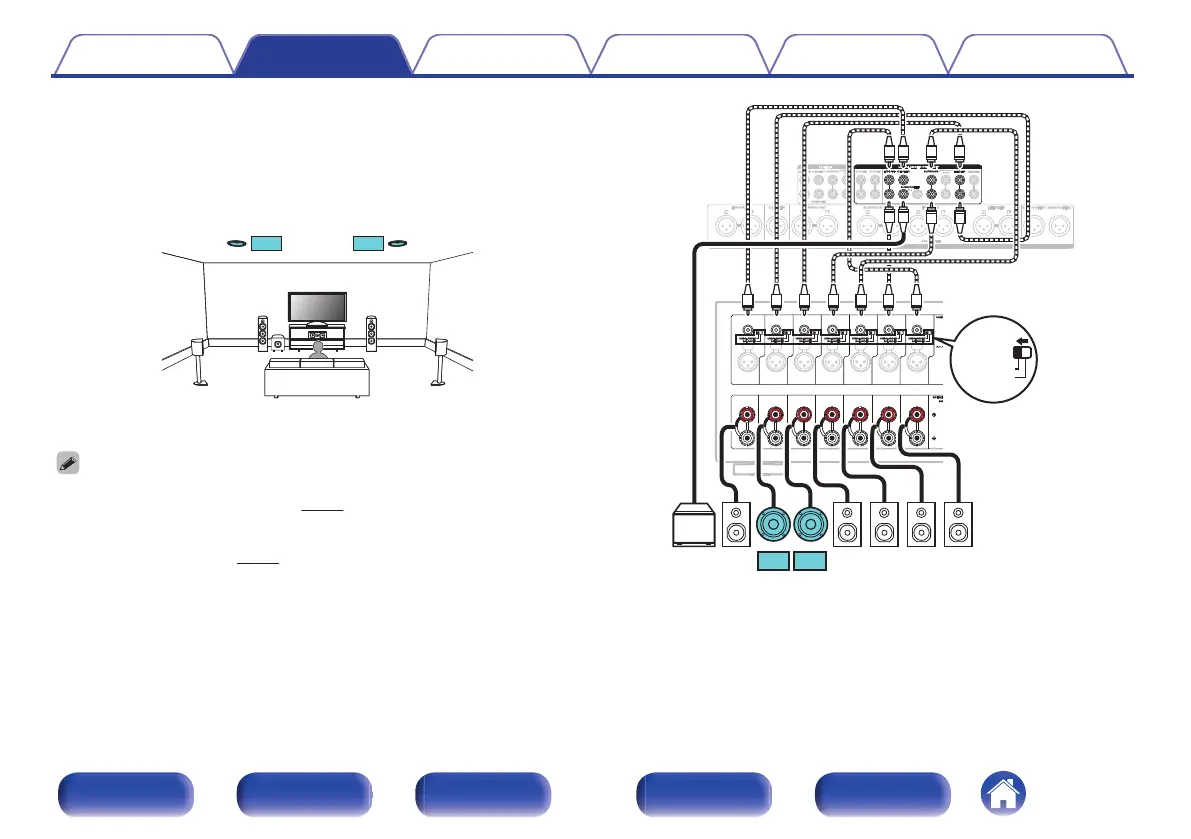

Example connections when using ceiling
speakers
This 7.1-channel surround system is the same as a basic 5.1-channel
system but with ceiling speakers.
.
C
FL FR
SW
SL SR
TML TMR
0
Set “Floor” - “Layout” to “5ch” and “Height Sp” to “2ch” in the menu when
connecting in this configuration. (v p. 218)
0
The top front or top rear speakers can be connected instead of the top middle
speakers. In this case, set the ceiling speakers to be connected under “Height” -
“Layout” in the menu. (v p. 220)
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
SW
SR SL FR FLC
TMLTMR
【
MM8077
】
BALANCED
BALANCED
UNBALANCED
UNBALANCED
