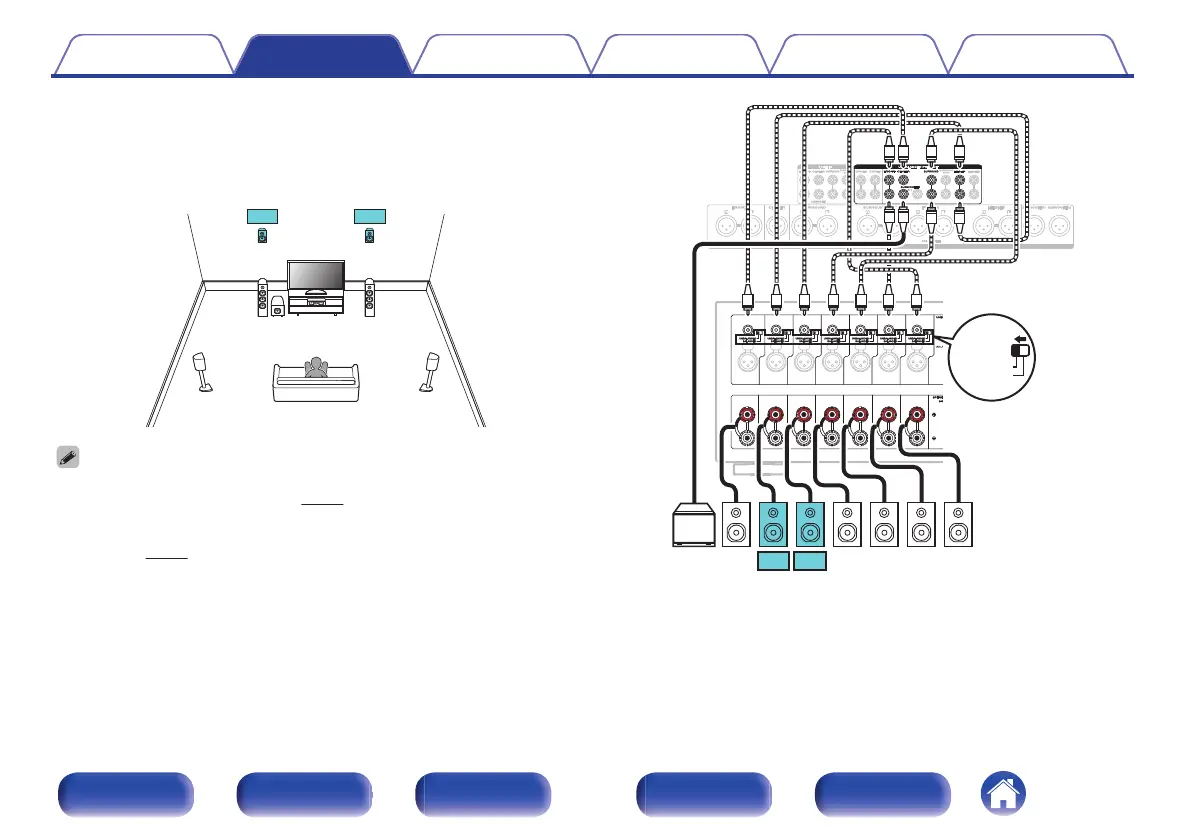

Example connections when using height
speakers
This 7.1-channel surround system is the same as a basic 5.1-channel
system but with front height speakers.
.
FL
SW
C
SL
FR
SR
FHL FHR
0
Set “Floor” - “Layout” to “5ch” and “Height Sp” to “2ch” in the menu when
connecting in this configuration. (v p. 218)
0
The rear height speakers can be connected instead of the front height speakers. In
this case, set the height speakers to be connected under “Height” - “Layout” in the
menu. (v p. 220)
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
SW SR SL FR FLC
FHLFHR
【
MM8077
】
BALANCED
BALANCED
UNBALANCED
UNBALANCED
