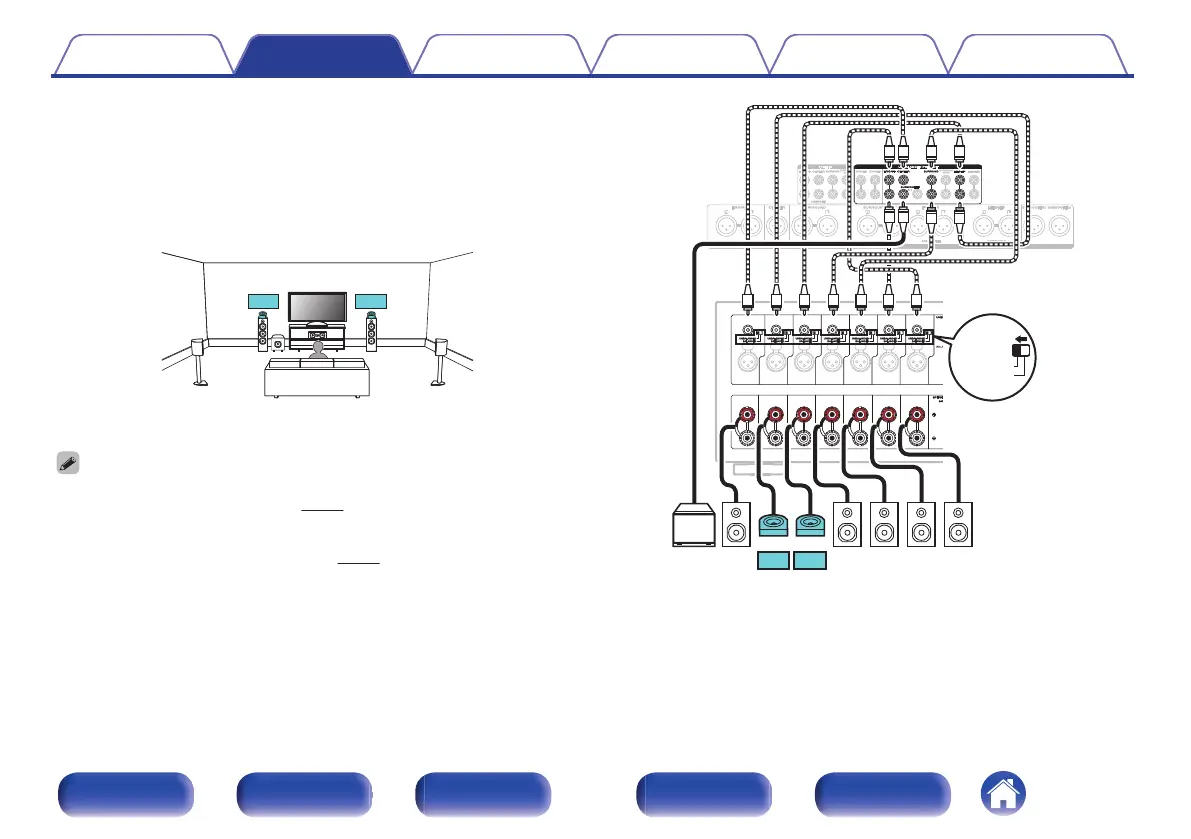

Example connections when using Dolby
Atmos Enabled speakers
This 7.1-channel surround system is the same as a basic 5.1-channel
system but with front Dolby speakers.
.
C
FL
FR
SW
SL SR
FDL FDR
0
Set “Floor” - “Layout” to “5ch” and “Dolby Sp” to “2ch” in the menu when
connecting in this configuration. (v p. 218)
0
The surround Dolby speakers can be connected instead of the front Dolby
speakers. In this case, set the Dolby Atmos Enabled speakers to be connected
under “Height” - “Layout” in the menu. (v p. 220)
.
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL1
(FL)
CHANNEL2
(FR)
CHANNEL3
(SL)
CHANNEL4
(SR)
CHANNEL7
(C)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
CHANNEL5
(SBL)
CHANNEL6
(SBR)
SW SR SL FR FLC
FDLFDR
【
MM8077
】
BALANCED
BALANCED
UNBALANCED
UNBALANCED
