FM TUNER SECTION
Frequency Range ................................. 76.0 - 90.0 MHz [ /F ]
........................... 87.5 - 108.0 MHz [ /K/N ]
...............................87.5 - 107.9 MHz [ /U ]
Usable Sensitivity .................................. IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio ..........................Mono/Stereo 75/70 dB
Distortion ........................................... Mono/Stereo 0.2/0.3 %
HD Radio ............................................................ 0.02 % [ /U ]
Stereo Separation ............................................... 1 kHz 45 dB
HD Radio ....................................................1 kHz 85 dB [ /U ]
Alternate Channel Selectivity ....... ± 300 kHz 60 dB [ /F/K/N ]
..............± 400 kHz 60 dB [ /U ]
Image Rejection ................................98 MHz 70 dB [ /F/K/N ]
................................... 98.1 MHz 70 dB [ /U ]
Tuner Output Level ...................1 kHz, ± 75 kHz Dev 800 mV
AM TUNER SECTION
Frequency Range ........................... 531 - 1602 kHz [ /F/K/N ]
..................................530 - 1710 kHz [ /U ]
Signal to Noise Ratio .................................................... 50 dB
Usable Sensitivity ............................... Loop 400 µV [ /F/K/N ]
......................................Loop 500 µV [ /U ]
Distortion ........................................ 400Hz, 30 % Mod. 0.5 %
Selectivity ...................................................... ± 20 kHz 70 dB
HDMI SECTION
Version ......................................................... 1.3a [INPUT]
..................................................... 1.3a [OUTPUT]
AUDIO SECTION
Input Sensitivity/Impedance
(Unbalanced) .....................................200 mV/ 47 k ohms
(Balanced) .........................................400 mV/ 30 k ohms
Output Level/Impedance
(Unbalanced) .............................................1 V/ 470 ohms
(Balanced) ................................................ 2 V/ 470 ohms
Signal to Noise Ratio
Analog Input / Pure Direct ..................................... 105 dB
Frequency Response
Analog Input / Pure Direct ........... 8 Hz - 100 kHz (± 3 dB)
Digital Input / 96 kHz PCM ............ 8 Hz - 45 kHz (± 3 dB)
VIDEO SECTION
Television Format...................................................NTSC/PAL
Input Level/Impedance ..................................1 Vp-p/75 ohms
Output Level/Impedance ................................1 Vp-p/75 ohms
Video Frequency Response .............. 5 Hz to 8 MHz (- 1 dB)
Video Frequency (Component)....... 5 Hz to 100 MHz (- 3 dB)
S/N ................................................................................ 60 dB
GENERAL
Power Requirement ......................... AC 100 V 50/60 Hz [ /F ]
.........................AC 220 V 50/60 Hz [ /K ]
.........................AC 230 V 50/60 Hz [ /N ]
..............................AC 120 V 60 Hz [ /U ]
Power Consumption .......................................................85 W
Standby Power Consumption .........................(Normal) 1.0 W
..................... (Economy) 0.7 W
Weight ....................................................................... 11.6 kg
ACCESSORIES
Remote Controller RC2001 ..................................................1
Remote Controller RC101 ....................................................1
Microphone ...........................................................................1
AAA-size alkaline batteries ...................................................4
AAA-size dry batteries ..........................................................2
FM Antenna ...........................................................1 [ /F/K/N ]
FM Feeder Antenna ..................................................... 1 [ /U ]
FM Antenna Converter ................................................ 1 [ /U ]
AM Loop Antenna ..................................................1 [ /F/K/N ]
AM Loop Antenna for HD Radio .................................. 1 [ /U ]
AC cable ...............................................................................1
USB cable .............................................................................1
AV8003 User Guide ..............................................................1
AV8003 NETWORK User Guide ..........................................1
Wizz.it3 User Guide ..................................................1 [ /N/U ]
1. TECHNICAL SPECIFICATIONS
DIMENSIONS
CONNECTIONS SETUP
BASIC
OPERATION
ADVANCED
OPERATION
REMOTE
CONTROLLER
TROUBLESHOOTING
NAMES AND
FUNCTION
OTHERS
100
ENGLISH

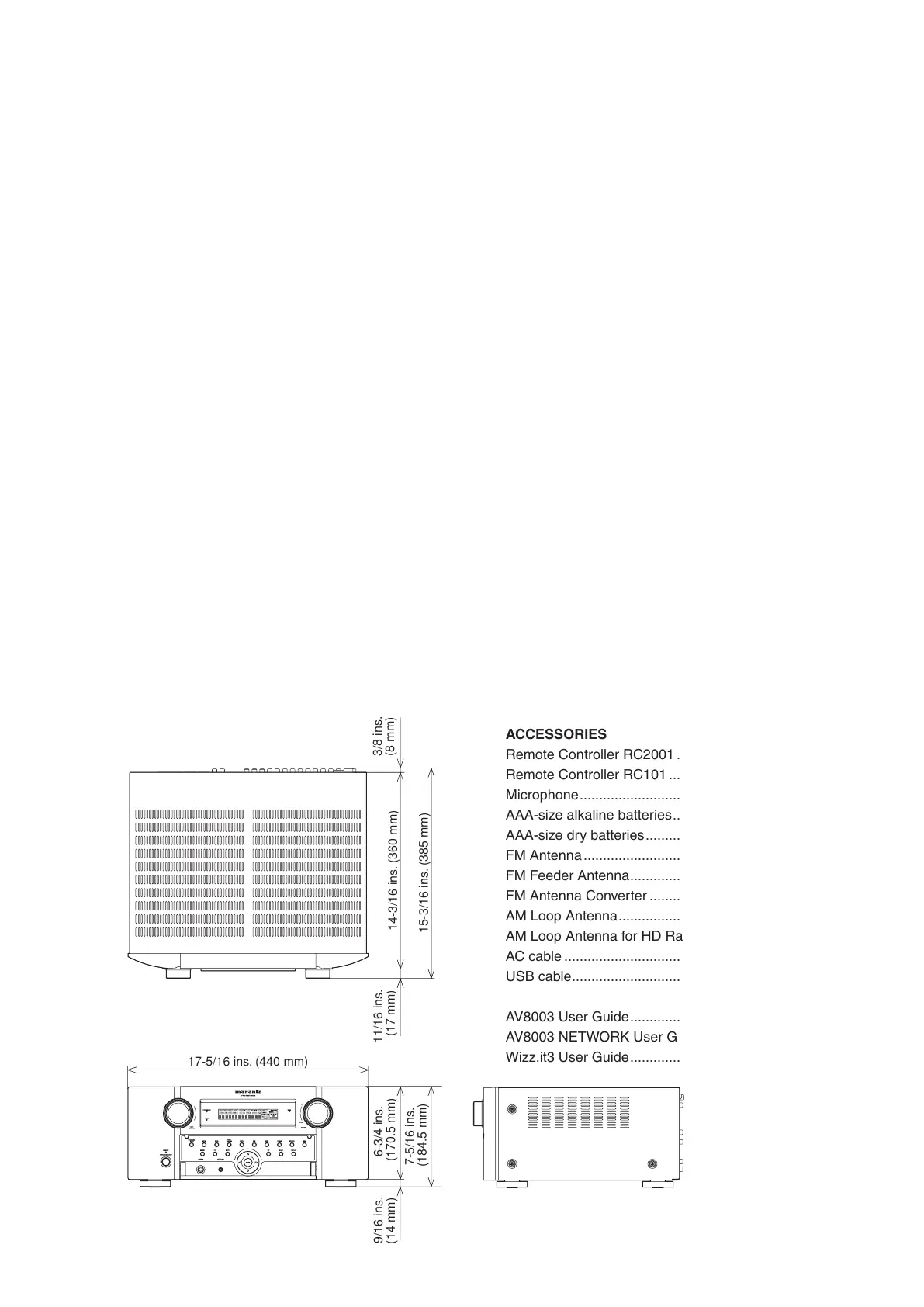

DIMENSIONS
TOP
ZONE
SPEAKER
DISPLAY
INPUT
7.1CH
DIRECT
PURE
PHONES
THX M-DAX
MODE
SURROUND
CLEARMEMORYT-MODEBANDEXITMENUZONE
ENTER
DOWN
VOLUME
UP
INPUT
SELECTOR
AUTO
SETUP MIC
HDMI
M-DAX
PURE DIRECT
POWER ON/STANDBY
STANDBY
AV PRE TUNER AV8003
7-5/16 ins.
(184.5 mm)
9/16 ins.
(14 mm)
6-3/4 ins.
(170.5 mm)
17-5/16 ins. (440 mm)
11/16 ins.
(17 mm)
15-3/16 ins. (385 mm)
3/8 ins. (8 mm)
14-3/16 ins. (360 mm)
FM TUNER SECTION
Frequency Range ................................ 87.5 – 107.9 MHz
Usable Sensitivity ............................IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio ................... Mono/Stereo 75/70 dB
Distortion ......................................Mono/Stereo 0.2/0.3 %
HD Radio .............................................................. 0.02 %
Stereo Separation .........................................1 kHz 45 dB
HD Radio ......................................................1 kHz 85 dB
Alternate Channel Selectivity .................± 400 kHz 60 dB
Image Rejection ......................................98.1 MHz 70 dB
Tuner Output Level ........... 1 kHz, ± 75 kHz Dev 800 mV
AM TUNER SECTION
Frequency Range ................................... 530 – 1710 kHz
Signal to Noise Ratio .............................................. 50 dB
Usable Sensitivity ......................................... Loop 500µV
Distortion ...................................400Hz, 30 % Mod. 0.5 %
Selectivity .................................................± 20 kHz 70 dB
AUDIO SECTION
Input Sensitivity/Impedance
(Unbalanced) .............................200 mV/ 47 k ohms
(Balanced) ..................................400 mV/ 30 k ohms
Output Level/Impedance
(Unbalanced) .................................... 1 V/ 470 ohms
(Balanced) ......................................... 2 V/ 470 ohms
Signal to Noise Ratio(Analog Input / Pure Direct) .... 105 dB
Frequency Response
(Analog Input / Pure Direct) .... 8 Hz – 100 kHz (± 3 dB)
(Digital Input / 96 kHz PCM) .... 8 Hz – 45 kHz (± 3 dB)
VIDEO
Television Format ....................................................NTSC
Input Level/Impedance ........................... 1 Vp-p/75 ohms
Output Level/Impedance ......................... 1 Vp-p/75 ohms
Video Frequency Response .......5 Hz to 8 MHz (– 1 dB)
Video Frequency (Component) .. 5 Hz to 100 MHz (– 3 dB)
S/N .......................................................................... 60 dB
HDMI
Version .........................................................1.3a [INPUT]
.........................................................1.3a [OUTPUT]
GENERAL
Power Requirement ................................AC 120 V 60 Hz
Power Consumption ................................................ 85 W
Standby Power Consumption .................. (Normal) 1.0 W
......................................................(Economy) 0.7 W
Weight ...................................................................11.6 kg
Specifi cations subject to change without prior notice.
