TECHNICAL SPECIFICATIONS
n
Audio section
• Analog
Input sensitivity： Unbalanced RCA input：200 mV/47 kΩ
/Input impedance Balanced XLR input：400 mV/94 kΩ
Frequency response： 10 Hz - 100 kHz — +1, –3 dB(Direct mode)
S/N：  105 dB(IHF-A weighted, Direct mode)
Distortion： 0.005 % (20 Hz – 20 kHz) (Direct mode)
Rated output： Unbalanced RCA pre-output : 1.2 V
Balanced XLR pre-output: 2.4 V
• Digital
D/A output： Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input：Format — Digital audio interface
• Phono equalizer
Input sensitivity： 2.5 mV
RIAA deviation： ±1 dB (20 Hz to 20 kHz)
S/N： 74 dB (IHF-A, with 5 mV input))
Rated output： 150 mV
Distortion factor： 0.03 % (1 kHz, 3 V)
n
Video section
• Standard video connectors
Input/output level and impedance： 1 Vp-p, 75 Ω
Frequency response：5 Hz – 10 MHz — 0, –3 dB
• Color component video connector
Input/output level and impedance： Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response：5 Hz - 60 MHz — 0, –3 dB
n
Tuner section
Reception frequency range： F M 87.5 MHz - 107.9 MHz (for U)
FM 87.5 MHz - 108.0 MHz (for N, K)
FM 76.0 MHz - 90.0 MHz (for F)
AM 530 kHz - 1710 kHz (for U)
AM 522 kHz - 1611 kHz (for N, K)
AM 522 kHz - 1629 kHz (for F)
Effective sensitivity： FM 1.5μV (14.8dBf) (for U)
FM 1.2μV (12.8dBf) (for N, K, F)
AM 20 μV (for U)
AM 18 μV (for N, K, F)
50 dB sensitivity： MONO ― 2.8 μV (20.2 dBf) (for N, K, F)
S/N ratio (IHF-A)： MONO ― 78 dB (for U)
MONO ― 70 dB (for N, K, F)
STEREO ― 68 dB (for U)
STEREO ― 67 dB (for N, K, F)
HD ― FM 85dB AM 85dB (for U)
Distortion (1 kHz)： MONO ― 0.1 % (for U)
MONO ― 0.7 % (1 kHz) (for N, K, F)
SRETEO ― 0.2 % (for U)
SRETEO ― 1.0 % (1 kHz) (for N, K, F)
HD ― FM 0.02% AM 0.02% (for U)
n
Wireless LAN section
Network type (wireless LAN standard)： Conforming to Wi-Fi®z1
Security： WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency： 2.4 GHz
No. of channels： 1 - 11 ch (for U)
1 - 13 ch (for N, K, F)
z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product
Logo are registered trademarks of the Wi-Fi Alliance.
n
Bluetooth section
Communications system： Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power：Maximum 2.5 mW (Class 2)
Maximum communication range：Approx. 32.8 ft/10 m in line of sight
Frequency band：2.4 GHz band
Modulation scheme：FHSS (Frequency-Hopping Spread Spectrum)
Supported proles： A2DP (Advanced Audio Distribution Prole) 1.2
AVRCP (Audio Video Remote Control Prole) 1.4
Corresponding codec：SBC, AAC
Transmission range (A2DP)：20 Hz - 20,000 Hz
n
General
Power supply： (for U) : AC 120 V, 60 Hz
(for N) : AC 230 V, 50 Hz / 60Hz
(for K) : AC 220 V, 50 Hz
(for F) : AC 100 V, 50 Hz / 60Hz
Power consumption：90W
Power consumption in standby mode：0.2W
Power consumption in CEC standby mode：0.5W
Power consumption in network standby mode ：4.5W
(AdaptedtoNEWDIGITALPCBproducts)  ：2.7W
For purposes of improvement, specications and design are subject to
change without notice.

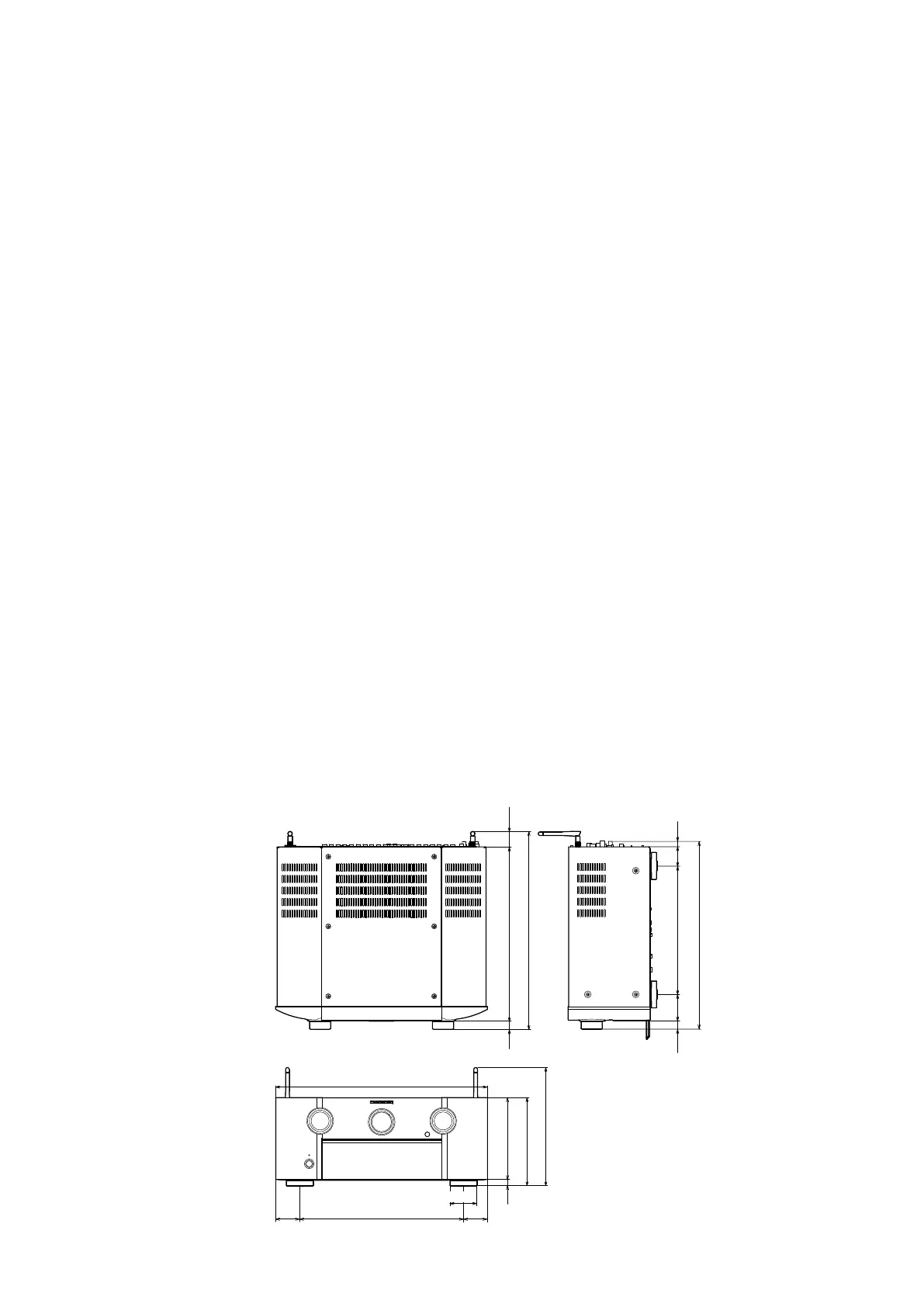

DIMENSION
Unit：mm
Weight：29lb16oz(13.6kg)
32
50
55
39 11
171 185
248
361 410
17
267 389
17
50
340
14
440
56
