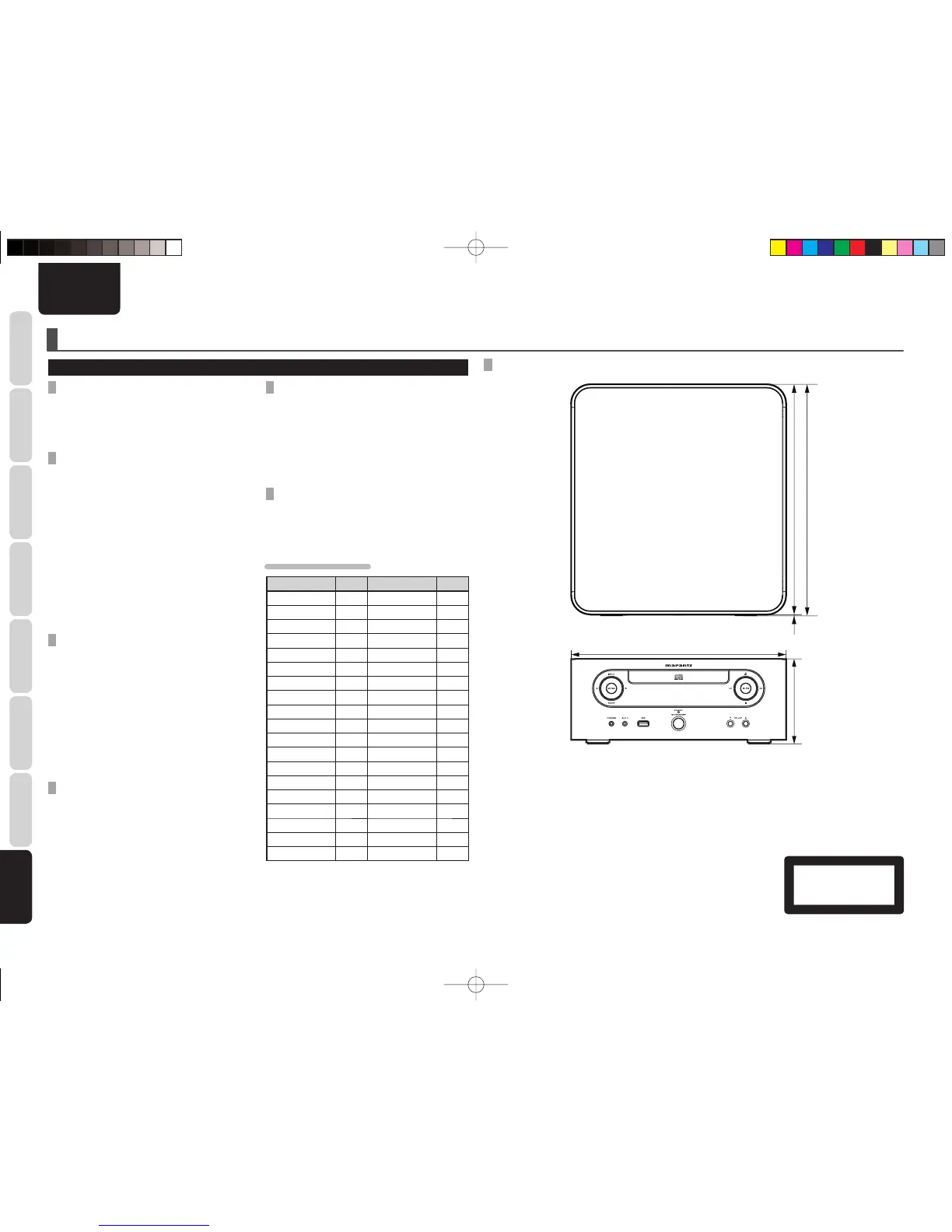

SPECIFICATIONS AND EXTERNAL DIMENSIONS
MISCELLANEOUS
EXTERNAL DIMENSIONS (Units: mm)
300
2
302
111
280
The specifi cations and external appearance of this unit may be changed without prior notifi cation for the
purpose of improvement.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CD PLAYER
Audio performance
S/N ratio (1kHz) .......................100dB or more
Dynamic range (1kHz) ............. 100dB or more
Total harmonic distortion ...........0.01% or less
AUDIO AMP
Rated output (1kHz, total harmonic distortion
0.1%, 8Ω) .....................................40W + 40W
Effective maximum output (1kHz, total harmonic
distortion 10%, 8Ω) ......................50W + 50W
Input sensitivity/impedance
AUX1 .................................... 110mV/24kΩ
AUX2, AUX3 ........................ 200mV/32kΩ
Frequency response (5W, 8Ω)
AUX input .................5Hz to 20kHz (±3dB)
Total harmonic distortion (1kHz, 5W, 8Ω)
AUX input ........................................0.05%
S/N ratio (10W, 8Ω, IHF-A)
AUX input ..........................................86dB
TUNER
FM tuner
Range of receivable frequencies ..........87.5 to
108.0MHz
S/N ratio (mono) ......................................65dB
Sensitivity (S/N 30dB) ...................6dBµV (IHF)
AM tuner
Range of receivable frequencies ...........522 to
1620kHz
S/N ratio ..................................................45dB
Sensitivity (S/N 20dB) ..................... 55dBµV/m
DAB TUNER SECTION
Frequency range
.... 174.928 (5A) ~ 239.200 (13F) MHz (BAND III)
Sensitivity .......................................... –90 dBm
Signal-to-noise ratio ................................95 dB
THD+N ...................................0.025 % (1 kHz)
Channel separation .....................70 dB (1 kHz)
POWER SUPPLY
Power supply voltage/frequency .......AC 230V,
50Hz
Power consumption .................................45W
Power consumption in standby mode 2.8W or
less
Power consumption in low-power mode during
standby (display panel off) ...........0.6W or less
MISCELLANEOUS
External dimensions (width x height x depth) .
280 x 111 x 302mm
Weight .................................................... 4.2kg
Band III (174 to 240 MHz)
Frequency Level Frequency Level
174.928 MHz 5A 208.064 MHz 9D
176.640 MHz 5B 209.936 MHz 10A
178.352 MHz 5C 211.648 MHz 10B
180.064 MHz 5D 213.360 MHz 10C
181.936 MHz 6A 215.072 MHz 10D
183.648 MHz 6B 216.928 MHz 11A
185.360 MHz 6C 218.640 MHz 11B
187.072 MHz 6D 220.352 MHz 11C
188.928 MHz 7A 222.064 MHz 11D
190.640 MHz 7B 223.936 MHz 12A
192.352 MHz 7C 225.648 MHz 12B
194.064 MHz 7D 227.360 MHz 12C
195.936 MHz 8A 229.072 MHz 12D
197.648 MHz 8B 230.784 MHz 13A
199.360 MHz 8C 232.496 MHz 13B
201.072 MHz 8D 234.208 MHz 13C
202.928 MHz 9A 235.776 MHz 13D
204.640 MHz 9B 237.488 MHz 13E
206.352 MHz 9C 239.200 MHz 13F
