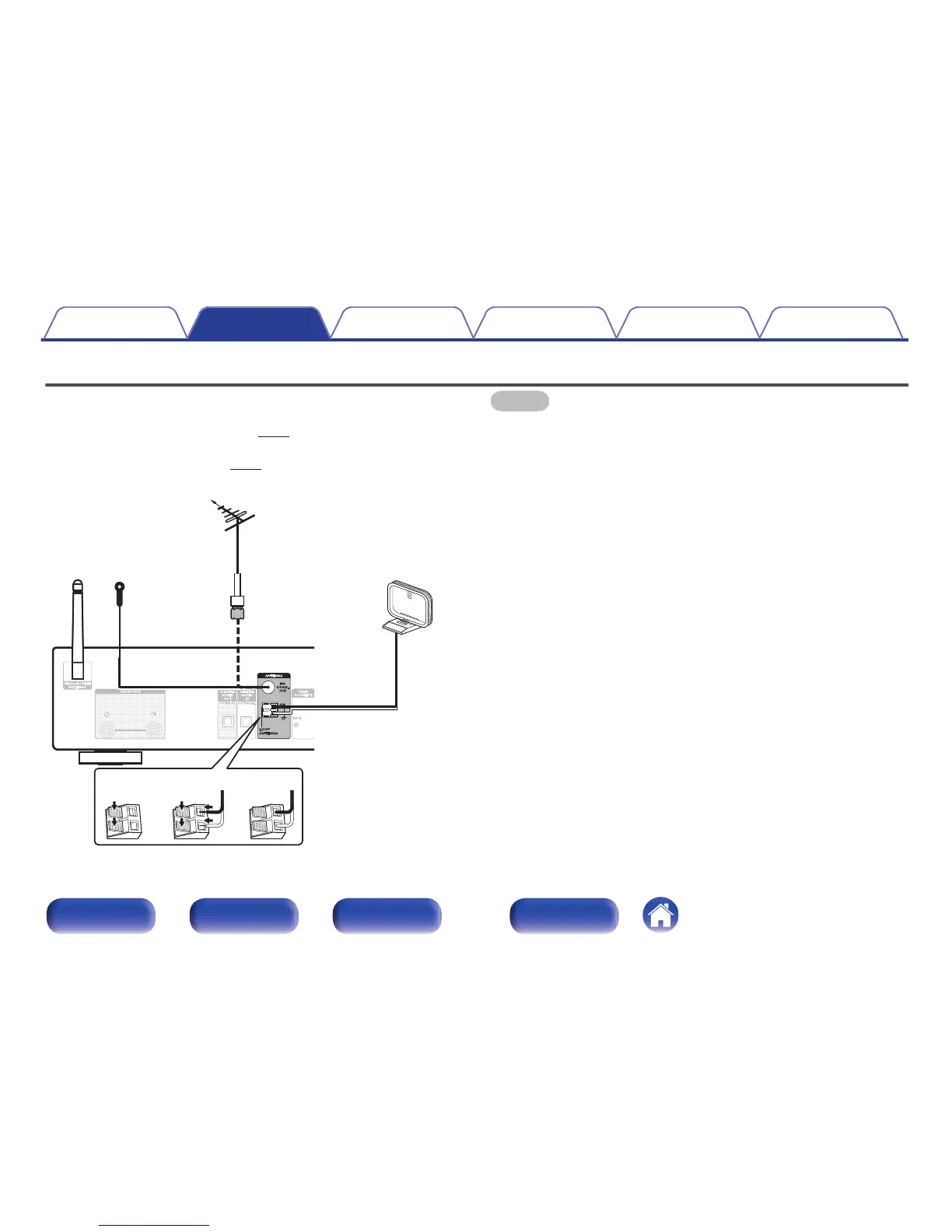

Connecting an FM/AM antenna
After connecting the antenna and receiving a broadcast signal, fix the
antenna with tape in a position where the noise level becomes minimal.
“Listening to FM/AM broadcasts” (v p. 47)
0
When listening to radio stations, always make analog connections.
“Connecting an amplifier” (v
p. 21)
.
weq
FM indoor antenna
(supplied)
AM loop antenna
(supplied)
Direction of broadcasting station
FM outdoor
antenna
75 Ω coaxial cable
Black
White
NOTE
0
Do not connect two FM antennas simultaneously.
0
If you are unable to receive a good broadcast signal, we recommend installing an
outdoor antenna. For details, inquire at the retail store where you purchased the
unit.
0
Do not disconnect the AM loop antenna even when an AM outdoor antenna is
connected.
0
Make sure the AM loop antenna lead terminals do not touch metal parts of the
panel.
