Power output (20 Hz – 20 kHz simultaneous drive of both channels)
...................................................... 90W x 2 (8Ω load)
.................................................... 140W x 2 (4Ω load)
Total harmonic distortion (20Hz – 20kHz simultaneous drive
of both channels, 8Ω load) .......................................... 0.05%
Output band width (8Ω load, 0.05%) ................. 5Hz ~ 40kHz
Frequency response (CD, 1W, 8Ω load) .............. 5Hz ~ 100kHz
Dumping factor (8Ω load, 20Hz – 20kHz) ....................... 100
Input sensitivity/Input impedance
PHONO (MC) .............................................. 300µV/100Ω
PHONO (MM) ............................................... 3.2mV/47kΩ
CD/LINE/RECORDER ............................... 240mV/20kΩ
Output voltage/Output impedance
PRE OUT ...................................................... 1.7 V/330Ω
Maximum allowed PHONO input (1kHz)
MC .......................................................................... 15mV
MM ....................................................................... 150mV
RIAA deviation (20Hz ~ 20kHz) ............................ ±0.5dB
S/N (IHF-A, 1W, 8Ω load)
PHONO (MC) ................................... 77dB (0.5mV input)
PHONO (MM) ...................................... 85dB (5mV input)
CD/LINE/RECORDER ..................... 90dB (500mV input)

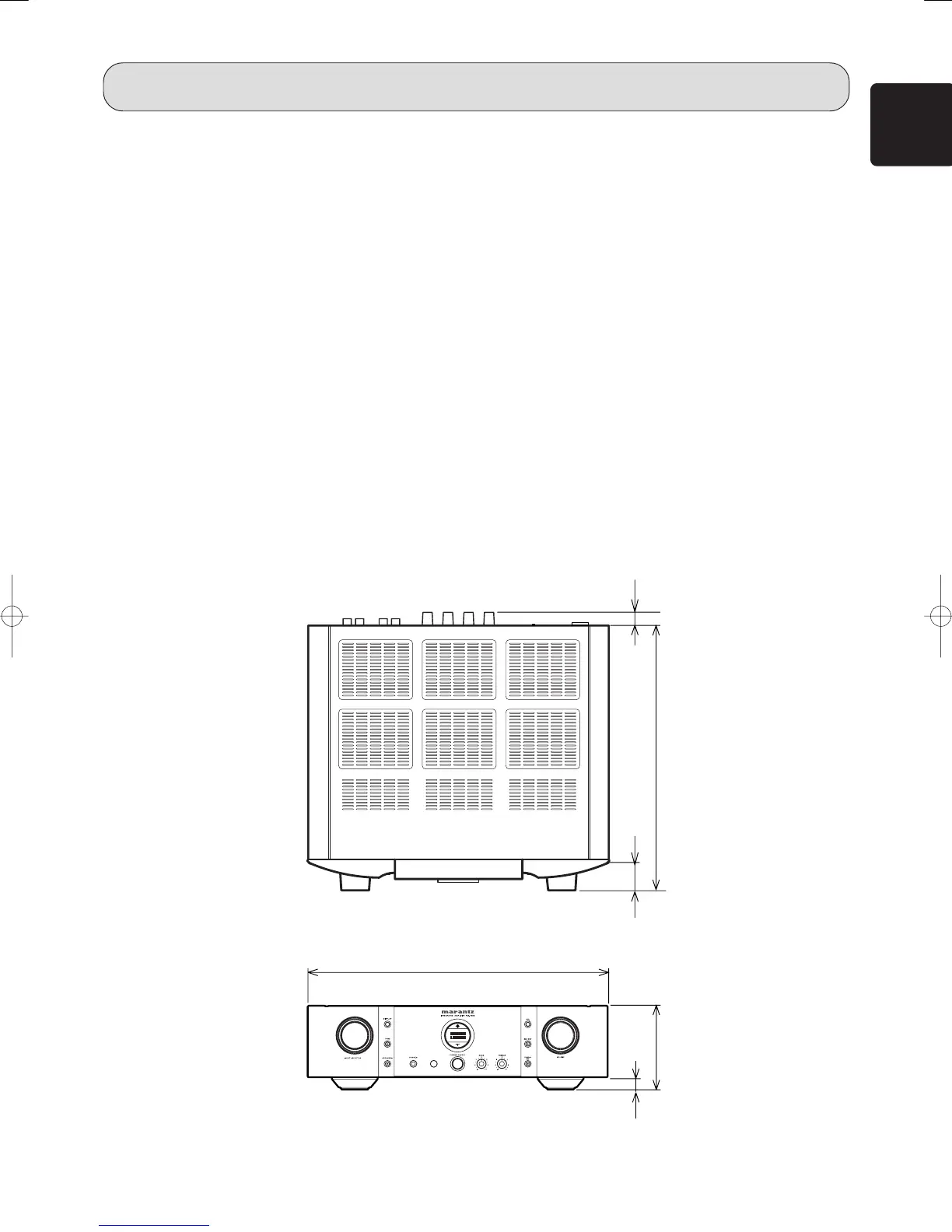

SPECIFICATIONS & DIMENSIONAL DRAWINGS
Tone control
Bass (50Hz) ........................................................... ±10dB
Treble (20kHz) ....................................................... ±10dB
Power requirement ......................................... AC 230V 50Hz
Power consumption
(EN60065) .............................................................. 220W
(4Ω, 140W x 2 output) ............................................ 550W
Accessories
Remote controller .......................................................... 1
AAA batteries ................................................................. 2
Detachable AC power cable .......................................... 1
Maximum outer dimensions (Amp)
Width ................................................................... 440mm
Height .................................................................. 123mm
Depth ................................................................... 444mm
Weight (Amp) .............................................................. 18.0kg
419
43
123
440
25
18
