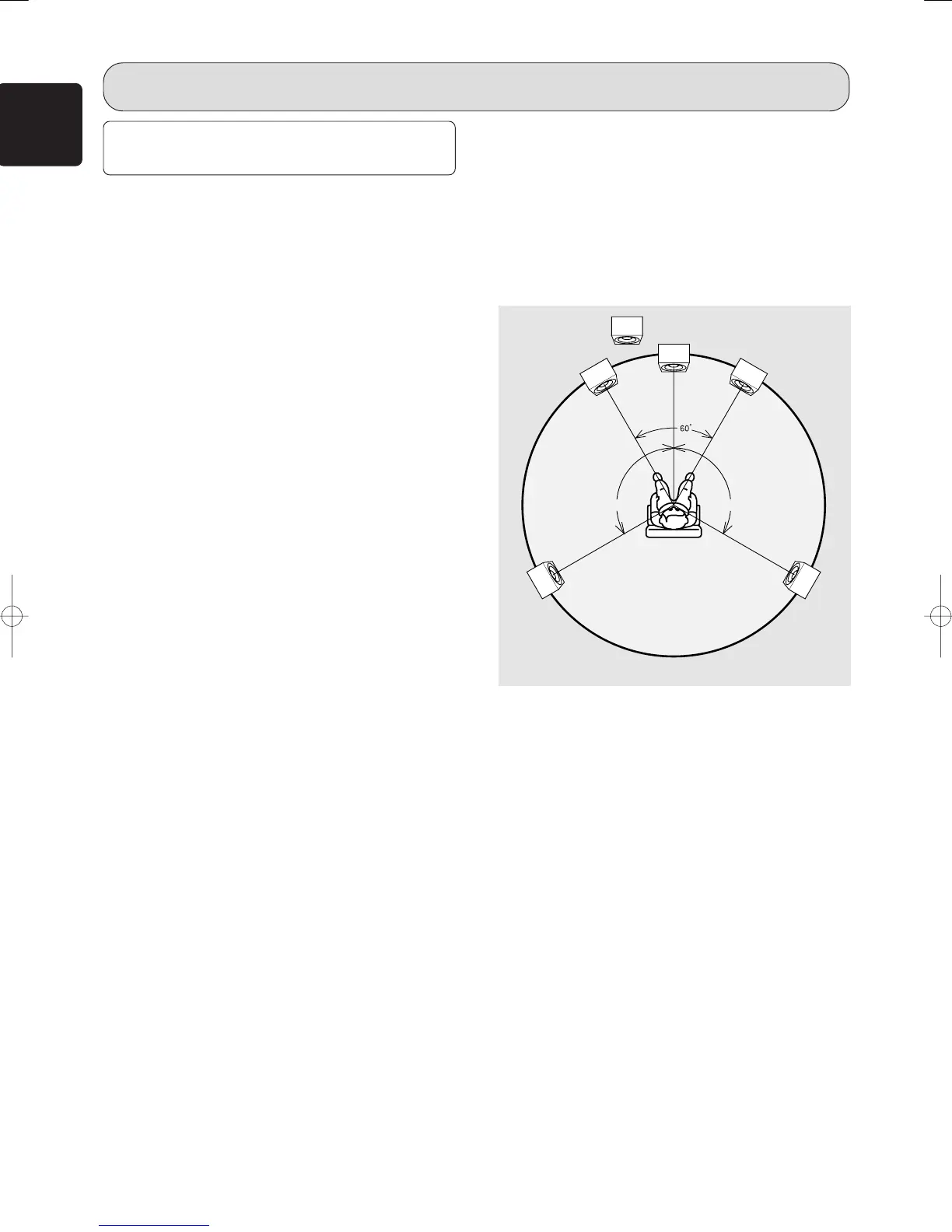

4
ENGLISH
Center
speaker
Rear speaker
(Right Surround)
Sub-woofer
Front speaker
(Left)
Rear speaker
(Left Surround)
Front speaker
(Right)
Reference listening
position
approx. 110° approx. 110°
BEFORE MAKING CONNECTIONS
SPEAKER POSITIONING FOR SUPER
AUDIO MULTI-CHANNEL SOUND
In order to enjoy Super Audio CD multi-channel sound with
the best possible acoustics, it is recommended to position
speakers as specified in ITU-R BS.775-1 of the International
Telecommunication Union (ITU). Super Audio CD multi-chan-
nel discs are recorded and mixed so as to achieve the opti-
mum effect with a speaker system laid out as specified in ITU-
R BS.775-1.
• With Super Audio CD multi-channel discs, the music sig-
nals are basically recorded using 5 channels (3 - 6 chan-
nels sometimes), but in some cases, LFE (for subwoofer) is
recorded as a sixth channel. Each disc indicates how many
channels have been recorded on it.
• The basic layout is 3 speakers in the front and 2 in the back
since multi-channel discs usually have 5 channels. The 2
front, 1 center and 2 surround (rear) speakers should be set
in a circle around the listening point as shown below. If us-
ing speakers of differing sizes, adjust volume balance from
the amplifier.
• The location of the subwoofer in the figure is just for ex-
planatory purposes. It can be located anywhere in the room.
For connection and positioning instructions, see the instruc-
tion manual that came with the subwoofer.
77
77
7 ITU (International Telecommuni-
cation Union)
The ITU is a special organization of the United Nations. It
consists of a number of organs, one of which is the Radio
Broadcasting Section.
ITU-R BS in the recommendation which consists of standards
relating to broadcasting (audio) operations, one of which is
the ITU-R BS.775-1 which governs “multi-channel stereo sound
systems.”
