Marantz PM-16 User Manual

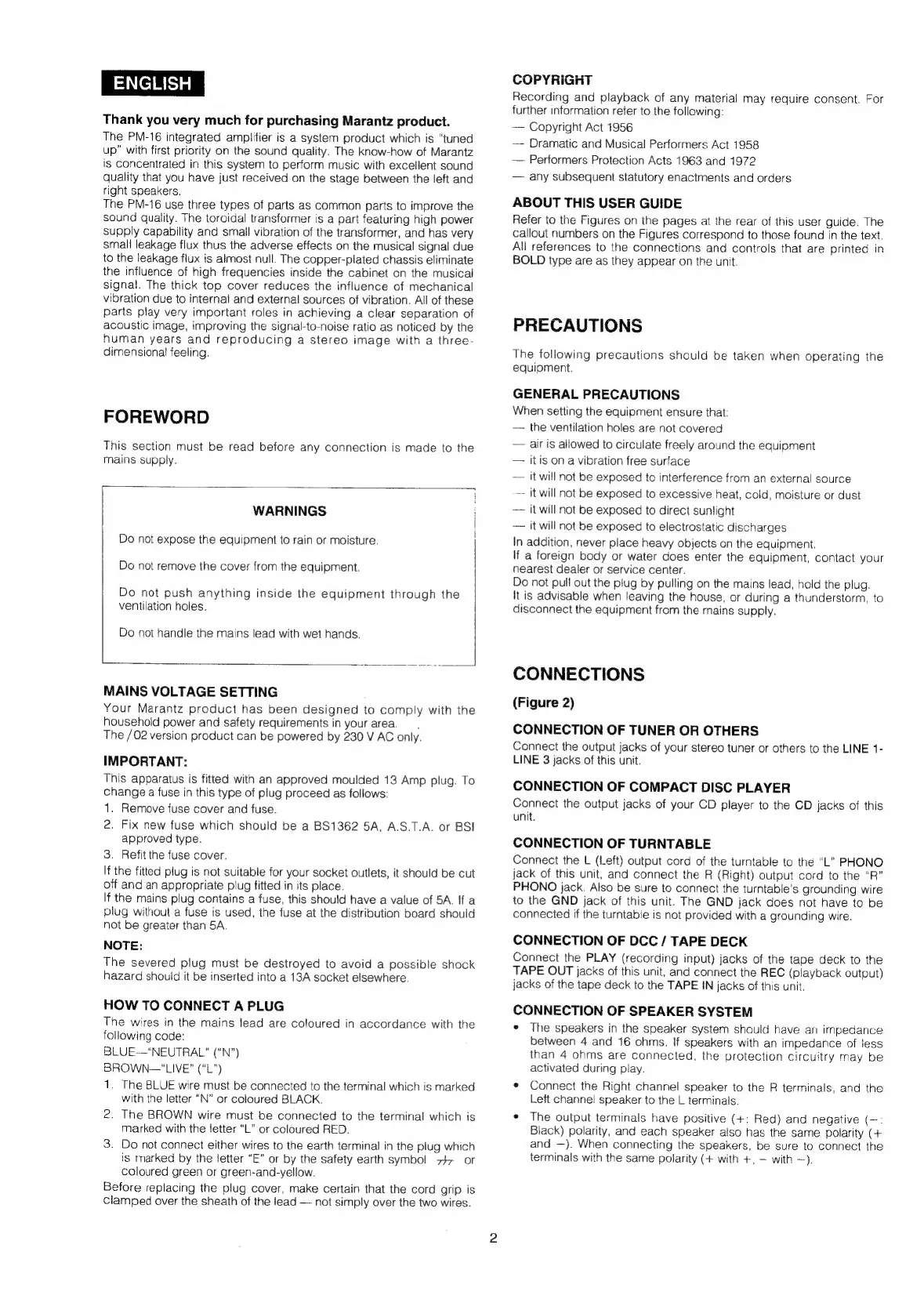

Thank you very much for purchasing Marantz product.
The PM-16 integrated amplifier is a system product which is “tuned
up” with first priority on the sound quality. The know-how of Marantz
is concentrated in this system to perform music with excellent sound
quality that you have just received on the stage between the left and
right speakers.
The PM-16 use three types of parts as common parts to improve the
sound quality. The toroidal transformer is a part featuring high power
supply capability and small vibration of the transformer, and has very
small leakage flux thus the adverse effects on the musical signal due
to the leakage flux is almost null. The copper-plated chassis eliminate
the influence of high frequencies inside the cabinet on the musical
signal. The thick top cover reduces the influence of mechanical
vibration due to internal and external sources of vibration. All of these
parts play very important roles in achieving a clear separation of
acoustic image, improving the signal-to-noise ratio as noticed by the
human years and reproducing a stereo image with a three-
dimensional feeling.
FOREWORD
This section must be read before any connection is made to the
mains supply.
WARNINGS
Do not expose the equipment to rain or moisture.
Do not remove the cover from the equipment.
Do not push anything inside the equipment through the
ventilation holes.
Do not handle the mains lead with wet hands.
MAINS VOLTAGE SETTING
Your Marantz product has been designed to comply with the
household power and safety requirements in your area.
The /02 version product can be powered by 230 V AC only.
IMPORTANT:
This apparatus is fitted with an approved moulded 13 Amp plug. To
change a fuse in this type of plug proceed as follows:
1. Remove fuse cover and fuse.
2. Fix new fuse which should be a BS1362 5A, A.S.T.A. or BSI!
approved type.
3. Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut
off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value of 5A. If a
plug without a fuse is used, the fuse at the distribution board should
not be greater than 5A.
NOTE:
The severed plug must be destroyed to avoid a possible shock
hazard should it be inserted into a 13A socket elsewhere.
HOW TO CONNECT A PLUG
The wires in the mains lead are coloured in accordance with the
following code:
BLUE—"NEUTRAL” (“N")
BROWN—"LIVE” (“L”)
1. The BLUE wire must be connected to the terminal which is marked
with the letter “N” or coloured BLACK.
2. The BROWN wire must be connected to the terminal which is
marked with the letter “L” or coloured RED.
3. Do not connect either wires to the earth terminal in the plug which
is marked by the letter “E” or by the safety earth symbol 7+ or
coloured green or green-and-yellow.
Before replacing the plug cover, make certain that the cord grip is
clamped
over
the
sheath
of
the
lead
—
not
simply
over
the
two
wires.
COPYRIGHT
Recording and playback of any material may require consent. For
further intormation reter to the following:
— Copyright Act 1956
— Dramatic and Musical! Performers Act 1958
— Performers Protection Acts 1963 and 1972
—~ any subsequent statutory enactments and orders
ABOUT THIS USER GUIDE
Refer to the Figures on the pages at the rear of this user guide. The
callout numbers on the Figures correspond to those found in the text.
All references to the connections and controls that are printed in
BOLD type are as they appear on the unit.
PRECAUTIONS
The following precautions should be taken when operating the
equipment.
GENERAL PRECAUTIONS
When setting the equipment ensure that:
— the ventilation holes are not covered
— air is allowed to circulate freely around the equipment
— itis on a vibration free surface
— it will not be exposed to interference from an external source
-- it will not be exposed to excessive heat, cold, moisture or dust
— it will not be exposed to direct sunlight
— it will not be exposed to electrostatic discharges
In addition, never place heavy objects on the equipment.
If a foreign body or water does enter the equipment, contact your
nearest dealer or service center.
Do not pull out the plug by pulling on the mains lead, hold the plug.
It is advisable when leaving the house, or during a thunderstorm, to
disconnect the equipment from the mains supply.
CONNECTIONS
(Figure 2)
CONNECTION OF TUNER OR OTHERS
Connect the output jacks of your stereo tuner or others to the LINE 1-
LINE 3 jacks of this unit.
CONNECTION OF COMPACT DISC PLAYER
Connect the output jacks of your CD player to the CD jacks of this
unit.
CONNECTION OF TURNTABLE
Connect the L (Left) output cord of the turntable to the “L” PHONO
jack
of
this
unit,
and
connect
the
R
(Right)
output
cord
to
the
“R”
PHONO jack. Also be sure to connect the turntable's grounding wire
to the GND jack of this unit. The GND jack does not have to be
connected if the turntabie is not provided with a grounding wire.
CONNECTION OF DCC / TAPE DECK
Connect the PLAY (recording input) jacks of the tape deck to the
TAPE OUT jacks of this unit, and connect the REC (playback output)
jacks of the tape deck to the TAPE IN jacks of this unit.
CONNECTION OF SPEAKER SYSTEM
* The speakers in the speaker system should have an impedance
between 4 and 16 ohms. If speakers with an impedance of less
than
4
ohms
are
connected,
the
protection
circuitry
may
be
activated during play.
*
Connect
the
Right
channel
speaker
to
the
R
terminals,
and
the
Left
channel
speaker
to
the
L terminals.
¢ The output terminals have positive (+: Red) and negative (Ga
Biack)
polarity,
and
each
speaker
also
has
the
same
polarity
(+
and
—).
When
connecting
the
speakers,
be
sure
to
connect
the
terminals with the same polarity (+ with +, — with —).
