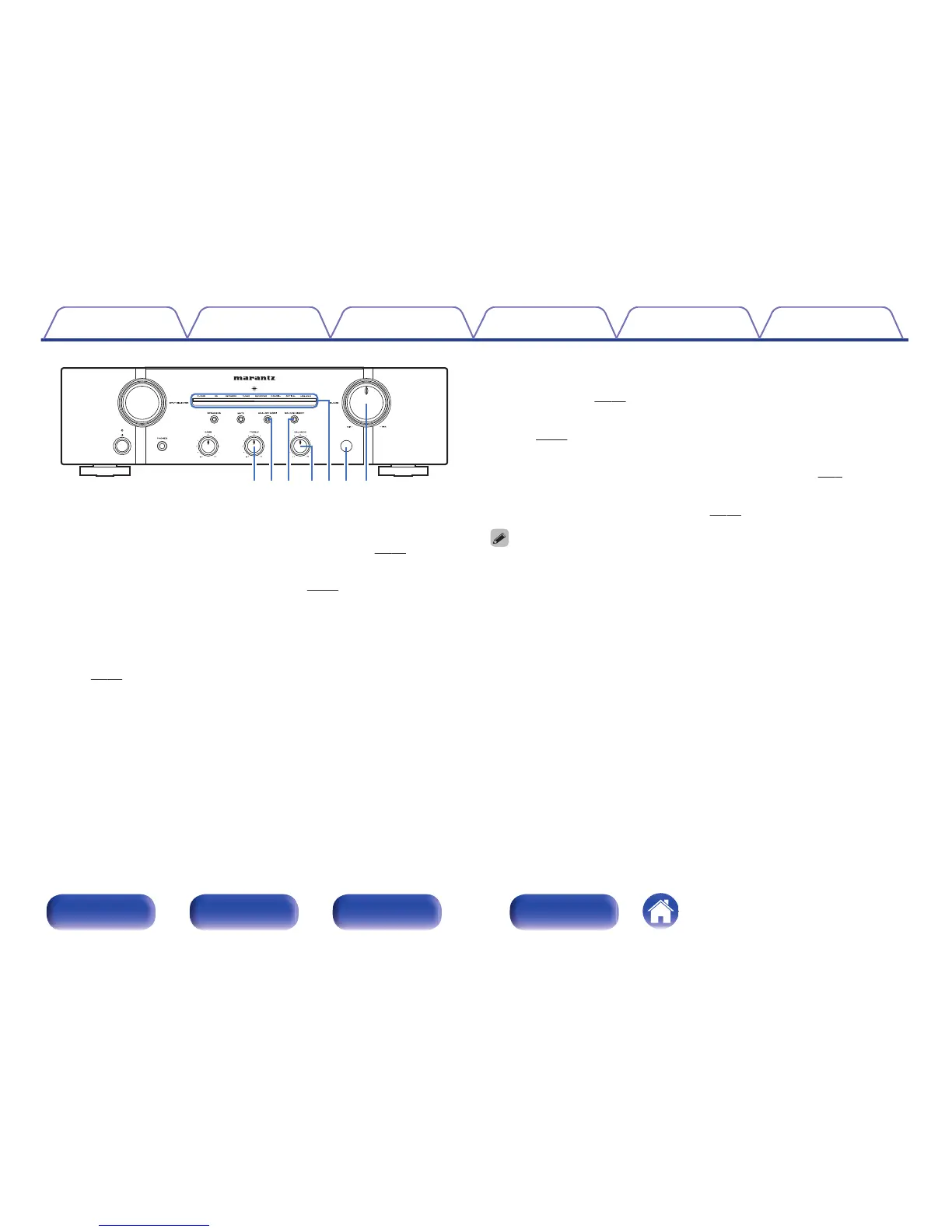

TREBLE control knob
This setting adjusts the volume level for the treble. (v p. 28)
I
ANALOG MODE button / indicator
This turns the ANALOG MODE on/off. (v p. 29)
0
ANALOG MODE on: Blue
0
ANALOG MODE off: Off
J
SOURCE DIRECT button/indicator
This turns SOURCE DIRECT mode on/off.
(v
p. 29)
0
SOURCE DIRECT mode on: Blue
0
SOURCE DIRECT mode off: Off
K
BALANCE control knob
This adjusts the balance of the volume output from the left and right
speakers. (v p. 28)
L
Input indicator
(v
p. 28)
M
Remote control sensor
This receives signals from the remote control unit. (v
p. 4)
N
VOLUME knob
These adjust the volume level. (v p. 28)
5, 8 and a can be adjusted when 0 is off (SOURCE DIRECT mode is off).
