1. TECHNICAL SPECIFICATIONS
POWER AMP SECTION
Rated Power Output (20 Hz to 20 kHz, 2 ch simultaneous drive) .............................................................. 60 Wx2 (8 Ω load)
80 Wx2 (6 Ω load)
100 Wx2 (4 Ω load)
AUDIO SECTION
Total harmonic distortion (20 Hz to 20 kHz, 2 ch drive, 8 Ω load) ................................................................................ 0.04 %
Cross-modulation distortion (SMPTE) ......................................................................................................................... 0.04 %
Output bandwidth (8 Ω load, 0.07 %) ........................................................................................................... 10 Hz to 30 kHz
Frequency response .................................................................................................................. 5 Hz to 100 kHz (+0 / -1 dB)
Damping factor (8 Ω load, 20 Hz to 20 kHz) ..................................................................................................................... 100
Signal to NoiseRatio .................................................................................................................................................... 100 dB
DECODER SECTION
Decoding ........................................................................................................................... PCM Audio (fs=32 kHz, 44.1 kHz)
Frequency response
Analog input: Source direct ........................................................................................................ 5 Hz to 100 kHz (+0 / -1 dB)
Digital input: PCM 96 kHz ............................................................................................................ 5 Hz to 45 kHz (+0 / -3 dB)
Signal to Noise Ratio (Source direct mode) ................................................................................................................. 104 dB
VIDEO SECTION
Television Format ................................................................................................................................................. PAL / NTSC
Input Level/Impedance ....................................................................................................................................... 1 Vp-p / 75 Ω
Output Level/Impedance .................................................................................................................................... 1 Vp-p / 75 Ω
S/N ................................................................................................................................................................................. 60 dB
Video Frequency Response
Video, S-video ............................................................................................................................. 5 Hz to 10 MHz (+0 / -3 dB)
Component video ........................................................................................................................ 5 Hz to 45 MHz (+0 / -3 dB)
GENERAL
Power Requirement ............................................................................................................. AC 100 V 50 / 60 Hz (F version)
AC 110 V 60 Hz (L version)
AC 230 V 50 Hz (N,S version)
Dimension (MAX)
Width .......................................................................................................................................................................... 458 mm
Height.......................................................................................................................................................................... 166 mm
Depth ......................................................................................................................................................................... 491 mm
Weight ......................................................................................................................................................................... 19.0 Kg
ACCESSORIES
Remote Control Unit RC-17PS ............................................................................................................................................. 1
AA-size batteries ................................................................................................................................................................... 2
Specifi cations subject to change without prior notice.

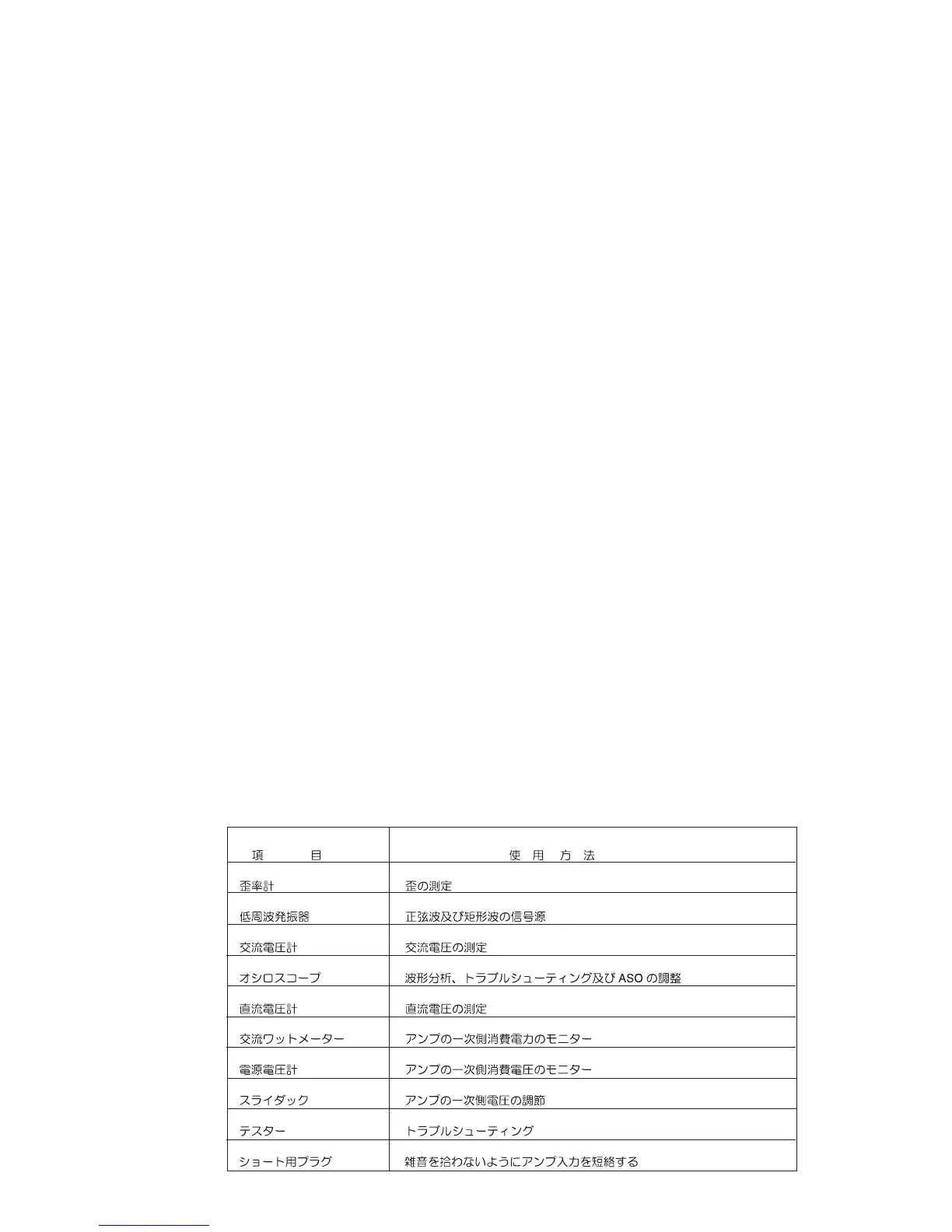

2. TEST EQUIPMENT REQUIRED FOR SERVICING
Item Use
Distortion Analyzer Distortion measurements
Audio Oscillator Sinewave and squarewave signal source
AC VTVM Voltage measurements (AC)
Oscilloscope Waveform analysis and trouble shooting and ASO alignment
DC VTVM Voltage measurements (DC)
AC Wattmeter Monitors primary power to amplifi er
Line Voltmeter Monitors poterntial of primary power to amplifi er
Variable Autotransformer Adjust level of primary power to amplifi er
Circuit Tester Trouble shooting
Shorting Plug Shorts amplifi er input to eliminate noise pickup
