Part names and functions

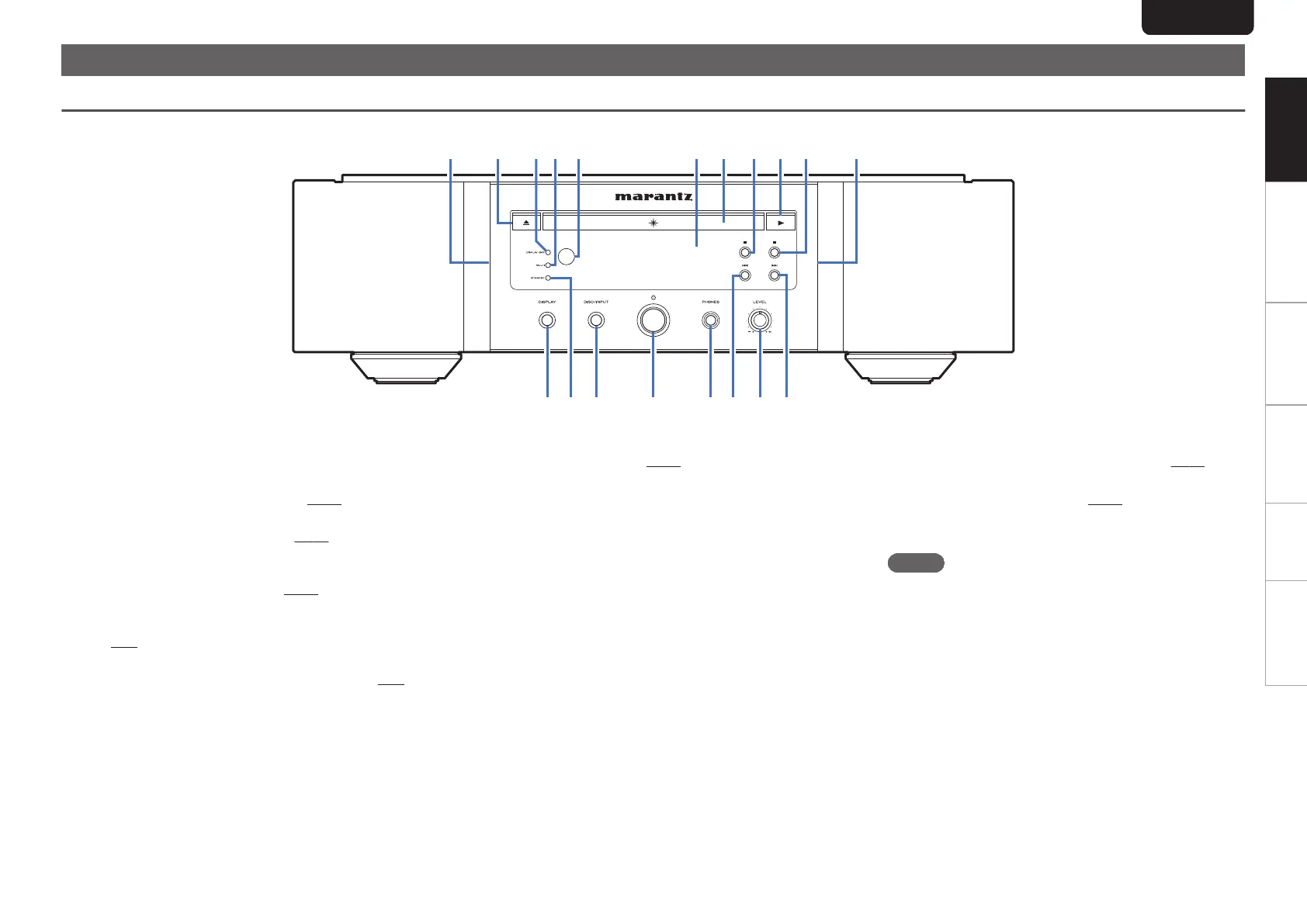

Front panel
.
Q
2
Q
4
Q
3
Q
1
Q
5
Q
7
Q
6
Q
8
qewuoyitQ0 qr
A
Illumination lamp
The illumination lamp lights (blue).
B
Disc tray open/close button (5)
Opens and closes the disc tray. (v
p. 13)
C
DISPLAY OFF indicator
Lights when the display is off. (v
p. 11)
D
MULTI indicator
This indicator lights up when the Multi channel area of a
Super Audio CD is selected. (v p. 12)
E
Remote control sensor
This receives signals from the remote control unit.
(v
p. 2)
F
Display
This displays various pieces of information. (v
p. 5)
G
Disc tray
Used to insert a disc. (v p. 13)
H
Pause button (3)
Pauses playback.
I
Play button (1)
Playback starts.
J
Stop button (2)
Stops playback.
K
DISPLAY button
This turns the display on/off. Press and hold to turn the
illumination lamp on/off.
L
STANDBY indicator
This is lit as follows according to the power status:
0
Power on : Off
0
Standby : Red
0
iPod charge standby : Orange
0
Power off : Off
M
DISC/INPUT button
Used to select the playback media mode. (v p. 11)
N
Power operation button (X)
This turns the power on/off. (v p. 11)
O
Headphones jack (PHONES)
Used to connect headphones.
NOTE
0
To prevent hearing loss, do not raise the volume level
excessively when using headphones.
P
Fast-reverse/Reverse-skip button (8)
Returns to the start of the currently playing track. Press
and hold to fast-reverse the track.
Q
Headphone volume control knob (LEVEL)
Adjusts the headphone volume.
R
Fast-forward/Forward-skip button (9)
Plays the next track. Press and hold to fast-forward the
track.
