5110
3X6( M)

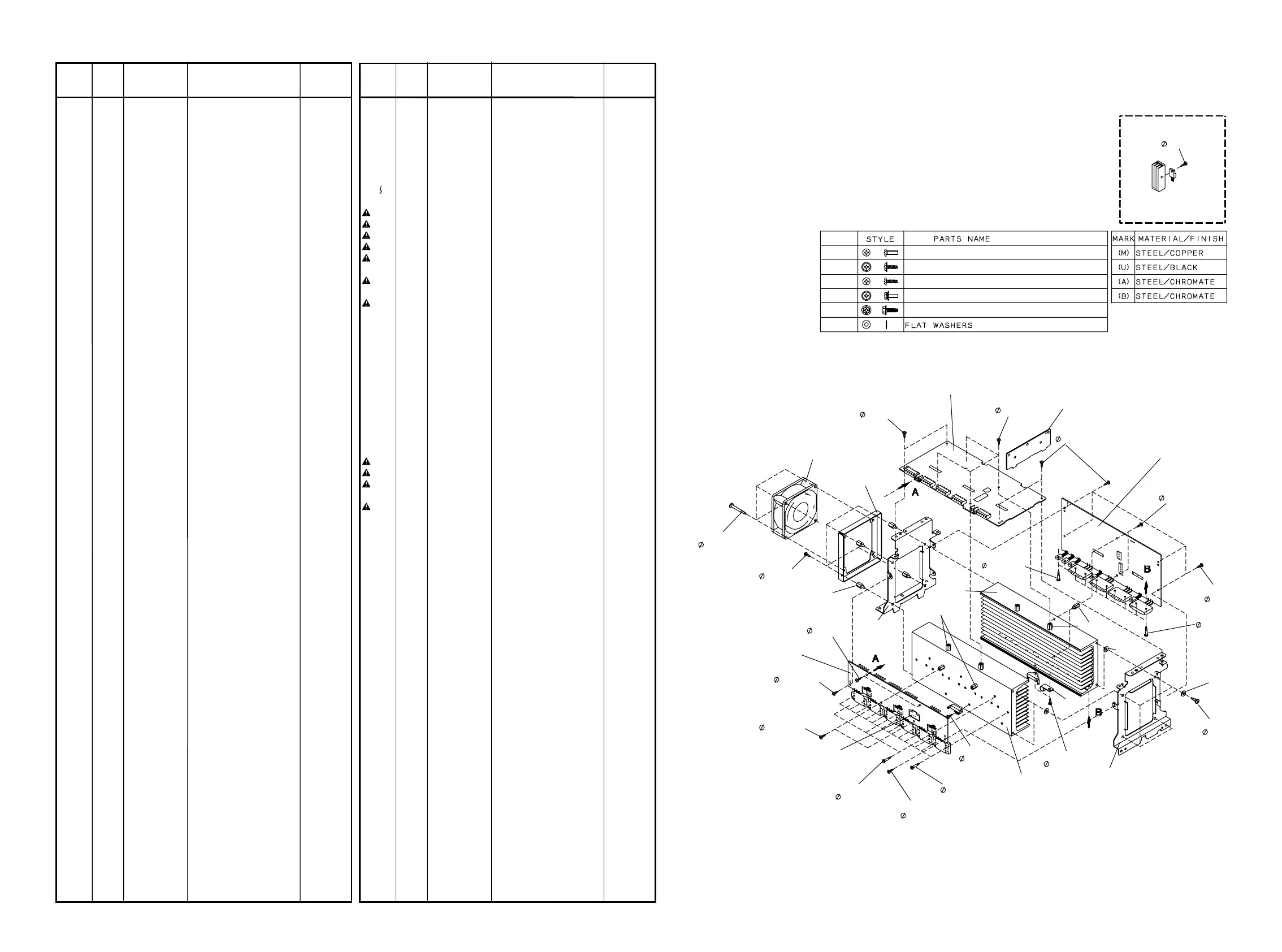

SYMBOL
+B.H.M.SCREW
+B. H. TAP TI TE SCREW W/ WASHER
+B. H. TAP TI TE SCREW( B TYPE)
+B.H.M.SCREW(W/WASHER/SP WASHER)
+H. H. TAPT. BOLTS WI TH FLANGE( S TI TE)
5110
5126
5128
5149
5204
5411
5128
4X35( U)
MN5 1
5128
3X8( M)
008L
5110
3X6( M)
5128
3X8( M)
006Lx4
5149
3X12( M)
5128
3X8( M)
5110
4X8( U)
012L
002Lx4
P794
TEMP- SENSOR
3CH PO- AMP
013Lx4
5110
3X6( M)
5110
3X6( M)
P794
3CH POWER AMP
P704
2CH POWER AMP
P754
3CH POWER TR
P774
001L
5149
3X15( M)
013Lx4
015L
5110
3X8( U)
007L
009Lx4
5128
3X8( M)
5110
3X6( M)
5110
3X6( M)
5149
3X12( M)
5149
3X15( M)
5128
3X8( M)
005L
5149
3X12( U)
55 56
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
(VERS. :VERSION, U:U.S.A., F:JAPAN, K:FAR EAST,
**
:EUROPE)
POS.
NO
VERS.
COLOR
PART NO.
(FOR PCS)
DESCRIPTION
PART NO.
(MJI)
001B BLACK FRONT PANEL KIT BL 300J248500
001B GOLD FRONT PANEL KIT GL 300J248510
002B BLACK FRONT PANEL BL 300J248010
002B GOLD FRONT PANEL GL 300J248110
003B BLACK FRONT MOULD PANEL BL 300J248050
003B GOLD FRONT MOULD PANEL GL 300J248150
005B BLACK WINDOW FL BL 300J158010
005B GOLD WINDOW FL GL 300J158110
006B LENS FUNCTION LED 300J355010
007B BLACK BUTTON GYRO SIDE
FUNCTION BL
300J270020
007B GOLD BUTTON GYRO SIDE
FUNCTION GL
300J270120
008B BLACK ESCUTCHEON CORNER L
SIDE BL
300J063010
008B GOLD ESCUTCHEON CORNER L
SIDE GL
300J063110
010B BLACK ESCUTCHEON CORNER R
SIDE BL
300J063020
010B GOLD ESCUTCHEON CORNER R
SIDE GL
300J063120
012B BLACK 4822 381 12015 LENS IR BL 256J355040
012B GOLD 4822 381 12016 LENS IR GL 256J355030
013B 4822 381 11677 LENS POWER LED 230K355020
014B 4822 462 71955 BUFFER DOOR 446T056010
015B BLACK BUTTON FUNCTION BLOCK 300J270010
015B GOLD BUTTON FUNCTION BLOCK 300J270110
016B BLACK ARM DOOR HINGE L SIDE BL 300J002010
016B GOLD ARM DOOR HINGE L SIDE GL 300J002110
017B BLACK ARM DOOR HINGE R SIDE BL 300J002020
017B GOLD ARM DOOR HINGE R SIDE GL 300J002120
018B SHAFT DOOR 300J112010
021B 4822 529 10215 DAMPER DOOR 391H130030
023B BLACK DOOR PANEL BL 300J162010
023B GOLD DOOR PANEL GL 300J162110
026B 4822 526 20213 MAGNET DOOR 271K305500
028B MASK WINDOW SHEET L 300J303010
029B MASK WINDOW SHEET R 300J303020
030B SPRING DOOR ESD 300J115010
040B BLACK KNOB MASTER BL 300J154010
040B GOLD KNOB MASTER GL 300J154110
041B BLACK 4822 410 11275 BUTTON POWER BL 176J270050
041B GOLD 4822 410 11276 BUTTON POWER GL 176J270150
042B 4822 404 21012 JOINT POWER JOINT 025J125010
043B 4822 256 92097 HOLDER FL 183J271020
044B 4822 459 11158 STICKER FL ADHESIVE TAPE 056J122010
049B 4822 532 21196 FLAT WASHER L. VIDEO 54110149A0
057B GOLD MASK IR 300J303030
001C BLACK 4822 410 11675 ESCUTCHEON GYRO UP
DOWN BL
290J063010
001C GOLD 4822 410 11676 ESCUTCHEON GYRO UP
DOWN GL
290J063110
002C BLACK RUBBER RING GYRO BL 290J066010
002C GOLD RUBBER RING GYRO GL 290J066110
003C FLYWHEEL GYRO BASE 290J273110
006C SHAFT GYRO MAIN 290J112010
009C RETAINER GYRO UPPER 290J104050
014C SHAFT GYRO SUSTAINER
UNDER
300J112020
015C WASHER FOR UNDER SIDE 59071102G0
001D BLACK LID TOP COVER BL PVC 300J257010
001D GOLD LID TOP COVER GL PVC 300J257110
012G H.HEAD BOLT 52040408M0
021G H.HEAD BOLT 52040408M0
055G LEG FRONT GOLD PAINT 264J057040
056G LEG REAR GOLD PAINT 264J057140
089G T.L. WASHER 54050400M0
090G H.HEAD BOLT 52040408M0
014K BUSHING SPK.TERMINAL CAP
T10336 94HB
227J259010
015K BUSHING SPK.TERMINAL CAP
T10336 94HB
227J259010
JL21
SHORT PIN WITH COVER YQ01000080
JL25
J001 JACK 2P AC INLET PWI1910-H YJ04002440
L001 K POWER TRANSF. 220V 50Hz TS42002080
L001 KS POWER TRANSF. 230V 50Hz TS42002090
L001 U POWER TRANSF. 120V 60Hz TS42002100
L002 K POWER TRANSF.
220V 50/60Hz
TS17205090
L002 KS POWER TRANSF.
230V 50/60Hz
TS17205100
L002 U POWER TRANSF. 120V 60Hz TS16404120
L003 KS FERRITE CORE TFCK-25-15-12 FC50250020
L003 U FERRITE CORE TFCK-25-15-12 FC50250020
L004 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030
L005 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030
L006 4822 526 10691 FERRITE CORE TFCK-16-8-13 FC50160030
PACKING
001T K KS USER GUIDE FOR K KS 300J851350
001T U USER GUIDE FOR U 300J851250
Z001 REMOTE COMMANDER
RC-18SR
ZK300J0010
Z007 K MAINS CORD 2.5A 250V ZC01803090
Z007 KS 4822 321 11439 MAINS CORD 2P 10A 250V ZC01803080
Z007 U MAINS CORD 125V 13A
UL/CSA
ZC01802100
Z008 KS MAINS CORD 10A 250V ZC01804070
NOT STANDRD SPARE
PARTS
001S UBL PACKING CASE BL 300J801010
001S UGL PACKING CASE GL 300J801010
002S CUSHION L SIDE 300J809010
003S CUSHION R SIDE 300J809020
Z003 K FM ANTENNA 931222R ZA02800020
Z003 U 4822 303 30314 FM EXT. ANTENNA ZA02000070
Z004 4822 157 63083 ANT COIL LA-700HB LOOP LA00055010
Z005 U 4822 264 30265 PLUG ANT ADAPTER YP90000310
Z006 K 4822 265 10092 JACK AC ADAPTER S-I6116 YJ04001240
