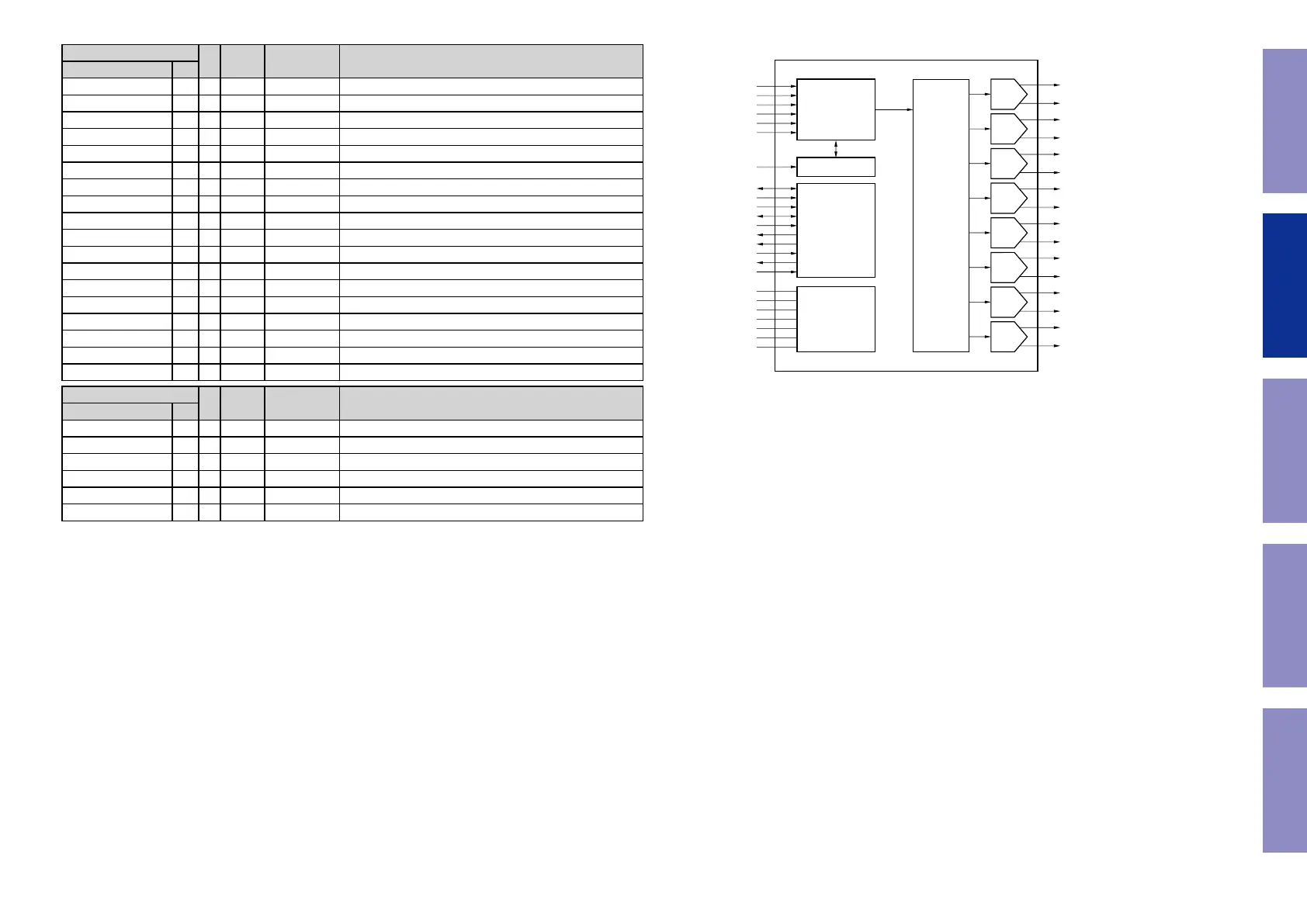

Marantz SR5011 - Page 60

TERMINAL
I/O
PULL-
DOWN
5-V
TOLERANT
DESCRIPTION
NAME PIN
VCC1 25 — — — Analog power supply 1, +5 V
VCOM 26 — — — Voltage common decoupling
AGND1 27 — — — Analog ground 1
RSV2 28 — — — Reserved, tied to analog ground
VOUT8+ 29 O No No Positive analog output from DAC8
VOUT8- 30 O No No Negative analog output from DAC8
VOUT7+ 31 O No No Positive analog output from DAC7
VOUT7- 32 O No No Negative analog output from DAC7
VOUT6+ 33 O No No Positive analog output from DAC6
VOUT6- 34 O No No Negative analog output from DAC6
VOUT5+ 35 O No No Positive analog output from DAC5
VOUT5- 36 O No No Negative analog output from DAC5
VOUT4+ 37 O No No Positive analog output from DAC4
VOUT4- 38 O No No Negative analog output from DAC4
VOUT3+ 39 O No No Positive analog output from DAC3
VOUT3- 40 O No No Negative analog output from DAC3
VOUT2+ 41 O No No Positive analog output from DAC2
VOUT2- 42 O No No Negative analog output from DAC2
TERMINAL
I/O
PULL-
DOWN
5-V
TOLERANT
DESCRIPTION
NAME PIN
VOUT1+ 43 O No No Positive analog output from DAC1
VOUT1- 44 O No No Negative analog output from DAC1
RSV2 45 — — — Reserved, tied to analog ground
AGND2 46 — — — Analog ground 2
VCC2 47 — — — Analog power supply 2, +5 V
RSV2 48 — — — Reserved, tied to analog ground
(1) Open-drain conguration in out mode.
PCM1690 FUNCTIONAL BLOCK DIAGRAM
FUNCTIONAL BLOCK DIAGRAM
DAC
VOUT1+
VOUT1

DAC
VOUT2+
VOUT2

DAC
VOUT3+
VOUT3

DAC
VOUT4+
VOUT4

DAC
VOUT5+
VOUT5

DAC
VOUT6+
VOUT6

AGND2
VDD
DGND
VCOM
VCC1
AGND1
VCC2
DAC
VOUT7+
VOUT7

DAC
VOUT8+
VOUT8

DigitalFilter
and
Volume
PowerSupplyand
CommonVoltage
SCKI
SCKManager
RST
AMUTEO
AMUTEI
ZERO2
ZERO1
MODE
MD/SDA/DEMP
MC/SCL/FMT
MS/ADR0/RSV
TEST/ADR1/RSV
ControlInterface
(SPI/I C/HW)
2
LRCK
BCK
DIN4
DIN3
DIN2
DIN1
AudioInterface
PCM1690
SBAS448A– OCTOBER 2008 –REVISED JANUARY 2009.............................................................................................................................................. www.ti.com
8 Submit Documentation Feedback Copyright © 2008–2009, Texas Instruments Incorporated
Product Folder Link(s): PCM1690
60
