Proceeding : TOP COVER → COVER → HDMI PCB → VIDEO PCB
(1) Remove the connector.
Proceeding : TOP COVER → COVER → HDMI PCB → VIDEO PCB → PREOUT PCB
(1) Remove the connector.

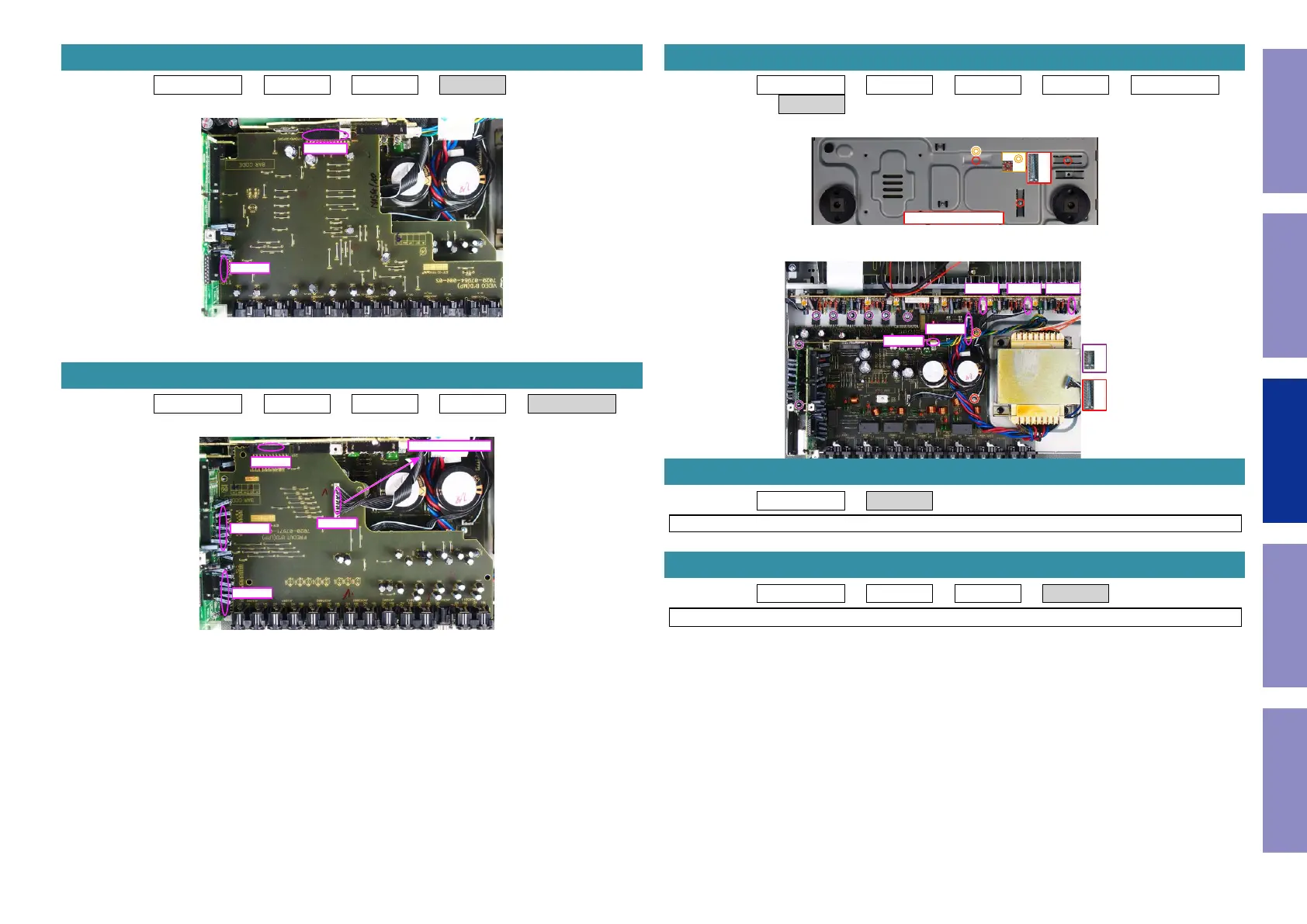

5. VIDEO PCB
CN5000
CN5003
6. PREOUT PCB
CN5601
CN5602
CN4704
CN5600
From AMP PCB
Proceeding : TOP COVER → COVER → HDMI PCB → VIDEO PCB → PREOUT PCB
→ MAIN PCB
(1) Remove the screws.
(2) Remove the screws. Remove the connector.
Proceeding : TOP COVER → SMPS PCB
See "EXPLODED VIEW" for instructions on removing the SMPS PCB.
Proceeding : TOP COVER → COVER → HDMI PCB → TRANS
See "EXPLODED VIEW" for instructions on removing the transformer (TRANS).
7. MAIN PCB
View from the bottom
x3
x1
x8
x2
CP402 CP403 CP405
CP4001
CP5003
8. SMPS PCB
9. TRANS
