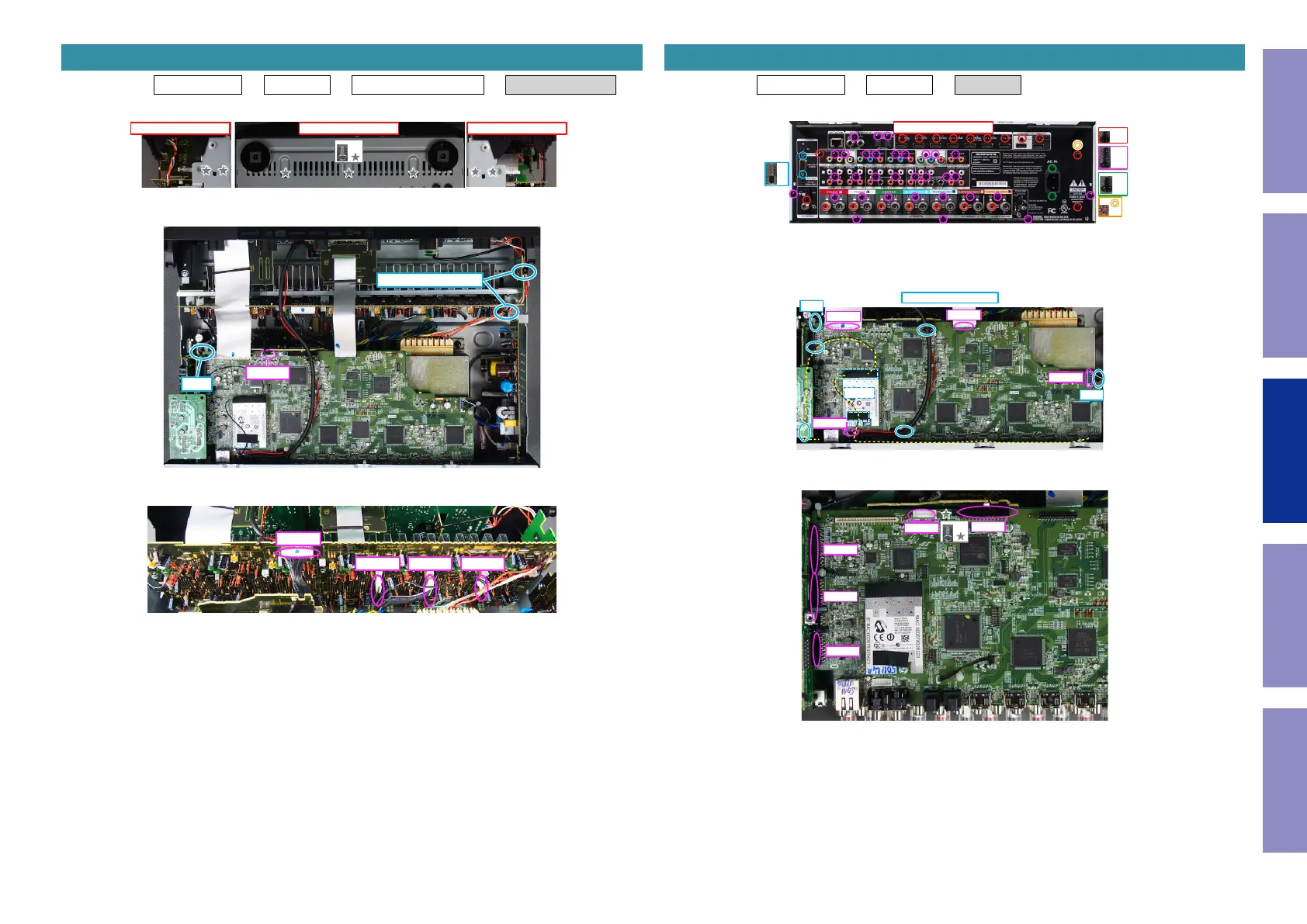

Marantz SR5011 - Radiator Assy

Proceeding : TOP COVER → COVER → FRONT PANEL ASSY → RADIATOR ASSY
(1) Remove the screws.
(2) Cut the wire clamps, then remove the CORD HOLDERs and connectors.
(3) Remove the connector.
3. RADIATOR ASSY
View from the bottom
Shooting direction: C Shooting direction: D
x7
N1022
CORD HOLDER
CUT
CP401
CP403CP402 CP405
Proceeding : TOP COVER → COVER → HDMI PCB
(1) Remove the screws.
(2) Cut the wire clamps, then remove the CORD HOLDERs and connectors.
Remove the TAPE. Remove the FFC.
(3) Remove the connector. Remove the screws.
4. HDMI PCB
Shooting direction: A
x13
x32
x2
x2
x1
FFC
FFC
N1008
N1033
CORD HOLDER x 4
CUT
TAPE
CUT
x1
N1036
N1022
N1014
N1016
N1020
67
Caution in
servicing
