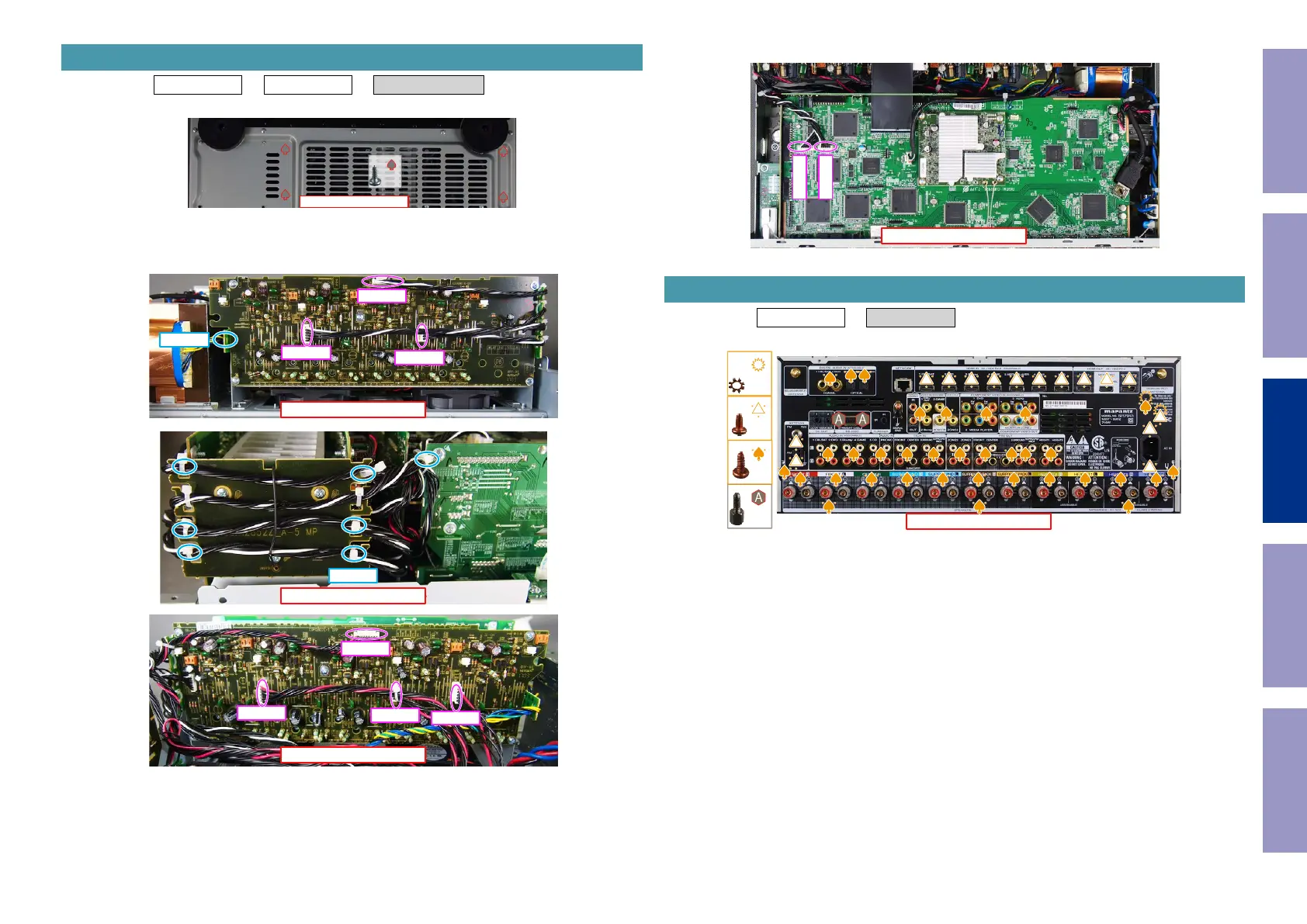

Marantz SR7013 - Radiator Assy; Rear Panel

Proceeding : TOP COVER → FRONT ASSY → RADIATOR ASSY
(1) Removethescrews.
(2) Cutthewireclamp,thenremovetheconnector.
2. RADIATOR ASSY
View from the bottom
x4
↑Shooting direction: B↑
↑Shooting direction: D↑
↑Shooting direction: A↑
CN462
CN708
CN707
CN701
CN702
CN703
CN461
CUT x7
CUT x1
(3) Removetheconnector.
Proceeding : TOP COVER → REAR PANEL
(1) Removethescrews.
↑Shooting direction: A↑
CN781 CN704
3. REAR PANEL
↑Shooting direction: A↑
x2
x34
x15
x2
