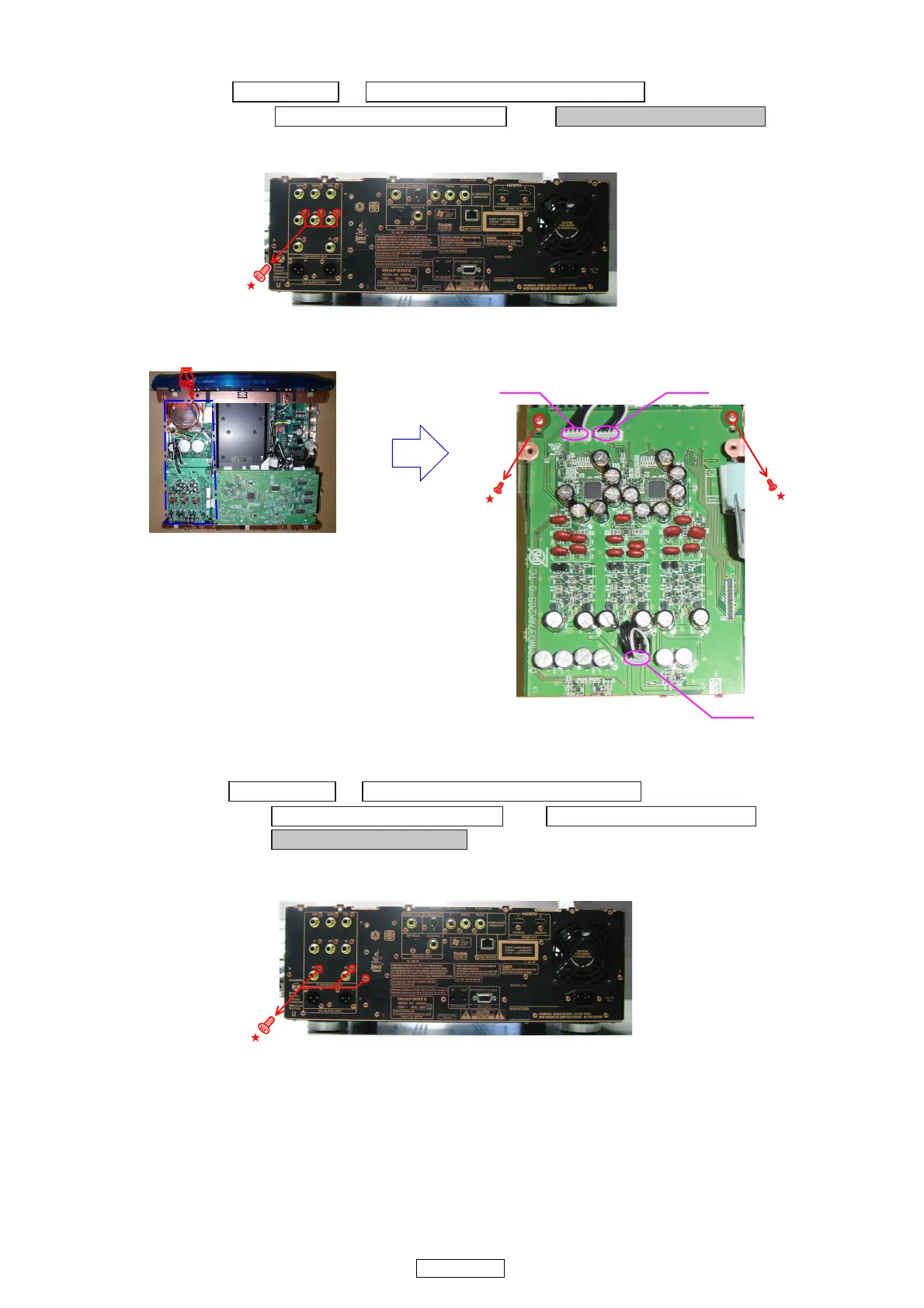

3. AUDIO SUR/CENTER UNIT
(1) Remove the screws.
(2) Removethescrews.
4. AUDIO FRONT L/R UNIT
(1) Removethescrews.
手順 : TOP COVER →
→
→
SIDE COVER (L) and (R) SUB ASSY
AUDIO SUR/BACK/S_W UNIT AUDIO SUR/CENTER UNIT
Direction of photograph: A
J554J552
J852
v
Proceeding : TOP COVER →
→
→
→
SIDE COVER (L) and (R) SUB ASSY
AUDIO SUR/BACK/S_W UNIT AUDIO SUR/CENTER UNIT
AUDIO FRONT L/R UNIT
Direction of photograph: A
