Marathon Electric DVR 2000E - Chassis Ground; Power (Field) Output; Relay Output; Communication Port

31
S
ection
4
Chassis Ground
The chassis ground terminal is labeled GND.
Power (Field) Output
The fi eld output terminals for connection to the generator exciter fi eld are labeled F+ and F-.
Relay Output
The common alarm relay output contact may be accessed at the terminals labeled AL1 and AL2. The relay output
is normally open.
Communication Port
The RS-232 port on the rear panel uses a DB-9 female connector. Figure 4-4 Illustrates the pin assignments of
the communication port and Table 4-3 identifi es the RS-232 connector pin functions. A standard communication
cable terminated with a DB-9 male connector is used for PC or hand-held computer interface with the DVR
®
2000E
as shown in Figure 4-5.

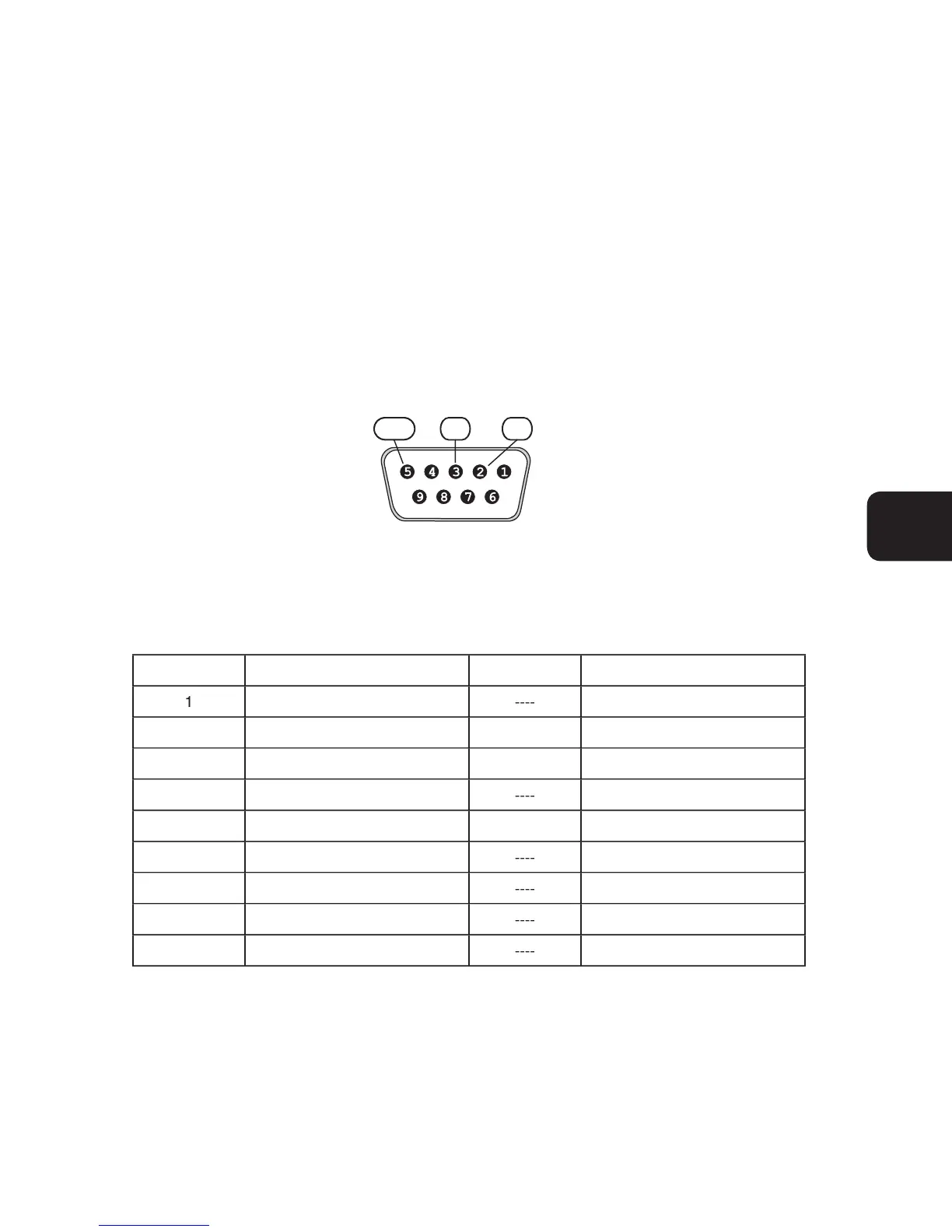

Figure 4-4. Communication Port Pin Assignments
Table 4-2. Communication Port Pin Functions
Pin
Function
Name
Direction
1
N/C
----
N/A
2
Transmit Data
TXD
From DVR
®
2000E
3
Receive Data
RXD
To DVR
®
2000E
4
N/C
----
N/A
5
Signal Ground
GND
N/A
6
N/C
----
N/A
7
N/C
----
N/A
8
N/C
----
N/A
9
N/C
----
N/A
TXD
SGND
RXD
