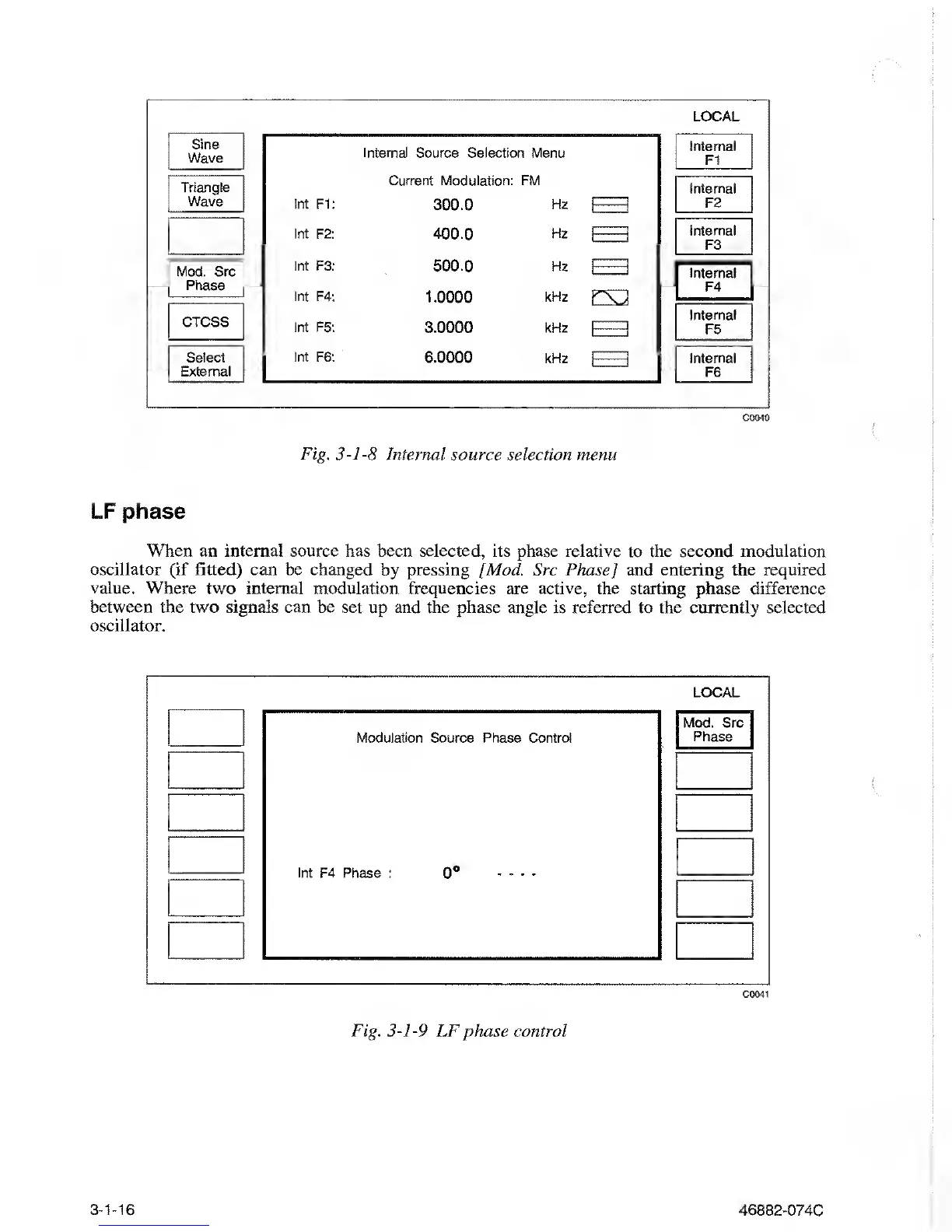

C0040
Fig.
3-1-8
Internal source selection menu
LF phase
When an internal source has been selected,
its
phase relative
to the second
modulation
oscillator
(if
fitted) can be changed
by pressing
[Mod.
Src Phase] and entering the required
value. Where
two internal modulation frequencies
are
active, the starting
phase
difference
between the two signals can be set
up
and
the phase angle is referred to the currently selected
oscillator.
C0041
Fig.
3-1-9
LFphase control
3-1-16
46882-074C
