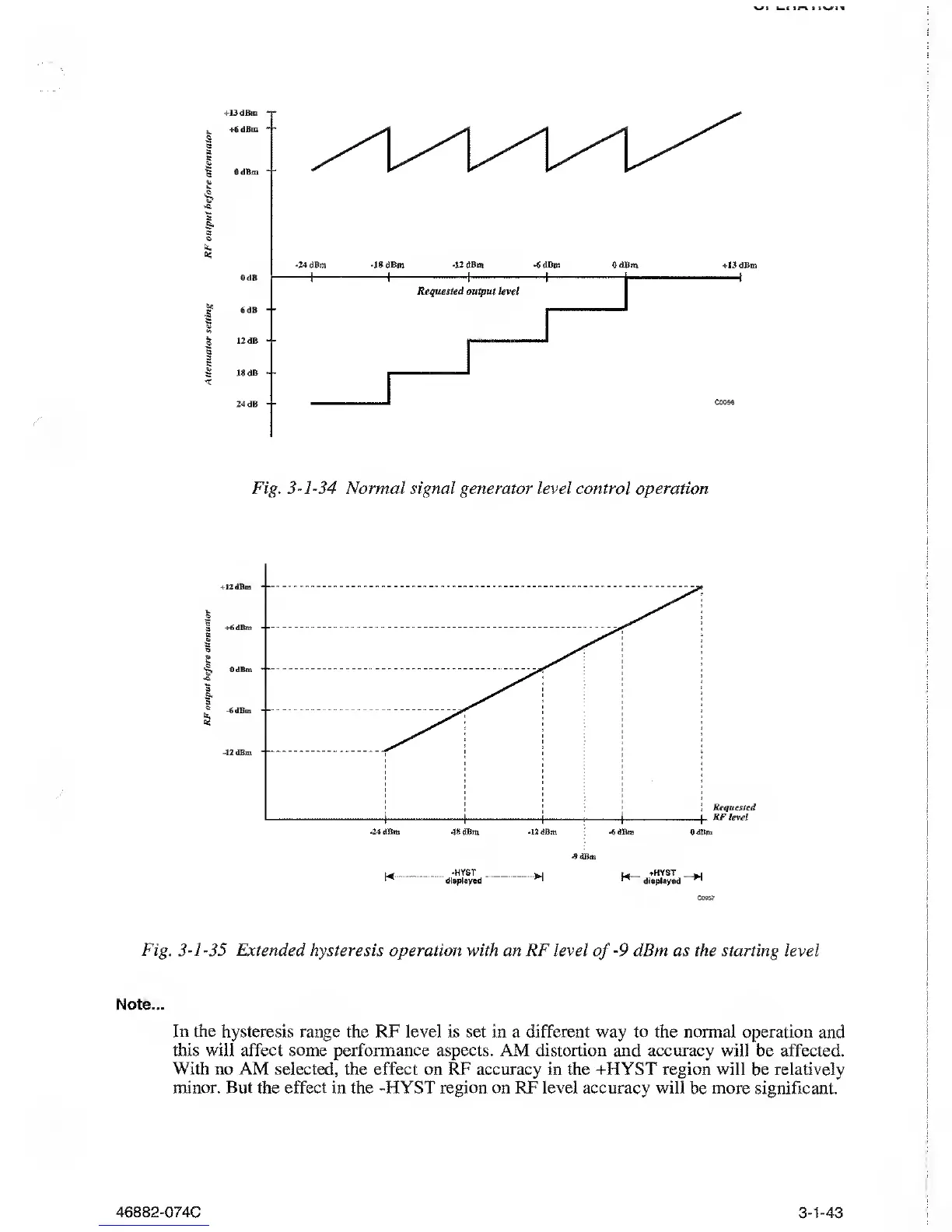

Fig.
3-1-34
Normal signal generator level control operation
-HYST
displayed
H
HYST
displayed
Fig.
3-1-35
Extended hysteresis operation with an RF level
of
-9 dBm as the starting
level
Note...
In the
hysteresis range the RF level is set in a different way to the normal operation
and
this will affect some performance aspects. AM distortion and
accuracy
will
be affected.
With no
AM selected, the effect on RF accuracy in the +HYST region will be relatively
minor. But the effect in the -HYST region on RF level accuracy will
be
more
significant.
