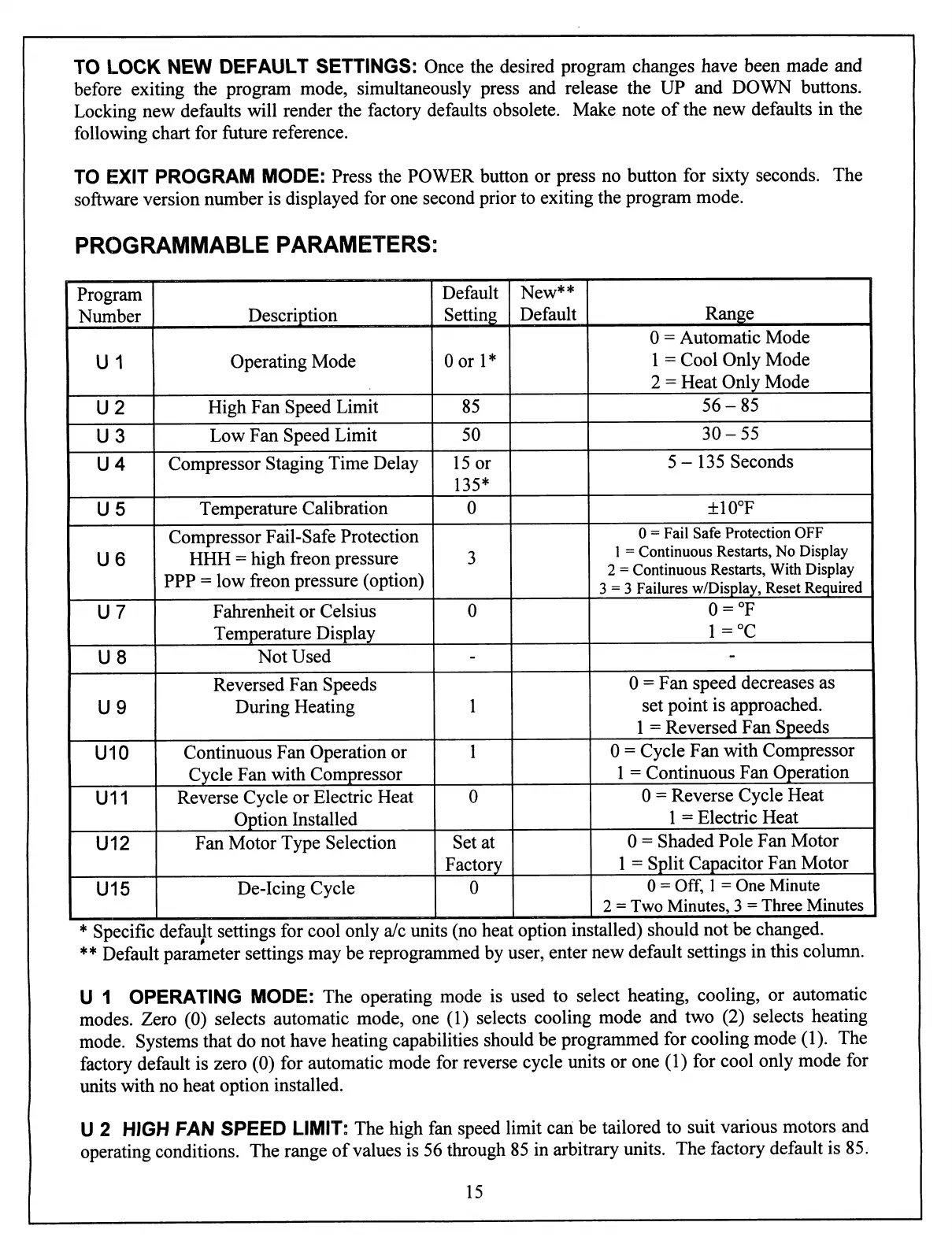

TO LOCK NEW DEFAULT SETTINGS: Once the desired program changes have been made and
before exiting the program mode, simultaneously press and release the UP and DOWN buttons.
Locking new defaults will render the factory defaults obsolete. Make note of the new defaults in the
following chart for future reference.
TO EXIT PROGRAM MODE: Press the POWER button or press no button for sixty seconds. The
software version number is displayed for one second prior to exiting the program mode.
PROGRAMMABLE PARAMETERS:
Program
Number
U1
U2
U3
U4
U5
U6
U7
U8
U9
U10
U11
U12
U15
Description
Operating Mode
High Fan Speed Limit
Low Fan Speed Limit
Compressor Staging Time Delay
Temperature Calibration
Compressor Fail-Safe Protection
HHH = high freon pressure
PPP = low freon pressure (option)
Fahrenheit or Celsius
Temperature Display
Not Used
Reversed Fan Speeds
During Heating
Continuous Fan Operation or
Cycle Fan with Compressor
Reverse Cycle or Electric Heat
Option
Installed
Fan Motor Type Selection
De-icing Cycle
Default
Setting
Oorl*
85
50
15 or
135*
0
3
0
-
1
1
0
Set at
Factory
0
New**
Default
Range
0 = Automatic Mode
1 = Cool Only Mode
2 = Heat Only Mode
56-85
30-55
5-135 Seconds
±10°F
0 = Fail Safe Protection OFF
1 = Continuous Restarts, No Display
2 = Continuous Restarts, With Display
3 = 3 Failures w/Display, Reset Required
0 = °F
1=°C
-
0 = Fan speed decreases as
set point is approached.
1 = Reversed Fan Speeds
0 = Cycle Fan with Compressor
1 = Continuous Fan Operation
0 = Reverse Cycle Heat
1 = Electric Heat
0 = Shaded Pole Fan Motor
1 = Split Capacitor Fan Motor
0 = Off, 1 = One Minute
2 = Two Minutes, 3 = Three Minutes
* Specific default settings for cool only a/c units (no heat option installed) should not be changed.
** Default parameter settings may be reprogrammed by user, enter new default settings in this column.
U 1 OPERATING MODE: The operating mode is used to select heating, cooling, or automatic
modes. Zero (0) selects automatic mode, one (1) selects cooling mode and two (2) selects heating
mode. Systems that do not have heating capabilities should be programmed for cooling mode (1). The
factory default is zero (0) for automatic mode for reverse cycle units or one (1) for cool only mode for
units with no heat option installed.
U 2 HIGH FAN SPEED LIMIT: The high fan speed limit can be tailored to suit various motors and
operating conditions. The range of values is 56 through 85 in arbitrary units. The factory default is 85.
