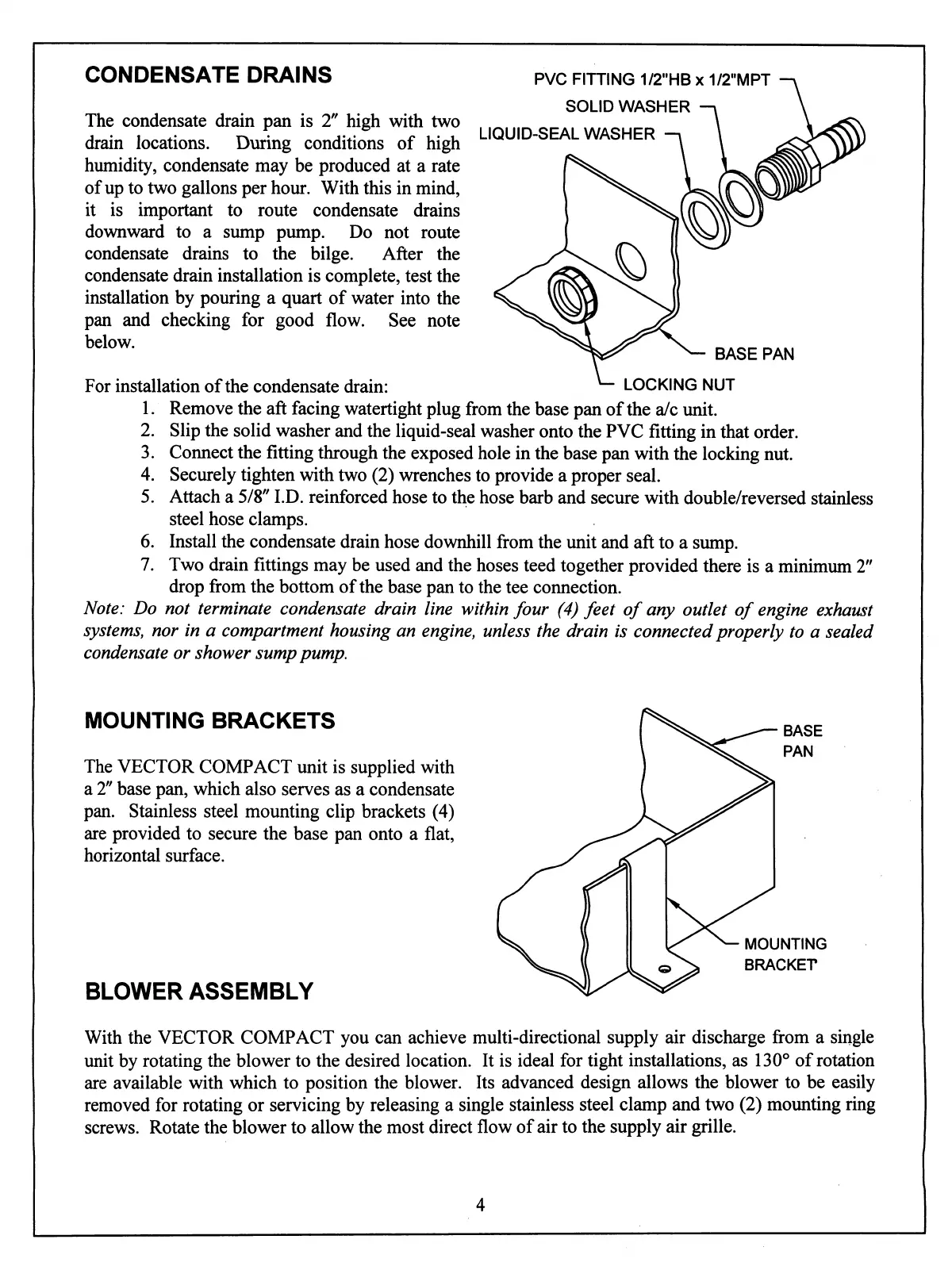

CONDENSATE

DRAINS

The

condensate

drain

pan

is

2"

high

with

two

drain

locations.

During

conditions

of

high

humidity,

condensate

may

be

produced

at

a

rate

of

up

to

two

gallons

per

hour.

With

this

in

mind,

it

is

important

to

route

condensate

drains

downward

to

a

sump

pump.

Do

not

route

condensate

drains

to

the

bilge.

After

the

condensate

drain

installation

is

complete,

test

the

installation

by

pouring

a

quart

of

water

into

the

pan

and

checking

for

good

flow.

See

note

below.

PVC

FITTING

1/2"HB

x

1/2"MPT

SOLID

WASHER

LIQUID-SEAL

WASHER

BASE

PAN

For

installation

of

the

condensate

drain:

*-

LOCKING

NUT

1.

Remove

the

aft

facing

watertight

plug

from

the

base

pan

of

the

a/c

unit.

2.

Slip

the

solid

washer

and

the

liquid-seal

washer

onto

the

PVC

fitting

in

that

order.

3.

Connect

the

fitting

through

the

exposed

hole

in

the

base

pan

with

the

locking

nut.

4.

Securely

tighten

with

two

(2)

wrenches

to

provide

a

proper

seal.

5.

Attach

a

5/8"

I.D.

reinforced

hose

to

the

hose

barb

and

secure

with

double/reversed

stainless

steel

hose

clamps.

6.

Install

the

condensate

drain

hose

downhill

from

the

unit

and

aft

to

a

sump.

7.

Two

drain

fittings

may

be

used

and

the

hoses

teed together

provided

there

is

a

minimum

2"

drop

from

the

bottom

of

the

base

pan

to

the

tee

connection.

Note:

Do

not

terminate

condensate

drain

line

within

four

(4)

feet

of

any

outlet

of

engine

exhaust

systems,

nor

in

a

compartment

housing

an

engine,

unless

the

drain

is

connected

properly

to

a

sealed

condensate or

shower

sump

pump.

MOUNTING

BRACKETS

The

VECTOR

COMPACT

unit

is

supplied

with

a

2"

base

pan,

which

also

serves

as

a

condensate

pan.

Stainless

steel

mounting

clip

brackets

(4)

are

provided

to

secure

the

base

pan

onto

a

flat,

horizontal

surface.

BLOWER

ASSEMBLY

MOUNTING

BRACKET

With

the

VECTOR

COMPACT

you

can

achieve

multi-directional

supply

air

discharge

from

a

single

unit

by

rotating

the

blower

to

the

desired

location.

It

is

ideal

for

tight

installations,

as

130°

of

rotation

are

available

with

which

to

position

the

blower.

Its

advanced

design allows

the

blower

to

be

easily

removed

for

rotating

or

servicing

by

releasing

a

single

stainless

steel

clamp

and

two

(2)

mounting

ring

screws.

Rotate

the

blower

to

allow

the

most

direct

flow

of

air

to

the

supply

air

grille.
