Marine Air Systems vector compact - Spacing Allowances and Dimensions

PROPRIETARY NOTE: THE INFORMATION CONTAINED WITHIN THIS
DOCUMENT IS THE PROPERTY OF MARINE AIR SYSTEMS INC. ANY
ATTEMPT TO COPY OR DISTRIBUTE WITHOUT WRITTEN CONSENT
FROM MARINE AIR SYSTEMS INC. SHALL BE CONSIDERED
UNLAWFUL AND CAN BE CONTESTED IN A COURT OF LAW.
REV
1
J
K
L
DATE
N/A
4/16/98
1/13/99
5/10/99
REVISION
NO REVISION 'I'
REVISED DIMENSIONS ON 10 & 12 HV UNITS
CHANGED 24K M DIMENSION
ADDED 5K UNIT
DWG
DKM
DKM
DKM
DKM
APR
R P
D D

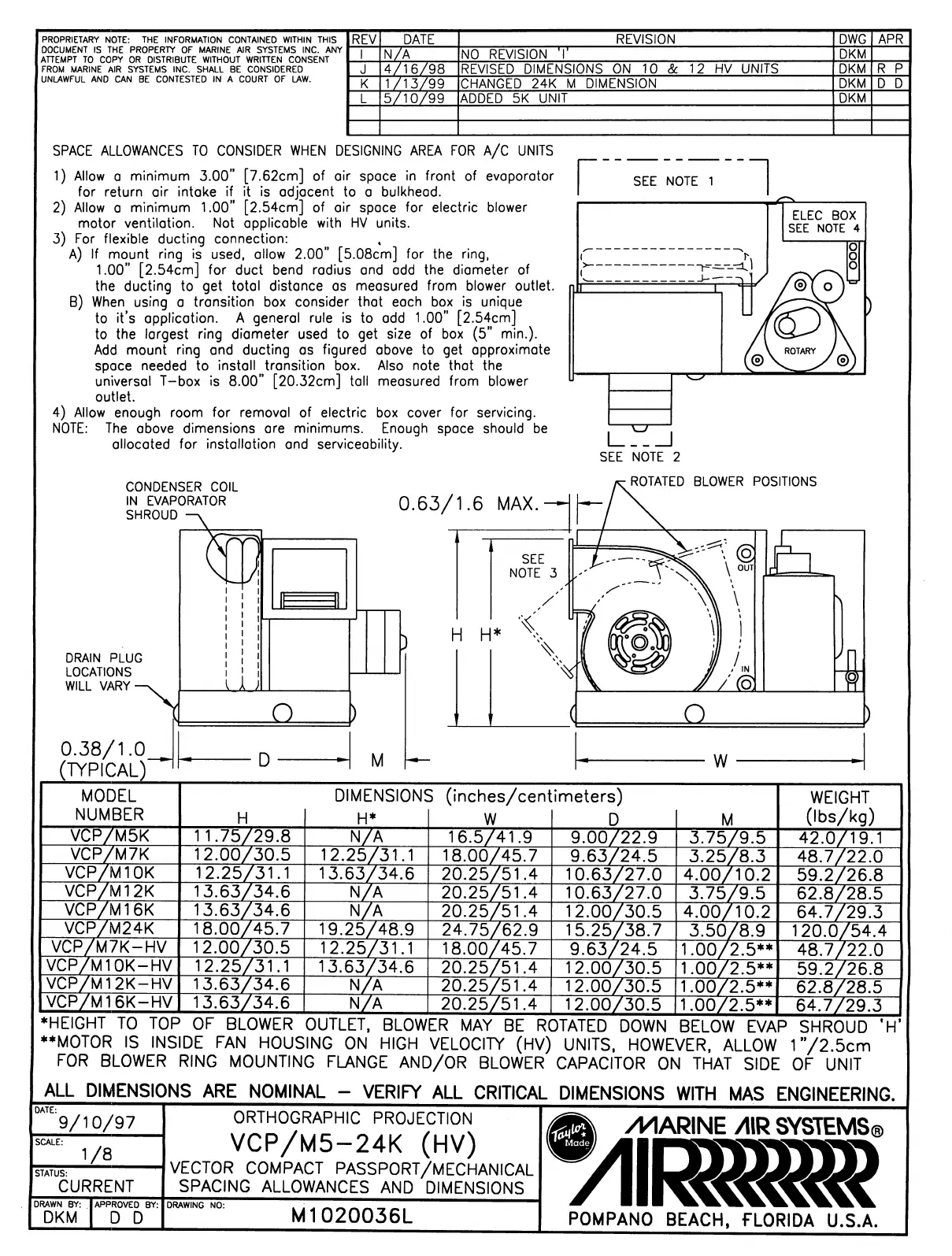

SPACE ALLOWANCES TO CONSIDER WHEN DESIGNING AREA FOR A/C UNITS
1) Allow a minimum 3.00" [7.62cm] of air space in front of evaporator
for return air intake if it is adjacent to a bulkhead.
2) Allow a minimum 1.00" [2.54cm] of air space for electric blower
motor ventilation. Not applicable with HV units.
3) For flexible ducting connection:
A) If mount ring is used, allow 2.00" [5.08cm] for the ring,
1.00" [2.54cm] for duct bend radius and add the diameter of
the ducting to get total distance as measured from blower outlet.
B) When using a transition box consider thot each box is unique
to it's application. A general rule is to add 1.00" [2.54cm]
to the largest ring diameter used to get size of box (5" min.).
Add mount ring and ducting as figured above to get approximate
space needed to install transition box. Also note that the
universal T-box is 8.00" [20.32cm] tall measured from blower
outlet.
4) Allow enough room for removal of electric box cover for servicing.
NOTE: The above dimensions are minimums. Enough space should be
allocated for installation and serviceability.
CONDENSER COIL
IN EVAPORATOR
SHROUD —\
0.63/1.6 MAX.—
DRAIN PLUG
LOCATIONS
WILL VARY —
0.38/1.0
(TYPICAL)
1 >
D
SEE
NOTE 3
/
H H*
■<
M
\
ROTATED BLOWER POSITIONS
MODEL
NUMBER
H
DIMENSIONS (inches/centimeters)
H* W D M
WEIGHT
(lbs/kg)
VCP/M5K
1 1.75/29.8 N/A
16.5/41.9
9.00/22.9
3.75/9.5
42.0/19.1
VCP/M7K
12.00/30.5
12.25/31.1
12.25/31.1 18.00/45.7
9.63/24.5
3.25/8.3 48.7/22.0
VCP/M10K
13.63/34.6
20.25/51.4
10.63/27.0
4.00/10.2 59.2/26.8
VCP/M12K
13.63/34.6
20.25/51.4"
10.63/27.0
3.75/9.5
62.8/28.5
VCP/M16K
13.63/34.6
20.25/51.4
12.00/30.5
4.00/10.2
64.7/29.3
VCP/M24K
VCP/M7K-HV
18.00/45.7
19.25/48.9
24.75/62.9
18.00/45.7
15.25/38.7
9.63/24.5
3.50/8.9
1.00/2.5**
120.0/54.4
12.00/30.5
12.25/31.1
48.7/22.0
VCP/M10K-HV
12.25/31.1
13.63/34.6
20.25/51.4"
12.00/30.5
1.00/2.5**
59.2/26.8
VCP/M12K-HV
13.63/34.6
N/A
20.25/51.4
12.00/30.5"
1.00/2.5**
62.8/28.5
VCP/M16K-HV
13.63/34.6 N/A
20.25/51.4
12.00/30.5
1.00/2.5** 64.7/29.3
♦HEIGHT TO TOP OF BLOWER OUTLET, BLOWER MAY BE ROTATED DOWN BELOW EVAP SHROUD 'H'
**MOTOR IS INSIDE FAN HOUSING ON HIGH VELOCITY (HV) UNITS, HOWEVER, ALLOW 1 "/2.5cm
FOR BLOWER RING MOUNTING FLANGE AND/OR BLOWER CAPACITOR ON THAT SIDE OF UNIT
ALL DIMENSIONS ARE NOMINAL - VERIFY ALL CRITICAL DIMENSIONS WITH MAS ENGINEERING.
9/10/97
1/8
ITATUS:
CURRENT
JRAWN BY:
DKM
APPROVED BY:
D D
ORTHOGRAPHIC PROJECTION
VCP/M5-24K (HV)
VECTOR COMPACT PASSPORT/MECHANICAL
SPACING ALLOWANCES AND DIMENSIONS
DRAWING NO:
M1020036L
/MARINE /IIR SYSTEMS®
POMPANO BEACH, FLORIDA U.S.A.
