4. Belt installation

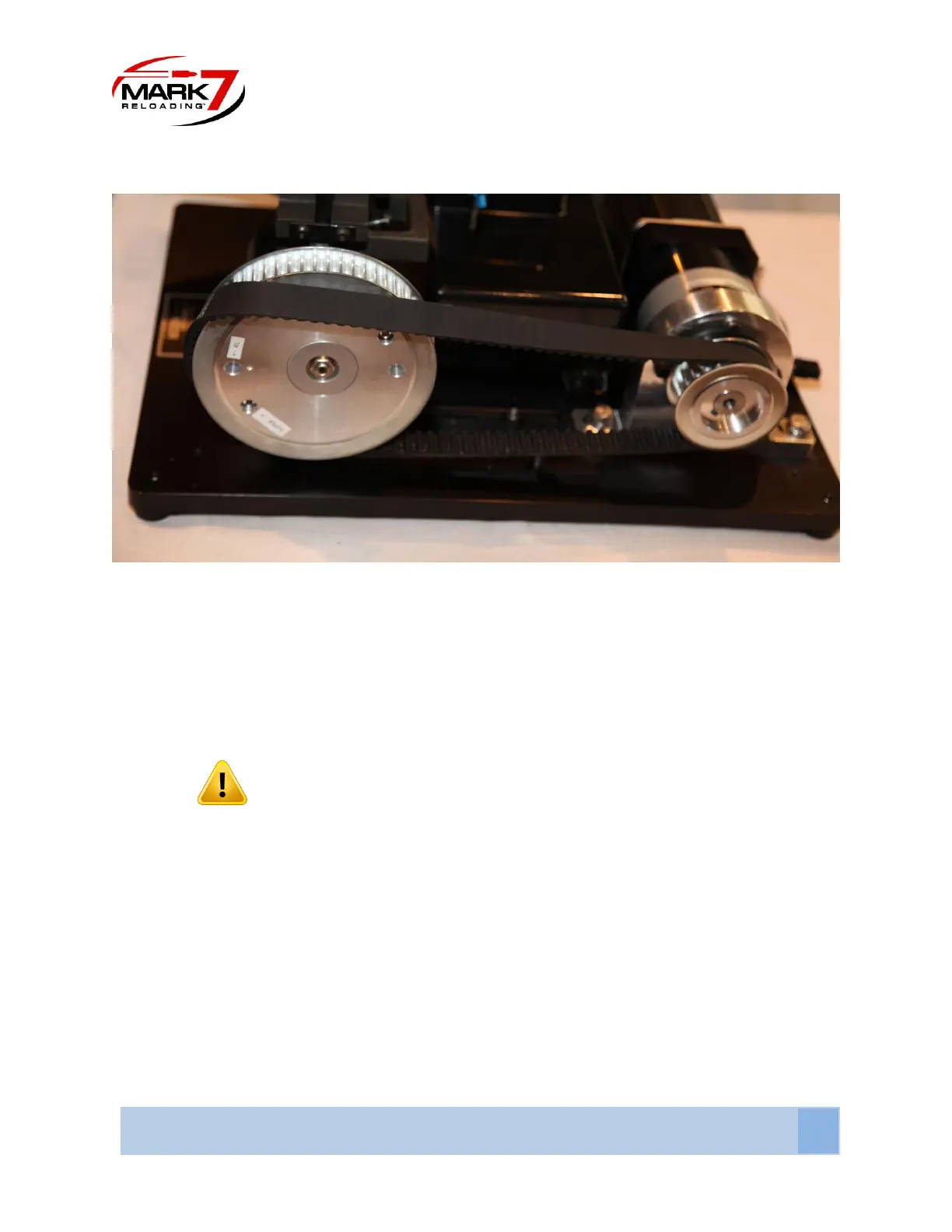

Figure 4: Installing belt on large Sprocket
Loosen both motor mount hex bolts with a 9/16 wrench. Then rotate the large sprocket counterclockwise
so that the press is in the full down stroke position.
Place belt over small sprocket making sure motor mount is all the way forward. Loop belt under bottom
section of large sprocket and rotate the large sprocket clockwise to properly seat the belt.
WARNING
The press may rotate back to the up position so you may need an assistant to hold it in position.
