Mark 7 1050 PRO Autodrive - Console Side I;O Inputs; (Optional)

20
Mark 7® Reloading 1050 User Manual version 9.3, Copyright 2020 All rights reserved
11. Console Side inputs

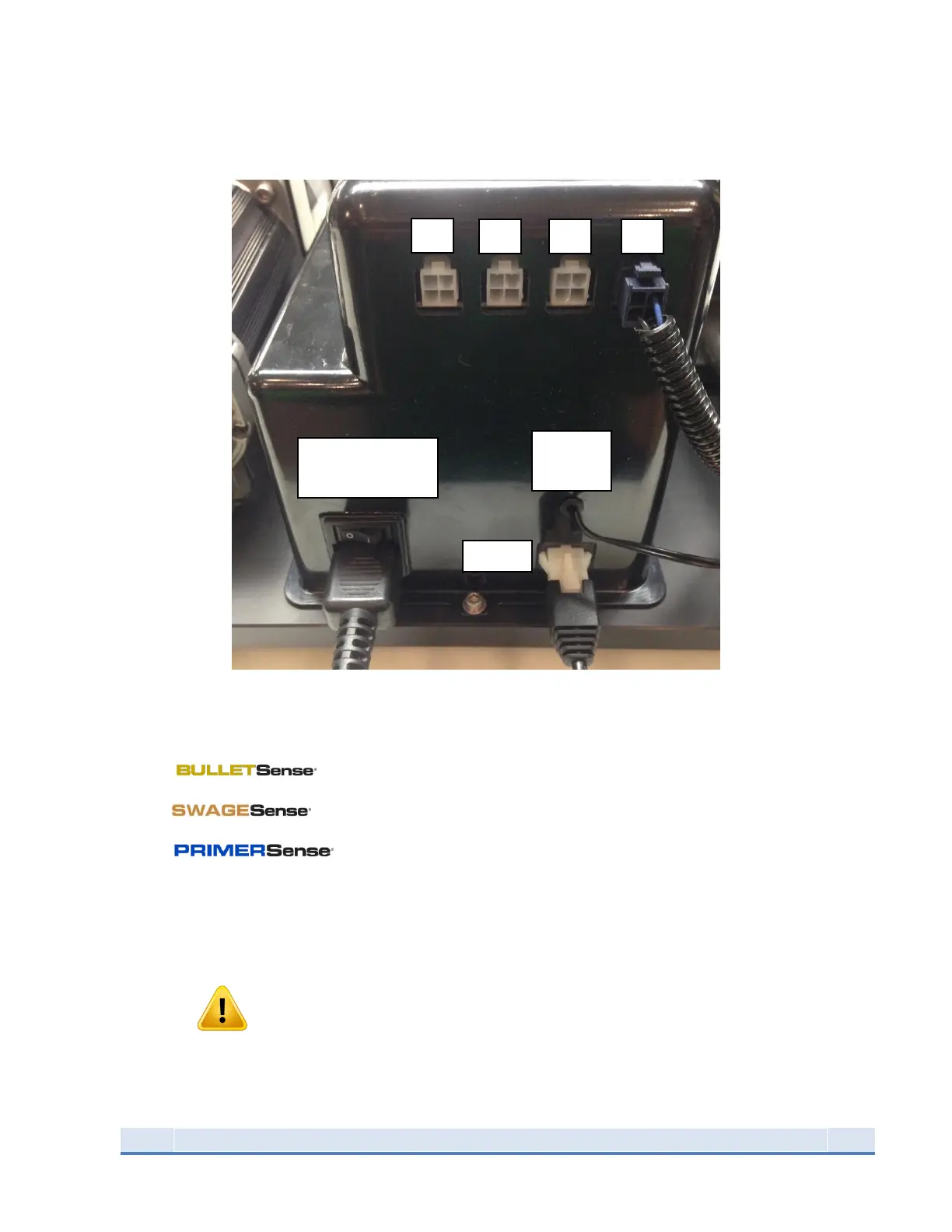

Figure 15: Side of Console Inputs
Port #4. Mark 7® PowderCheck™ Sensor (Optional)
Port #3. (Optional)
Port #2. (Optional)
Port #1. (Optional)
AC INPUT & Power ON/OFF Receptacle: Units are configured in either 110V or 220V.
6-Pin: Motor to Console DC Power Cord
Tablet Power Cord: Connect to tablet
WARNING
Never power on the console switch without the 6-pin molex connector plugged in and never install this
connector with the power already on since the DC voltage would damage the motor's input contacts.
#4
6-PIN
AC INPUT RECT.
POWER ON/OFF
TABLET
POWER
CORD
#3
#2
#1
