Mark 7 1050 PRO Autodrive - Belt Guard Installation

MARK 7® RELOADING 1050 USER MANUAL VERSION 9.3, COPYRIGHT 2020 ALL
RIGHTS RESERVED
13

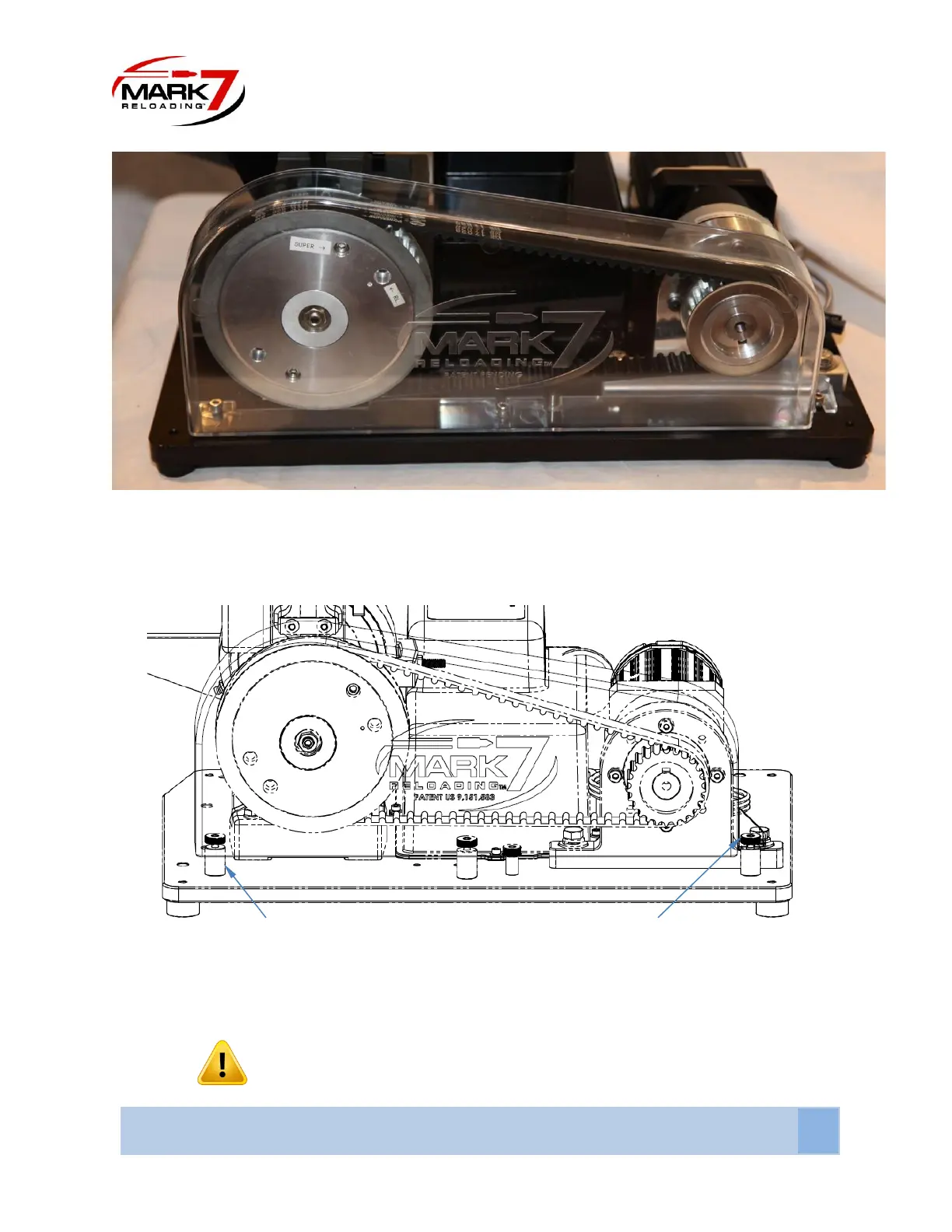

6. Belt Guard installation
Figure 6: Belt Guard Installed (RL 1050/Super 1050)
For the 1050 RL and Super 1050 fasten the belt guard to the baseplate using the 3X 10-32 Thumb
screws. Do not over-tighten.
Figure 7: Belt Guard Installed (RL 1100/CP2000)
For RL 1100/CP2000 use 3X 7/8” high Spacers and 3X 1-1/8” long Thumb Screws from Hardware Kit
provided.
WARNING Never operate the machine without the belt guard installed properly.
3X Spacer
3X 1-1/8” Long Thumb Screw
