10. Console Rear inputs

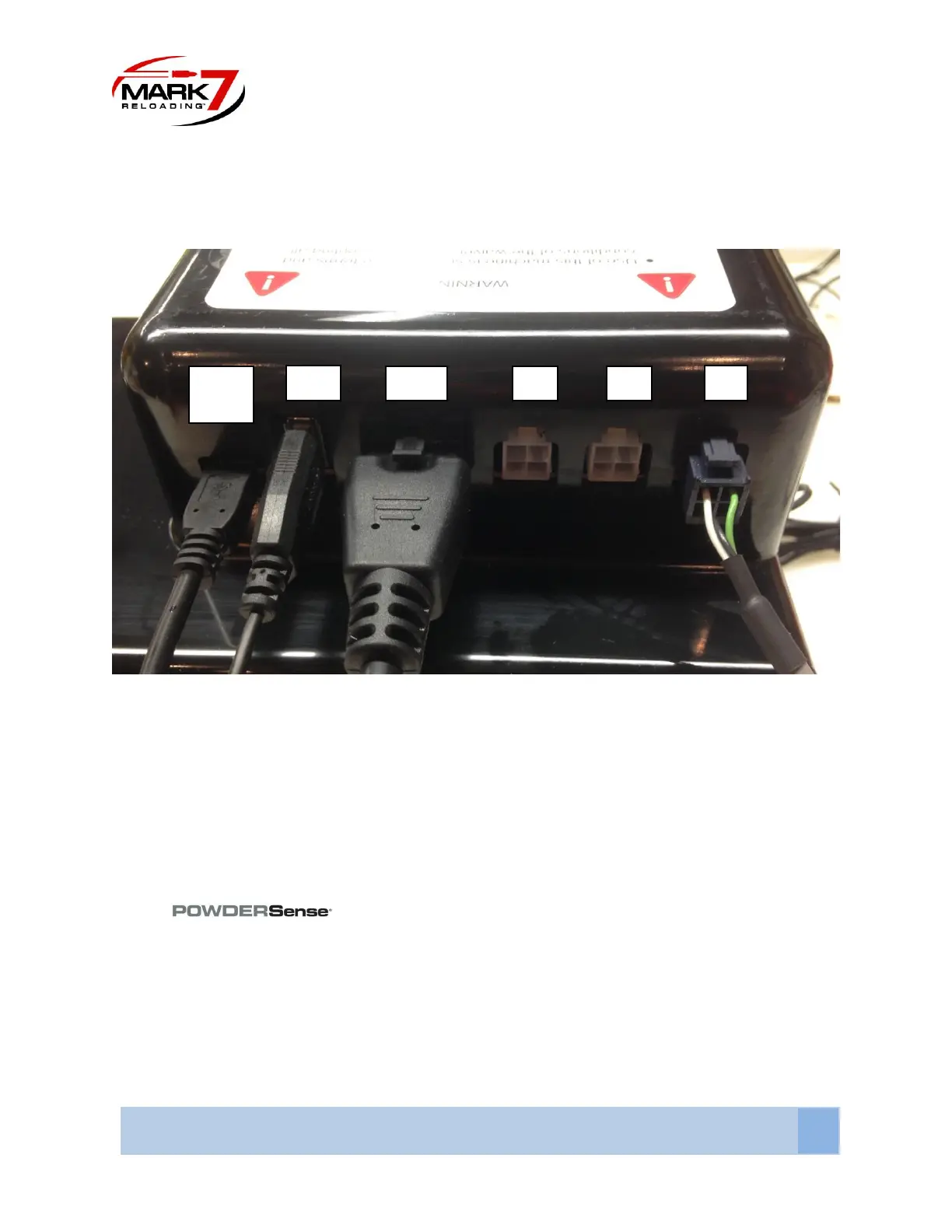

Figure 14: Rear of console Inputs
Before powering on the Mark 7 Units please make the following connections
Micro-USB: Tablet to Console USB data communication cable
USB: Motor to Console USB data communication cable
8-Pin: Motor to console signal cable
Port #7. *original sensor attached to Dillon Powder Check (optional)
Port #6. 1050 Safety shield and Wired Remote Stop (optional)
Port #5. DecapSense™ Sensor (Optional)
Micro
USB
USB
8-Pin
#7
#6
#5
