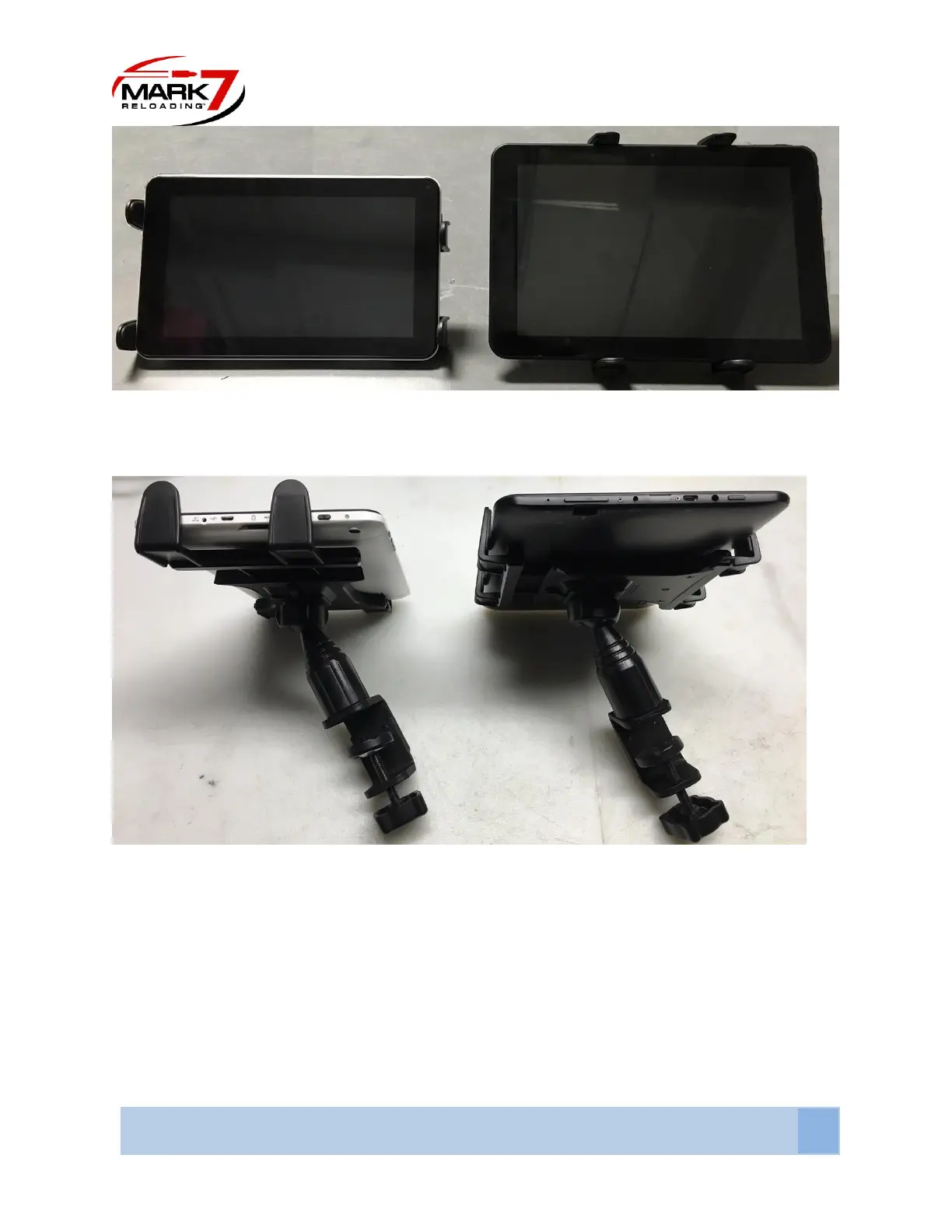

Figure 11: Tablet Holder orientation for 9 inch tablet (left) Upgraded 10 inch (Right)
Figure 12: Side view of Tablet holder 9 inch (left) Upgraded 10 inch (Right)
Once tablet holder is positioned, carefully pull tablet holder to expand enough to accommodate tablet
as shown above. Be mindful that the arms do not cover the power or the micro-USB inputs on the
tablet. There are 2 sets of right angle adapters, the short adapters are used on the 7” and 10” tablets
and the longer adapters are used on the 9”.
