Mark Levinson 383 - Rear Panel Connections; Inputs and Outputs Overview; Speaker Binding Posts

19
MARK LEVINSON Nº383
INTEGRATED AMPLIFIER
m
S/N Made in the U.S.A.
RS-232
PHASTLink™ compatible
comm
trigger
input
ir input
trigger
output
~ ac mains
right
record out
left
record out
control ports
right inputs
12 345
left inputs
543 2 1
1 12 3 4 5 6
7 8 9 10 9 8 7

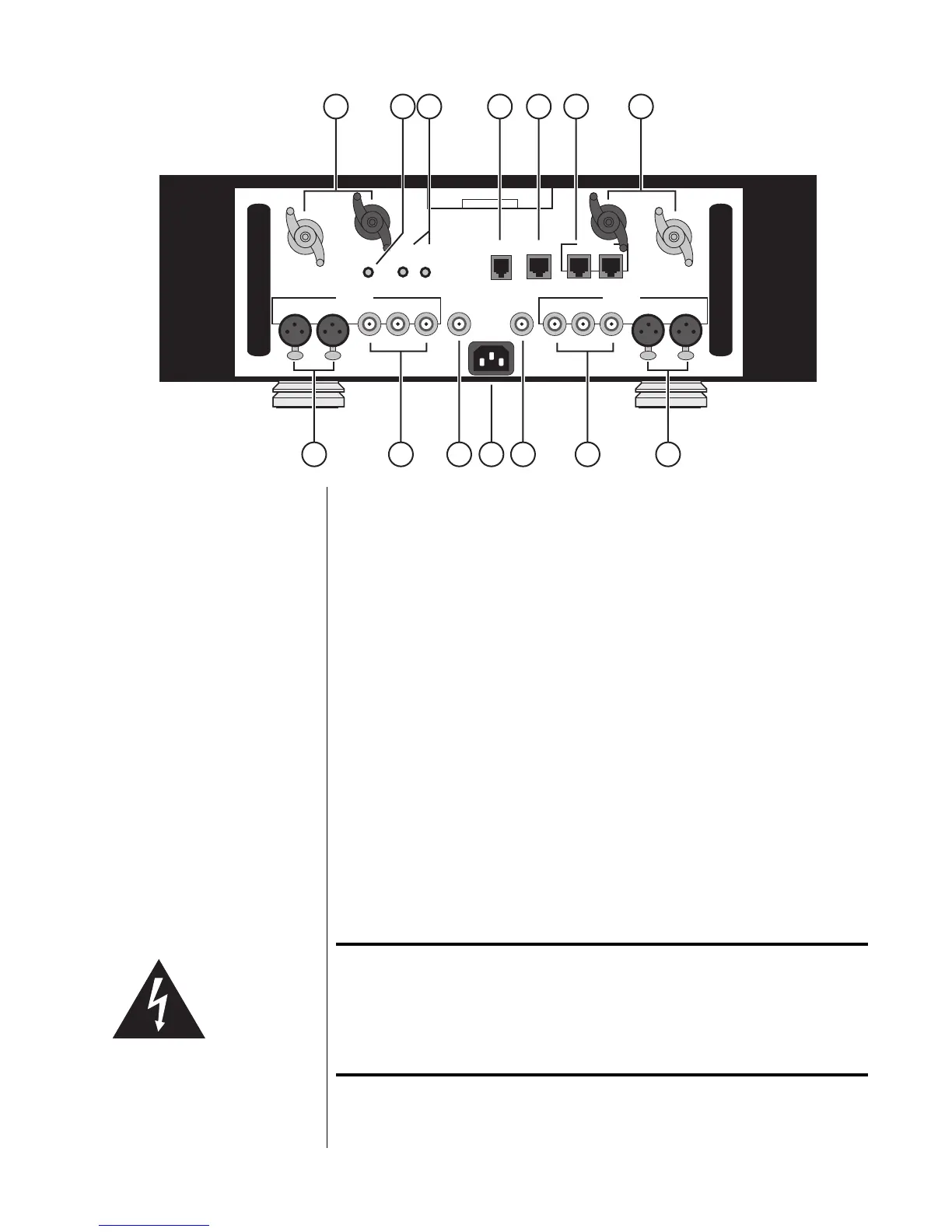

Rear Panel
a note about the
inputs and outputs
All left-channel inputs and outputs are on the left of the rear panel as
seen from the front, and all right-channel inputs and outputs are on
the right of the rear panel as seen from the front. This design mini-
mizes any possible confusion when changing connections once the unit
is installed, while also maximizing channel separation in this dual
monaural design.
1 Speaker Binding Posts
The Mark Levinson Nº383 is equipped with custom made, gold-
plated, high-current binding posts for output termination to a
loudspeaker system. To take full advantage of the amplifier’s sonic
quality, we recommend using high-quality speaker cable; please
see your Mark Levinson dealer.
Caution! NEVER connect a power amplifier’s output terminals to
any device other than a loudspeaker.
NEVER short-circuit the amplifier’s output terminals.
NEVER connect the output terminals of one amplifier
to the output terminals of another amplifier.
