3
Connections to the Programming Track
The programming track must not have direct electrical contact with the layout and no other users (example:
lighting, turnout decoders, lighted track bumpers, etc.) may be connected to it. It is required to read, program,
and edit locomotives / powered units in the formats DCC or Motorola (MM2). No programming track is required
for registering mfx locomotives.

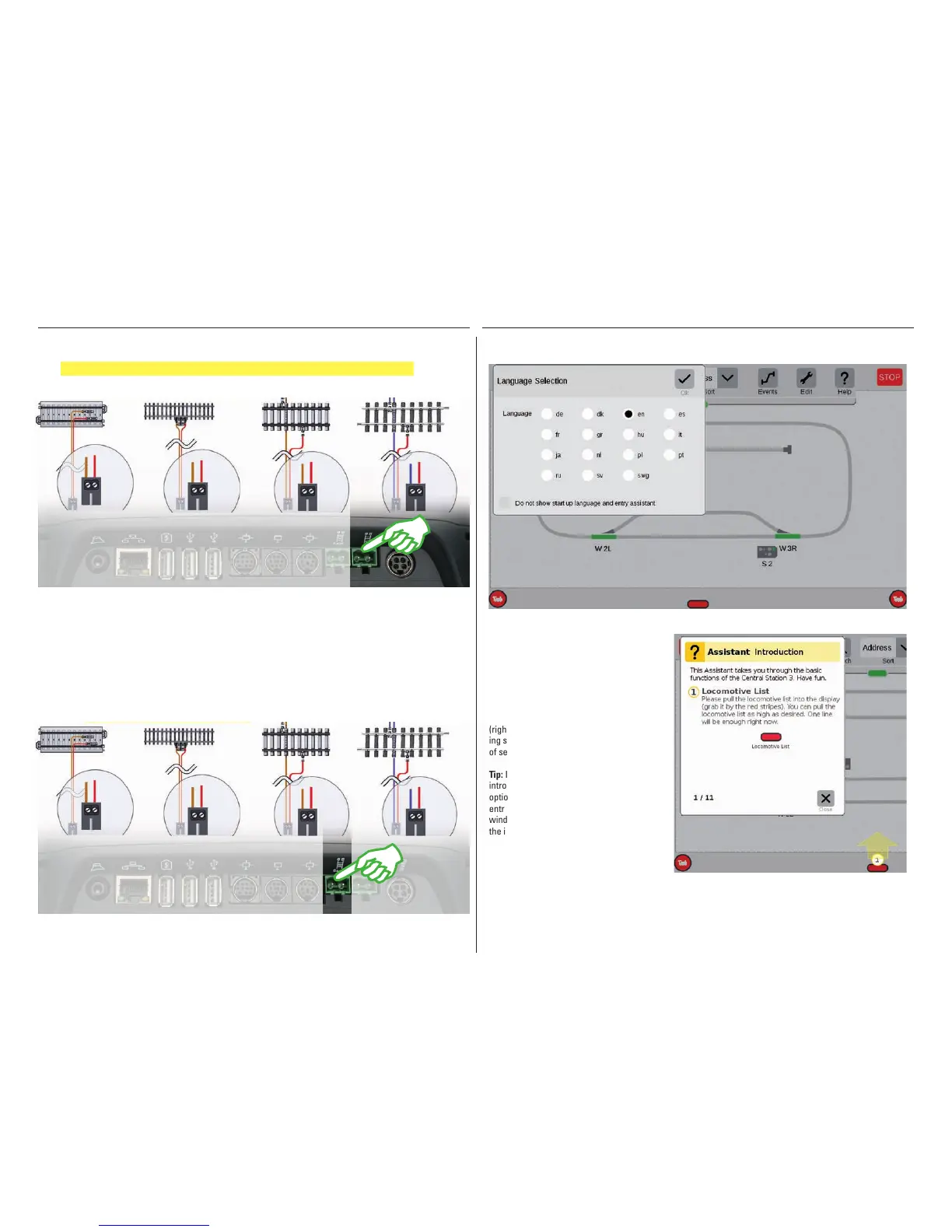

Connections to a Layout
C Track connection K Track connection 1 Gauge connection LGB connection
Make sure you have the correct polarity: red = track current (B), brown/blue = ground (0)
Programming track for
C Track
Programming track for
K Track
Programming track for
1 Gauge
Programming track for
LGB
Selecting the Language / Introduction Assistant
After you turn it on, the CS3 will greet you
with the language selection dialog (upper
image). Here you can set the language for
the user interface. The English language is
already pre-selected. Confirm your choice
with a tap of your finger on „Ok“.
The introduction assistant will then appear
(right image). He will present basic operat-
ing steps for the CS3 interface with the help
of several short exercises.
Tip: In the beginning work through the
introduction assistant once. Activate the
option „Do not show start up language and
entry assistant“ in the language selection
window so that the language dialog and
the introduction assistant no longer start
automatically when starting the CS3 in the
future. You can reverse this decision at any
time in the system settings (see Page 32).
