Step 4: Optional Accessory Connections (continued)
8
Starter Disable Wiring:

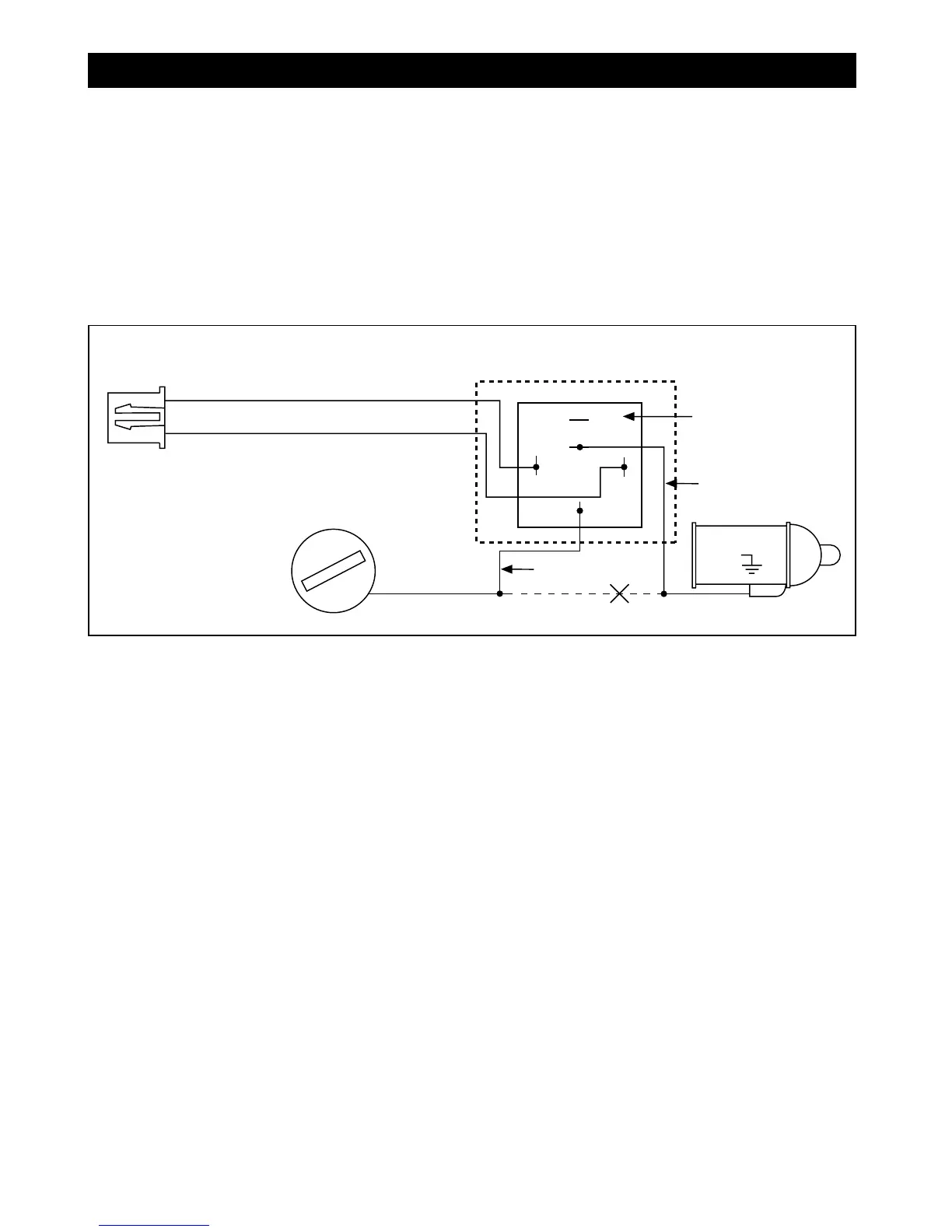

Using the wiring information and diagram below, connect the optional starter disable relay as
follows:
A. Locate the “Start Only Wire” coming from the ignition key switch and cut it.
B. Connect the ends of the cut start wire the black wires coming from the ALA-RPS relay pack.
C. Plug in the orange 2-pin plug into the orange socket located at the rear of alarm module.
To test the starter disable system refer to the starter disable testing procedures located in the
testing section of this manual.
87
87a
86
85
30
"ACC" "START"
"OFF" "ON"
Cut
Starter
Relay Pack
Supplied
Starter Disable Connection
Yellow Wire (Ign. Switched +12VDC)
Orange Wire
(Ground When Armed Alarm Output)
Red
Wire
White
Wire
Orange
2-Pin Plug
M5A-IM 9/10/04 9:27 AM Page 8
