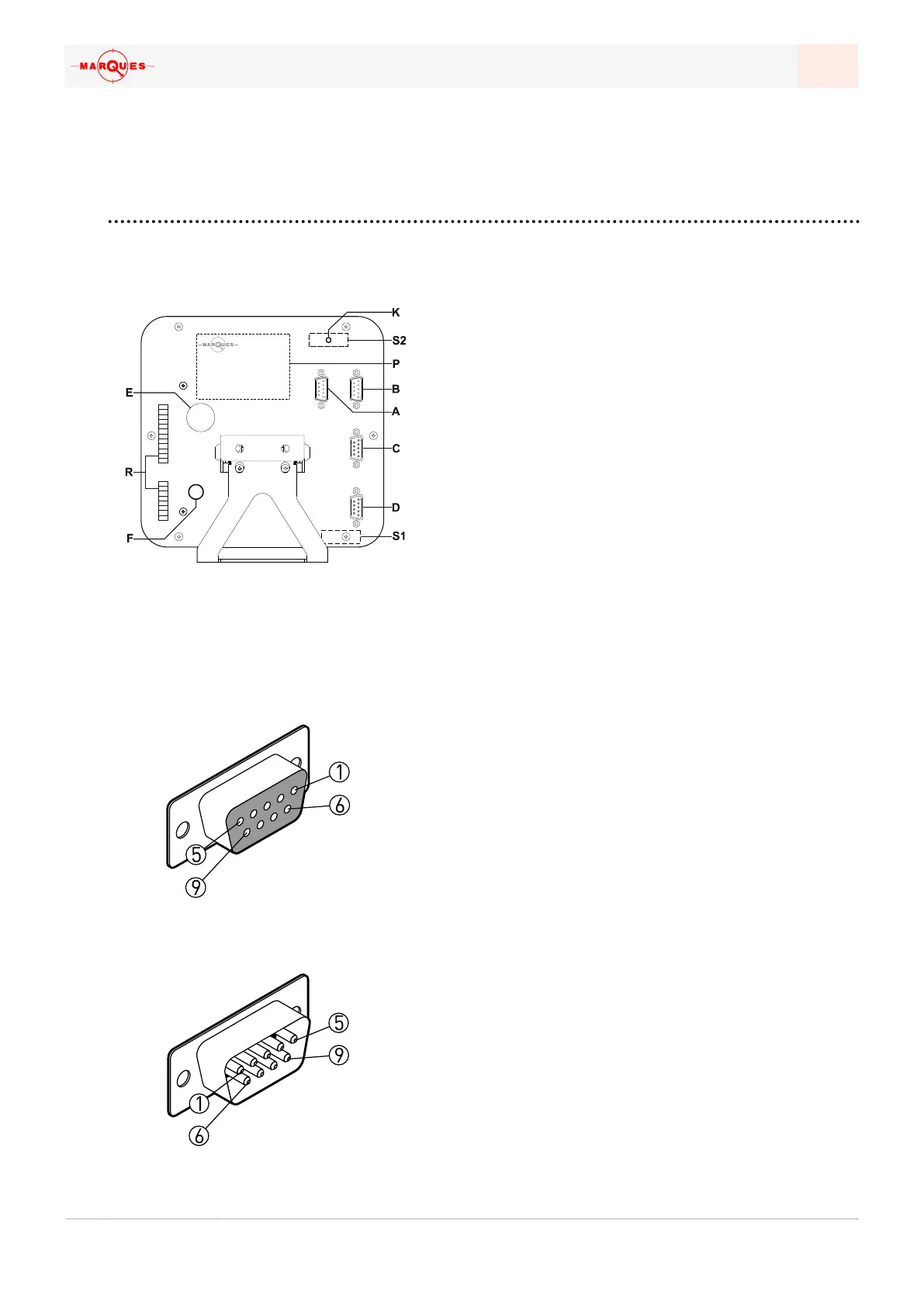

DESCRIPTION OF THE INDICATOR'S PHYSICAL COMPONENTS
A
B
C
D
E
F
R
P
S1
S2
K
COM2
COM1
Cell connector / Plataform 2
Cell connector / Plataform 1
Reserved
Conector / Feed
I/O Option
Plate of characteristics
Seal
Adjust Seal
Adjust Seal
RS-232 CONNECTORS [COM1 / COM2]
Female plug - DE-9 (D-SUB) Pin Function
1
2
3
4
5
6
7
8
9
Sense -
Signal -
Shield
Signal +
Sense +
Excitation -
Excitation +
S-
Out-
SH
Out+
S+
V-
V+
Male plug - DE-9 (D-SUB) Pin Function
1
2
3
4
5
6
7
8
9
TxD
RxD
Ground
TX
RX
GND
Physical Characteristics
