8.5 WIEGAND ACCESS
SOLO-NX unit has onboard support for 2 Wiegand output based device. With the user of external
replicator more Wiegand devices can be connected to the unit.
Configuration of first Wiegand interface is found in Digital interface tab. First Wiegand interface
can be found on board with a dedicated Wiegand connector and cables.

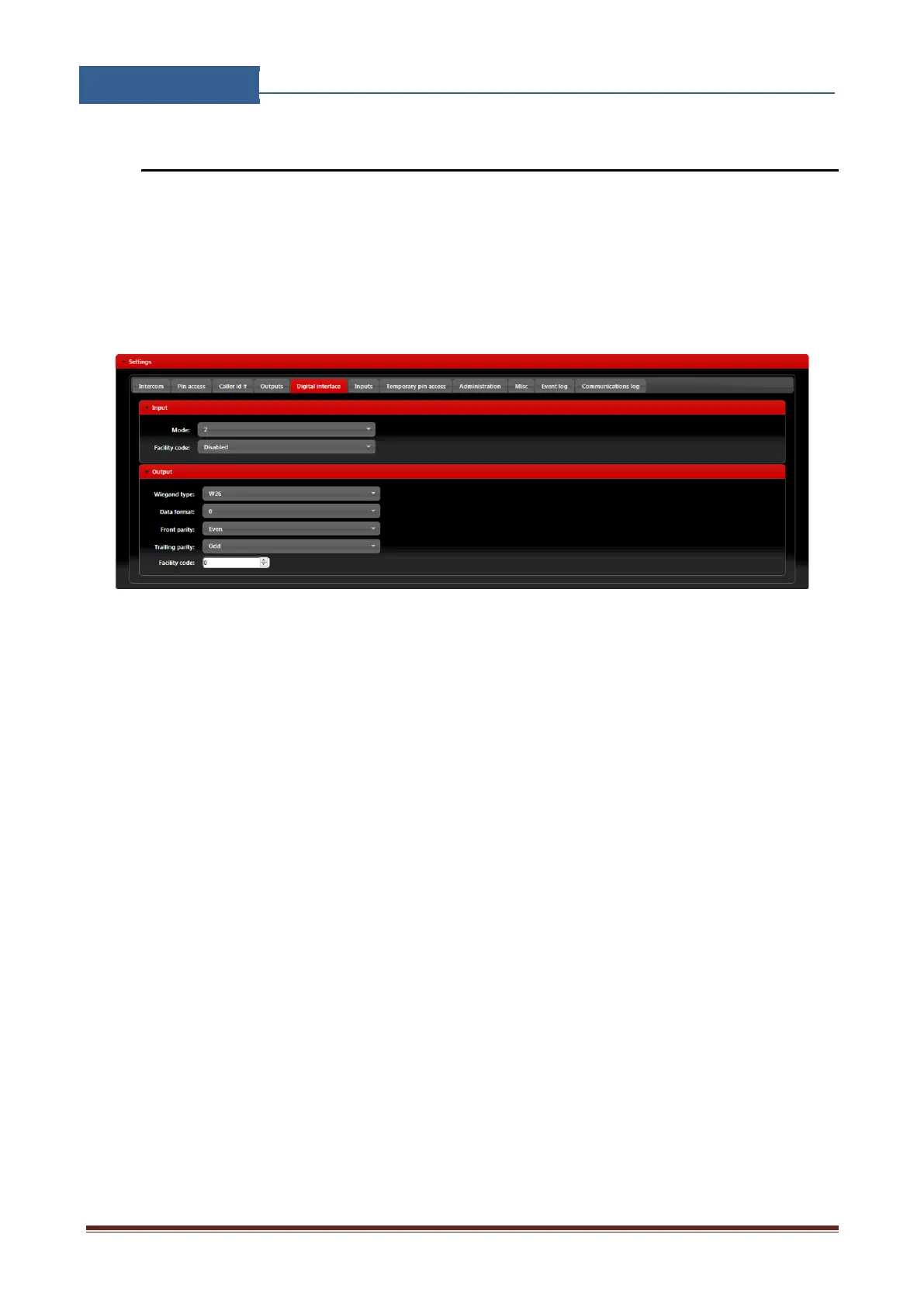

Figure 7: WEB Server-First Wiegand interface support.
• Mode: Select appropriate data formatting (Advise unit provider for more info if needed,
mode 2 is most common setting)
• Facility code: User can Enable or Disable facility code field.
