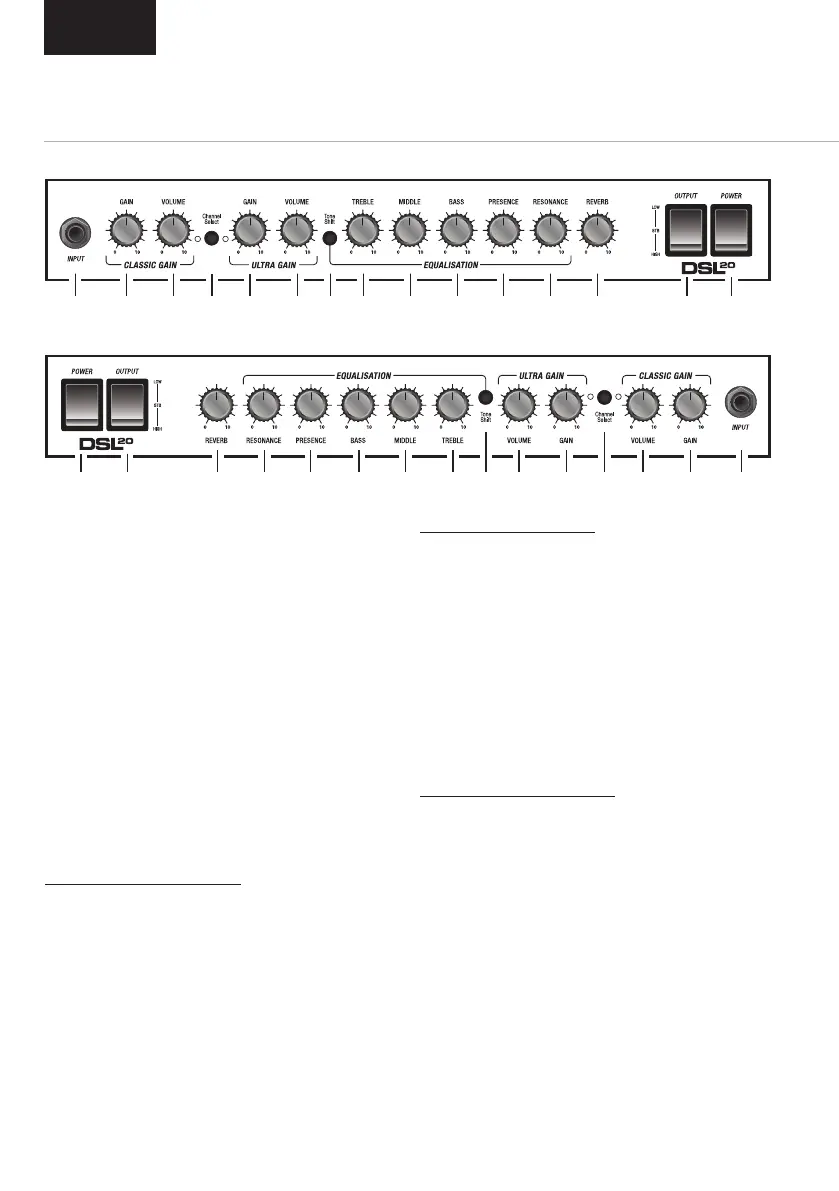

FRONT PANEL FUNCTIONS
1. INPUT
Connect your guitar here using a ¼” jack
instrument cable.
2. CHANNEL SELECT
Press to switch between classic gain and ultra
gain channels:
• The classic gain channel status light will
illuminate green to indicate the classic gain
channel is selected.
• The ultra gain channel status light will
illuminate red to indicate the ultra gain
channel is selected.
Channels can also be selected using the supplied
footswitch.
CLASSIC GAIN CHANNEL
3. GAIN
Controls the gain level for the classic gain
channel. Use this control to adjust the amount
of input gain/signal sent into the preamp stage.
Running a higher gain seng increases the level
of distoron in your sound.
4. VOLUME
Controls the volume level of the classic gain channel.
ULTRA GAIN CHANNEL
5. GAIN
Controls the gain level for the ultra gain channel.
Use this control to adjust the amount of input
gain/signal sent into the preamp stage. Running
a higher gain seng increases the level of
distoron in your sound.
6. VOLUME
Controls the volume level of the ultra gain channel.
EQUALISATION SECTION
7. TONE SHIFT
Tone shi recongures the preamp EQ, giving you
a disnctly dierent sound. When tone shi is
engaged, high and low frequencies are accentuated
and mid frequencies are cut.
8. TREBLE
Controls the higher frequency content of your
sound. Turning clockwise will increase the highs
making the sound brighter.
9. MIDDLE
Controls the middle frequencies of your
sound. Turning clockwise increases the level of
1 3 4 2 5 6 7 8 9 10 11 12 13 14 15
