16. MAINS INPUT
The supplied mains power lead is connected
here. The mains input voltage rang that your
amp has been built for is shown on the rear
panel.
Warning: before powering on, ensure the amp is
compable with the mains voltage of the country
that the amp is being used in. If you have any
doubt, please get advice from a qualied person.
17. FX LOOP RETURN
Connect the output of an external FX pedal or
processor.
18. FX LOOP SEND
Connect the input of an external FX pedal or
processor.
19. F/S
Connect the supplied channel footswitch here
(PEDL-90012).
20. AUDIO IN
Connect an external device here to pracce with
or jam along to music.
21. EMULATED OUT
Frequency-compensated line level output
REAR PANEL FUNCTIONS
for headphones. This output features cabinet
emulaon by Soube®. This means the sound
from this output includes simulaon of the sound
of a speaker and a cabinet.
Warning: When using the DSL20HR head for
‘silent’ pracce or DI recording, only disconnect
the speaker cabinet from the amplier’s rear
panel while the amp is switched o. Never unplug
the speaker cable from the speaker cabinet while
it is sll connected to the amplier rear panel.
This may damage your amp.
22. SPEAKER OUTPUTS
Connect an oponal 1 x 16Ohm extension
speaker cabinet, or 1x8Ohm cabinet, or
2x16Ohm cabinets for the DSLCR combo.
Warning: Any other speaker conguraon may
stress or damage the amp.
Designed by Marshall Amplificaon Plc,
Bletchley, Milton Keynes, England
MADE IN VIETNAM
BARCODE
PANL-91087-02-v.4

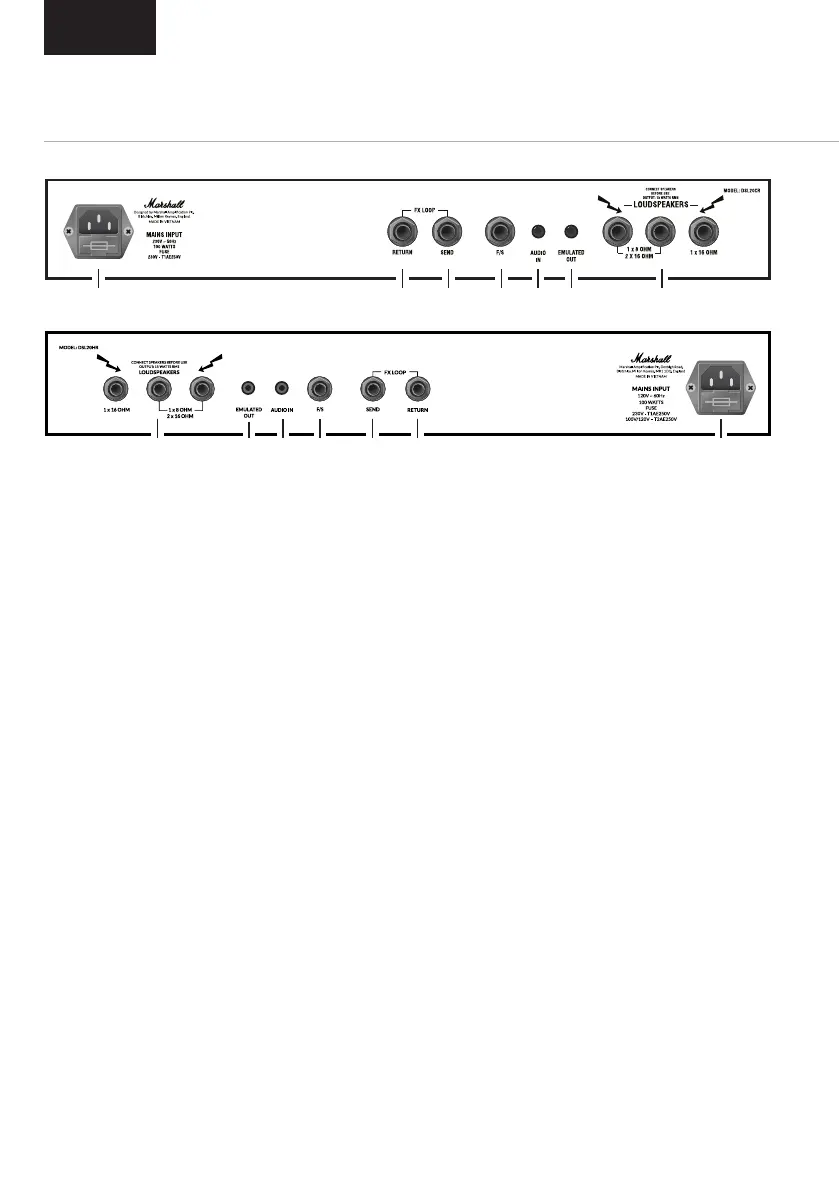

16 17 18 19 20 21 22
DSL20CR
DSL20HR
16171819202122
