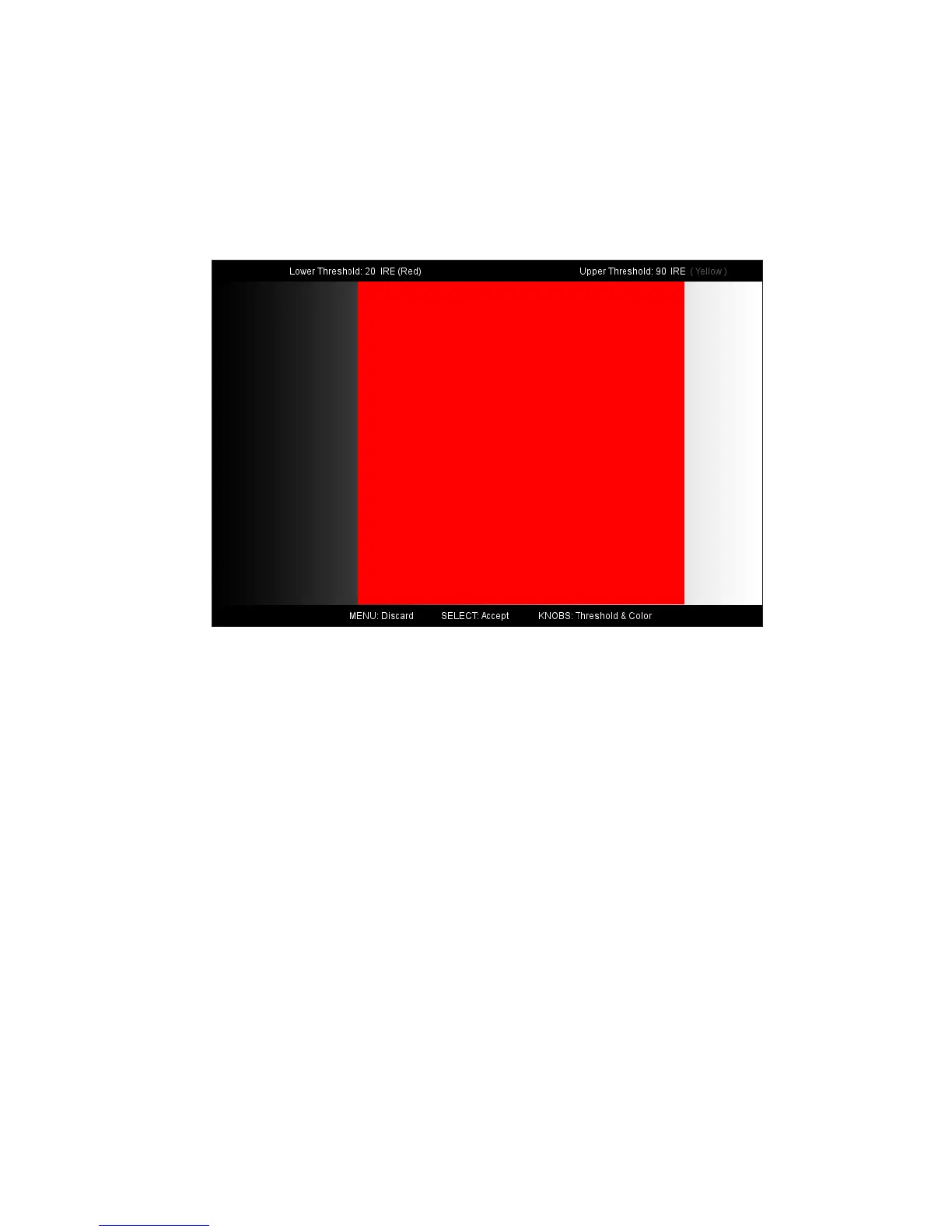

In the image above, the Lower Threshold has been se o 20 IRE (Red). This means that any part o he image UNDER 20 IRE
will be “colored” in RED. Also, the Upper Threshold has been se o 90 IRE (Yellow). This means that any part o he image
OVER 90 IRE will be “colored” in YELLOW.
Invert
The Clip funcon can also be inverted to filter the area between the Upper and Lower Threshold. The color selected
for the Lower Threshold acts as the color for all inverted Clip data.
In the image above, the Lower Threshold is se o 20 IRE and the Upper Threshold is se o 90 IRE. The Clip Invert will
filter all data in between 20 IRE and 90 IRE and color it RED.
Monochrome
Enabling Monochrome in the Clip filter will convert all video to monochrome first, and then apply the Clip filter. This
helps visually filtered data stand ou rom regular color video.
Apply To Waveform
Enabling Monochrome in the Clip filter will convert all video to monochrome first, and then apply the Clip filter. This
helps visually fi
ltered data stand ou rom regular color video.
