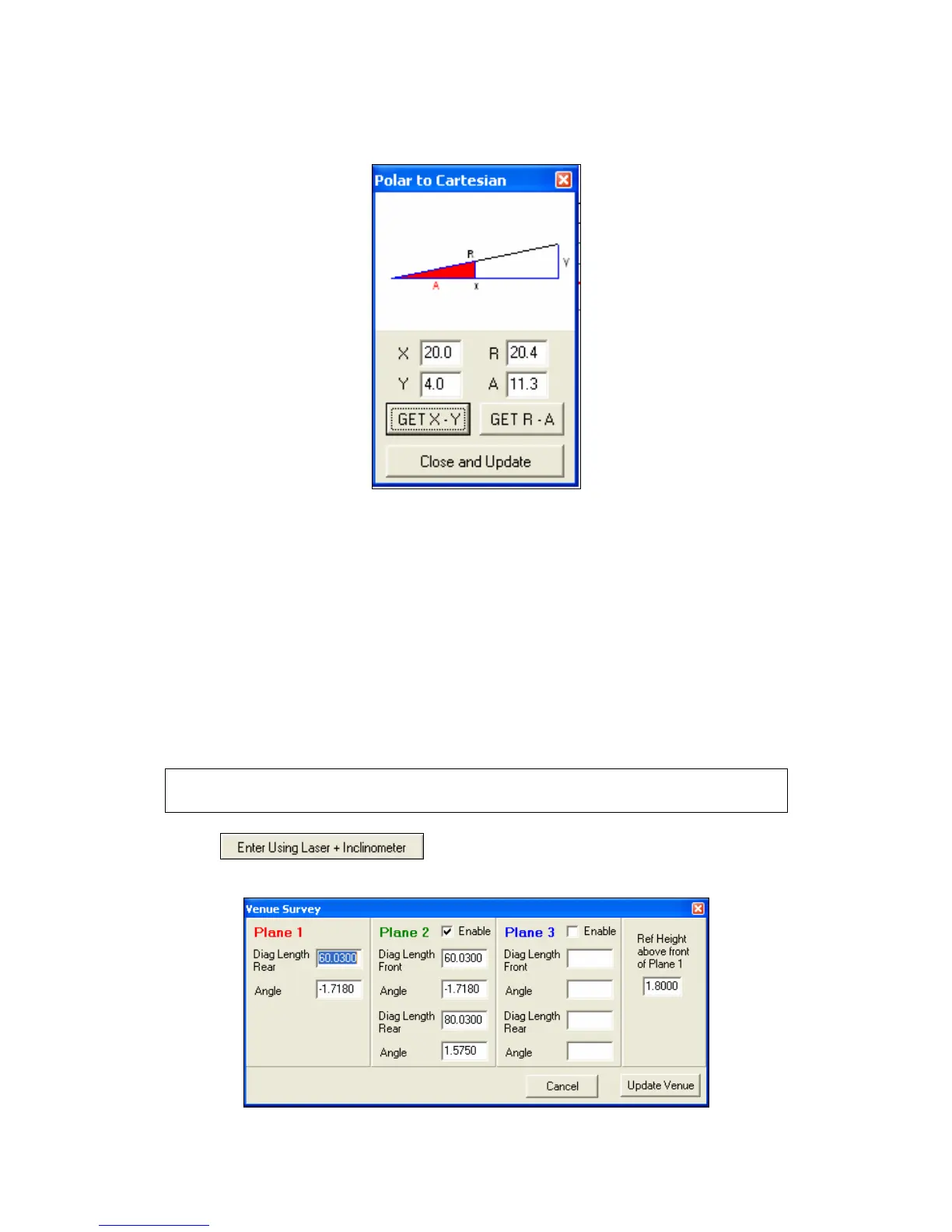

The following pop-up window will appear.
Enter R and A in the right hand boxes and click on Get X-Y.
Click on Close and Update to copy the X and Y data in to the Length and Height
boxes and close the pop-up window or click on the x symbol in the top right hand
corner of the pop-up window to close it without copying.
Note: you can also use this in reverse to calculate angles from X and Y data.
5.5.4.3 Single Point Survey
This option enables you to enter all plane data from a single reference point directly
under the intended flying point or above the stack position.
We recommend that you use a tripod to mount your laser distance measurement
device and your inclinometer since the data entered is very sensitive to small errors.
Click and a tool will appear that details the diagonal
length and angle for each plane beginning and end.
