Martin Audio WAVEFRONT COMPACT - APPLICATIONS GUIDE User Manual

Rated Power: 800W into 8 ohms, 3200W peak
Sensitivity: 104dB/W
Maximum SPL: 131dB continuous, 137dB peak
Impedance: 8 ohms nominal per driver
Connectors: 2 x Neutrik NL8, 2 x EP8
Cabinet construction: Birch Ply
Cabinet finish: Slate textured paint
Protective grille: Perforated steel
Grille finish: Grey paint

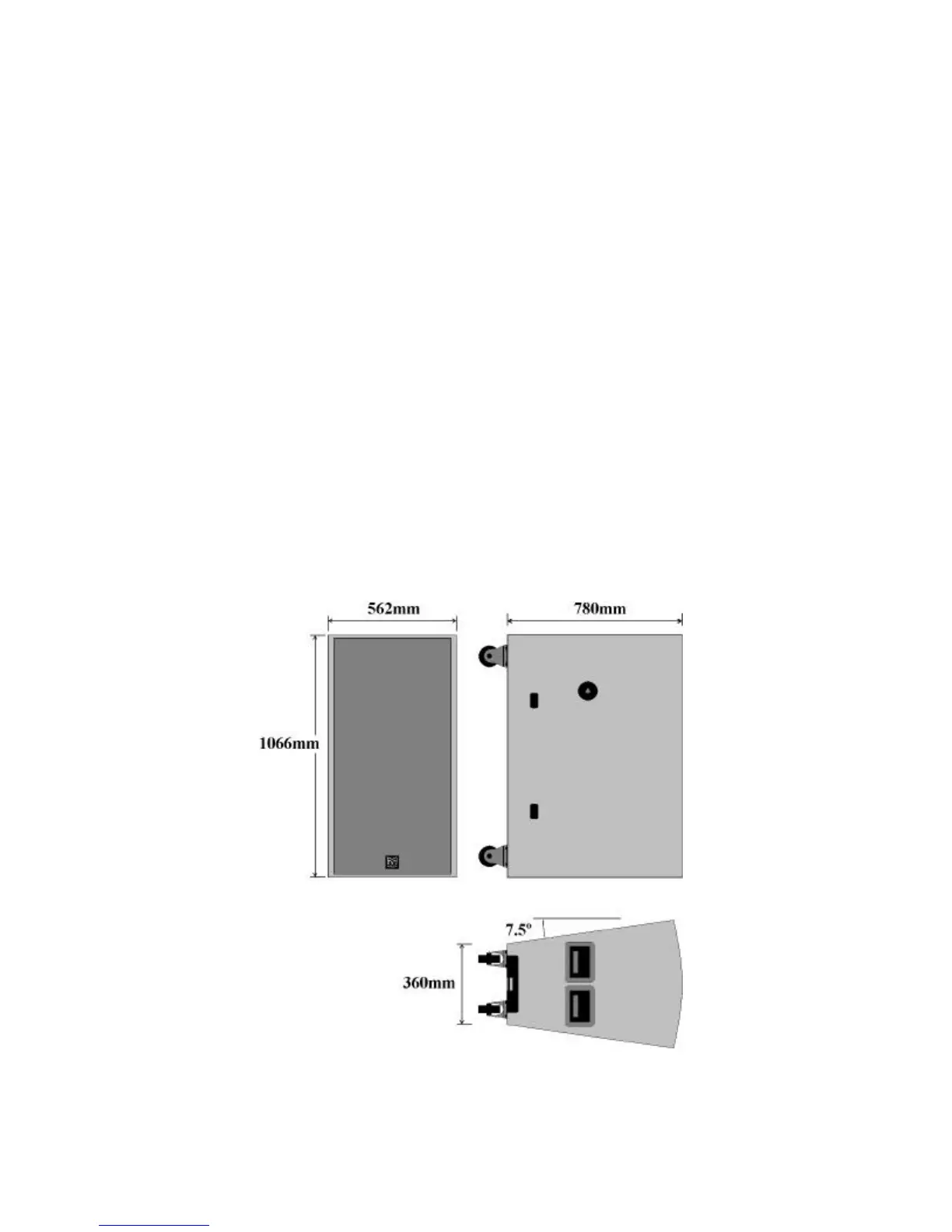

Dimensions (inc wheels): (W) 562mm x (H) 1066mm x (D) 925mm
(W) 22.1ins x (H) 42.0ins x (D) 36.4ins
Weight: 90kg (198lb)
All material © 2007. Martin Audio Ltd. Subject to change without notice.

Martin Audio WAVEFRONT COMPACT - APPLICATIONS GUIDE Specifications

General

Brand	Martin Audio
Model	WAVEFRONT COMPACT - APPLICATIONS GUIDE
Category	Speaker System
Language	English
