Martin MAC Axiom Hybrid Service Manual

Service manual
7 of 59MAC Axiom Hybrid - Revision B, 05-08-2017
Troubleshooting
Overview of error codes
PAN and PAN LOCKED
Cause Remedy
The pan motor (1) is faulty. Replace the motor.
The pan encoder (2) is faulty. Replace the encoder PCBA.
The pan motor driver on the PCBA for pan-
tilt (3) is faulty.
Replace the driver PCBA and update the
software.
The wiring connection (4) between the pan
encoder and the PCBA for pan-tilt is faulty.
Replace the wire set.

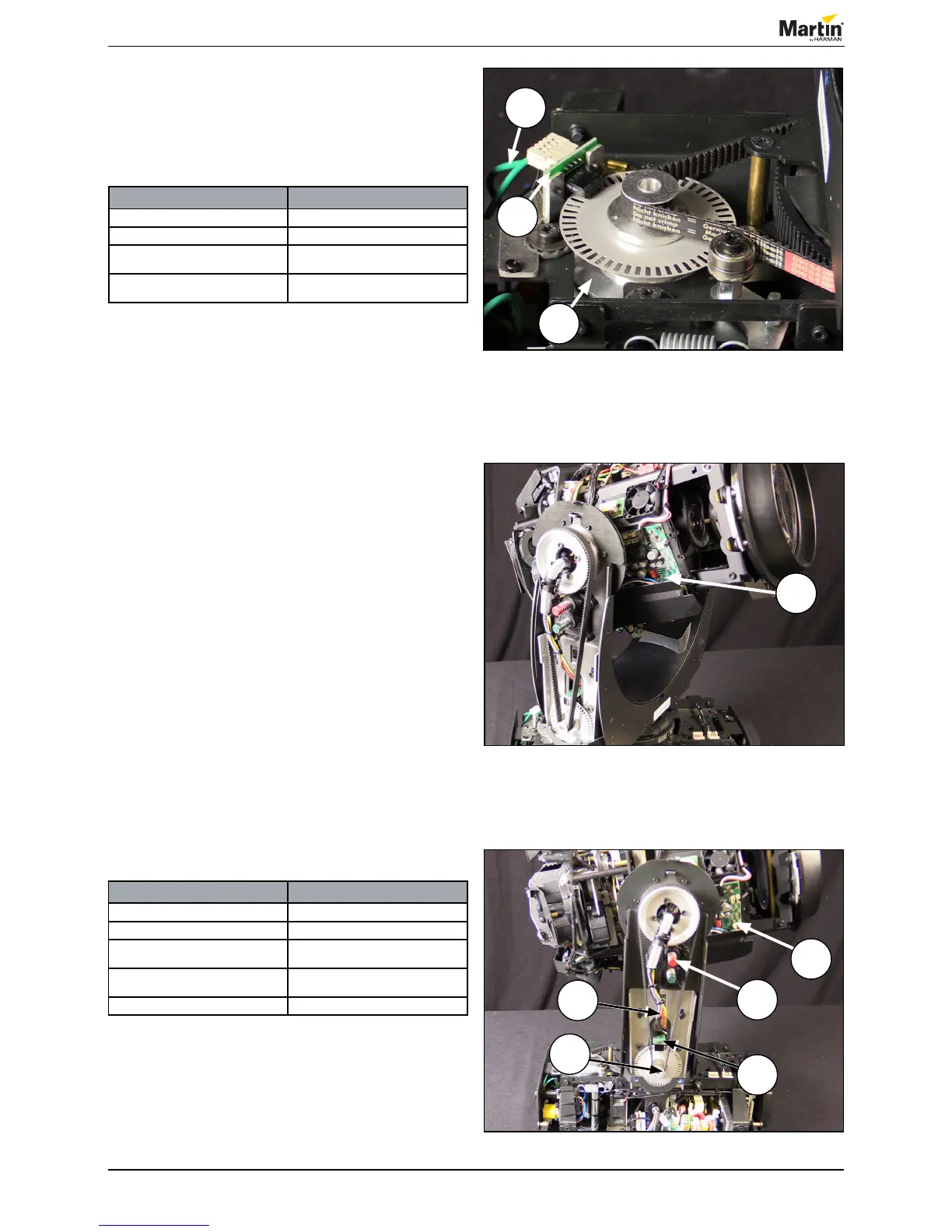

Figure 10: PAN and PAN LOCKED
Figure 11: PAN and PAN LOCKED
Figure 12: TILT and TILT LOCKED
TILT and TILT LOCKED
Cause Remedy
The tilt motor (1) is faulty. Replace the motor.
The tilt encoder (2) is faulty. Replace the encoder PCBA.
The tilt motor driver on the PCBA (3) for
pan-tilt is faulty.
Replace the driver PCBA and update the
software.
The wiring connection (4) between the tilt
encoder and the PCBA for pan-tilt is faulty.
Replace the wire set.
The tilt function (5) is locked Unlock the tilt function
5
3
3
1
2
4
1
2
4

Martin MAC Axiom Hybrid Specifications

General

Pan Range	540°
Tilt Range	270°
Type	Moving Head
Control Protocol	DMX
Gobo Wheels	2
Effects	Animation Wheel, Prism
Voltage	100-240V AC, 50/60Hz
