Martin MAC Quantum Profile User Manual

Optical configuration 7
Optical configuration
Prism
The MAC Quantum Profile is supplied with an interchangeable three-facet rotating prism installed.
Color wheel
The MAC Quantum Profile color wheel has six interchangeable dichroic filters and an open position
(illustration shows color wheel viewed from front of head):
As standard, the MAC Quantum Profile is supplied with the following color filters installed:
• Slot 1 - Blue 101 SP - P/N 46404801
• Slot 2 - Green 203 SP - P/N 46404802
• Slot 3 - CTC LED 6800-3200 K SP - P/N 46404803
• Slot 4 - Magenta 522 SP - P/N 46404804
• Slot 5 - Congo Blue 108 SP - P/N 46404805
• Slot 6 - Red 310 SP - P/N 46404806

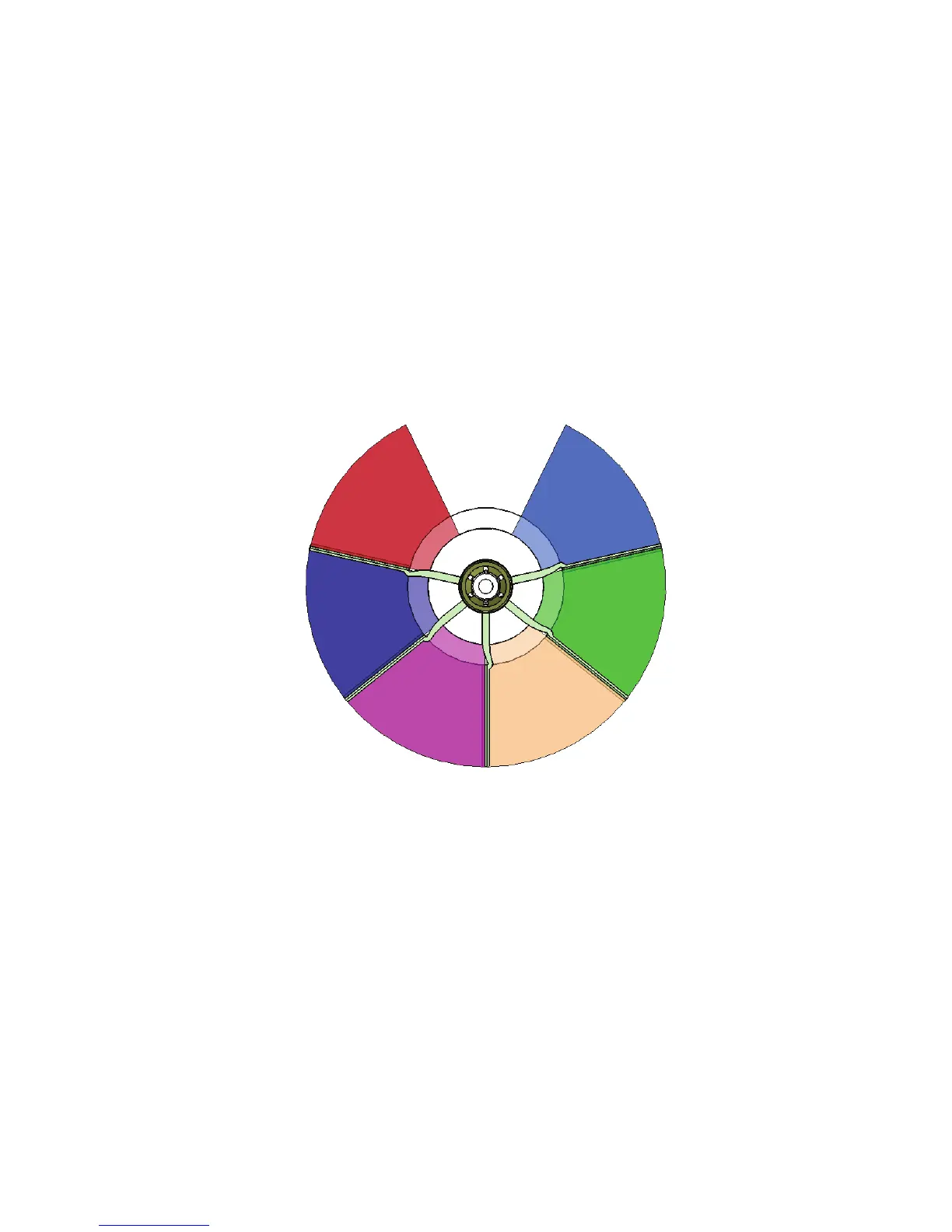

Slot 1 - Blue 101 SPSlot 6 - Red 310 SP
Slot 2 - Green 203 SP
Open
Slot 3 - CTC LED 6800-3200 K SPSlot 4 - Magenta 522 SP
Slot 5- Congo Blue 108 SP
Figure 1: MAC Quantum Profile color wheel
