Martin MAC Quantum Profile User Manual

Optical configuration 9
Rotating gobos
The standard gobos that are supplied installed in the fixture are shown in the correct order in Figure 4.
All gobos are interchangeable, but replacement gobos must match the dimensions, construction and quality
of the gobos supplied as standard. The gobos are 27.9 mm external diameter, 24 mm image area diameter.
Limbo is a textured glass gobo that is glued permanently into its holder. If you replace Limbo, you will
therefore need to order an additional goboholder to accept the new gobo.
Handling, installing and storing the gobos requires special care. See the MAC Quantum Profile Safety and
Installation Guide for details.
4
3
1
1
0
0
0
5
-
B
G
o
b
o
,
S
p
i
d
e
y
,
D
2
7
.
9
/
d
2
4
,
h
m
g
l
a
s
s
4
3
1
1
0
0
1
3
-
A
G
o
b
o
,
W
i
n
d
M
y
M
i
l
l
,
D
2
7
.
9
/
d
2
4
,
h
m
g
l
a
s
s
4
3
1
1
0
0
0
3
-
A
G
o
b
o
,
W
h
i
r
l
p
o
o
l
,
D
2
7
.
9
/
d
2
4
,
h
m
g
l
a
s
s
4
3
1
1
0
0
0
4
-
A
G
o
b
o
,
T
o
B
o
l
d
l
y
G
o
,
D
2
7
.
9
/
d
2
4
,
h
m
g
l
a
s
s

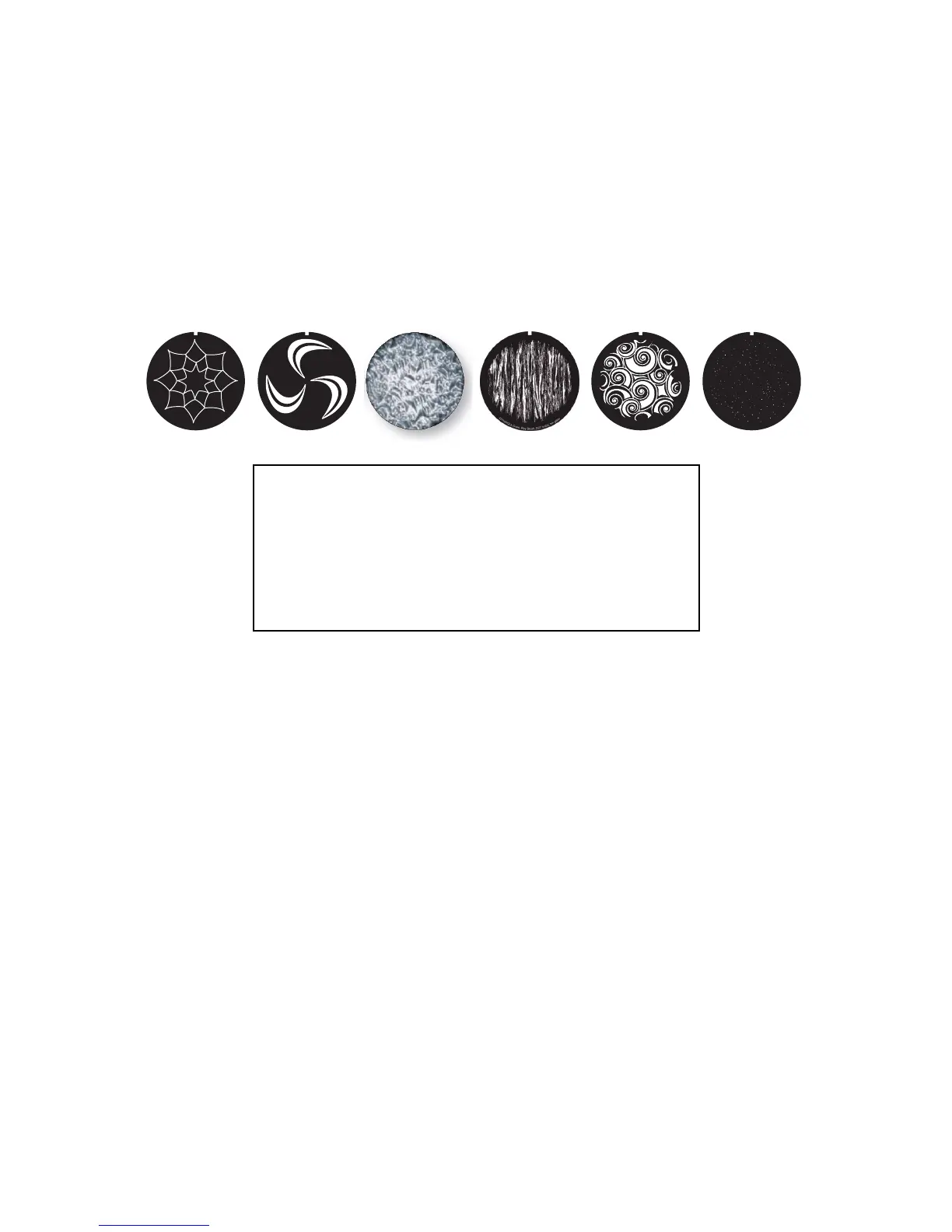

Figure 4: MAC Quantum Profile Rotating gobos
Rotating gobos
1. Spidey, D27.9/d24, hm glass..................................P/N 43110005
2. Wind My Mill, D27.9/d24, hm glass ........................P/N 43110013
3. Limbo, D27.6, tex. glass, glued in holder .............. P/N 62327298
4. Ray Brush, D27.9/d24, hm glass............................P/N 43110002
5. Whirlpool, D27.9/d24, hm glass .............................P/N 43110003
6. To Boldly Go, D27.9/d24, hm glass ........................P/N 43110004
123456
