10 The maxium Beamer
10.1 Start-Up

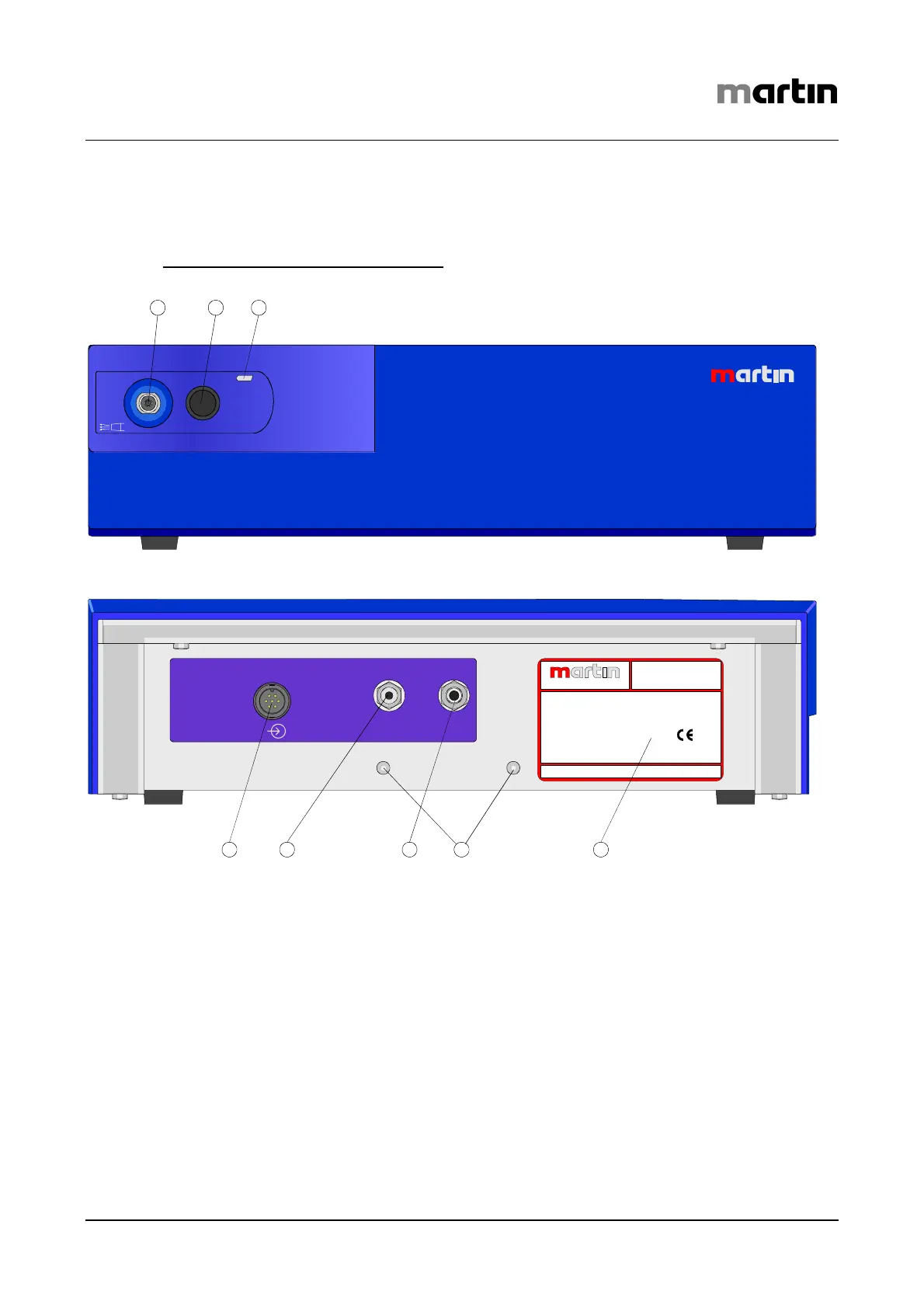

10.1.1 Controls, Indicators and Connections
1 Gas outlet, Luer-lock connector for applicator
2 PURGE button for applicator irrigation with argon gas
3 Operating status indicator
4 Connector for connection to maxium unit
5 Decompression pin
6 Argon gas supply connector
7 Thread connector for fixed mounting
8 Rating plate
